SRT-415 Oil Sump Casting

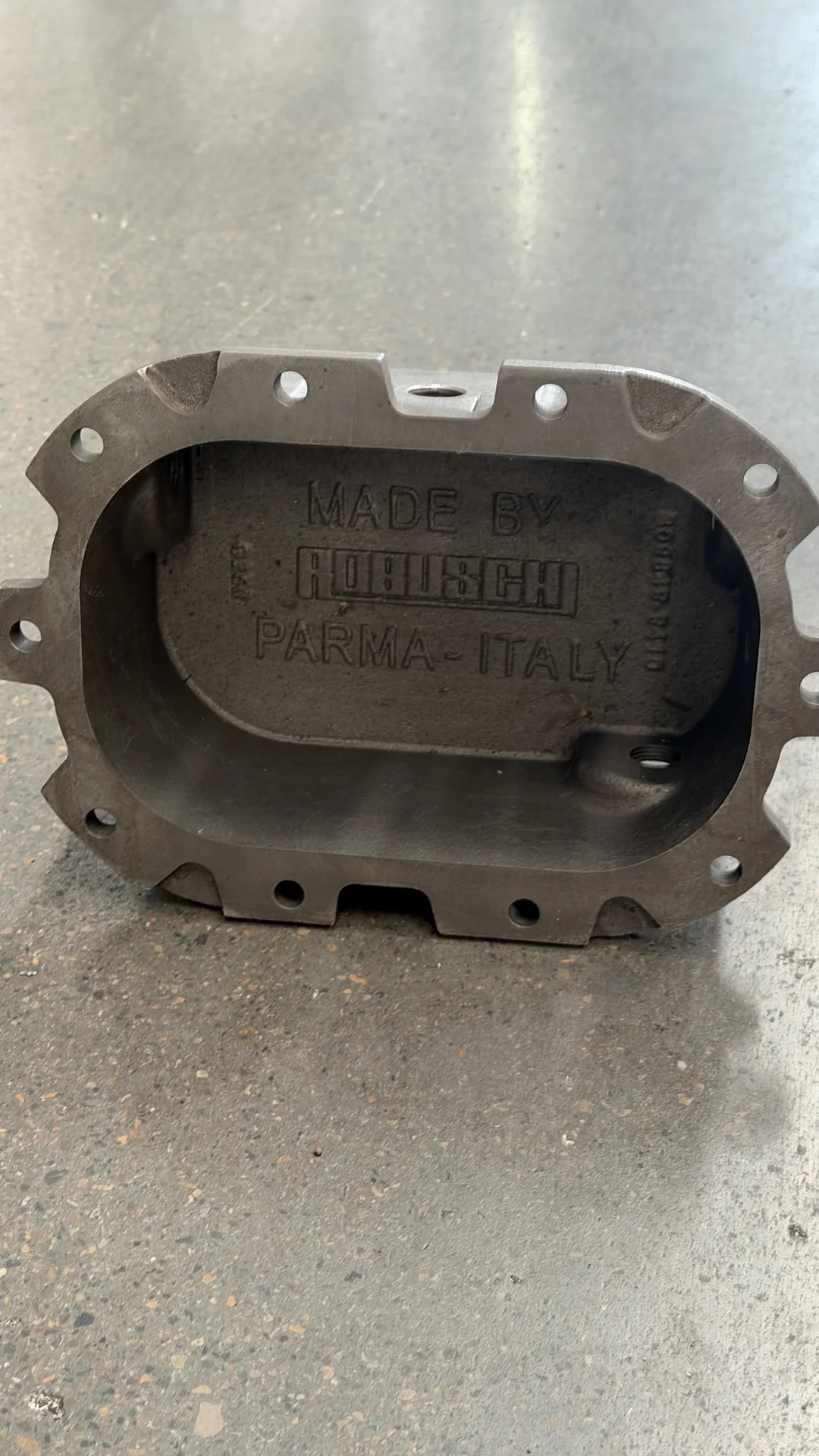

Actual SRT-415 oil sump casting photographs showing the ribbed exterior, internal oil cavity, perimeter mounting holes, sealing flange and threaded connection. Custom made to drawing.
| Material | Confirmed during technical review |
|---|---|
| Process | Casting and machining scope to customer drawing |
| Specification | Customer drawing and agreed revision |
| Delivery condition | Casting / machining scope subject to review |
Have a similar part? Share your drawing for assessment.
From external ribs to the internal oil cavity and sealing flange.

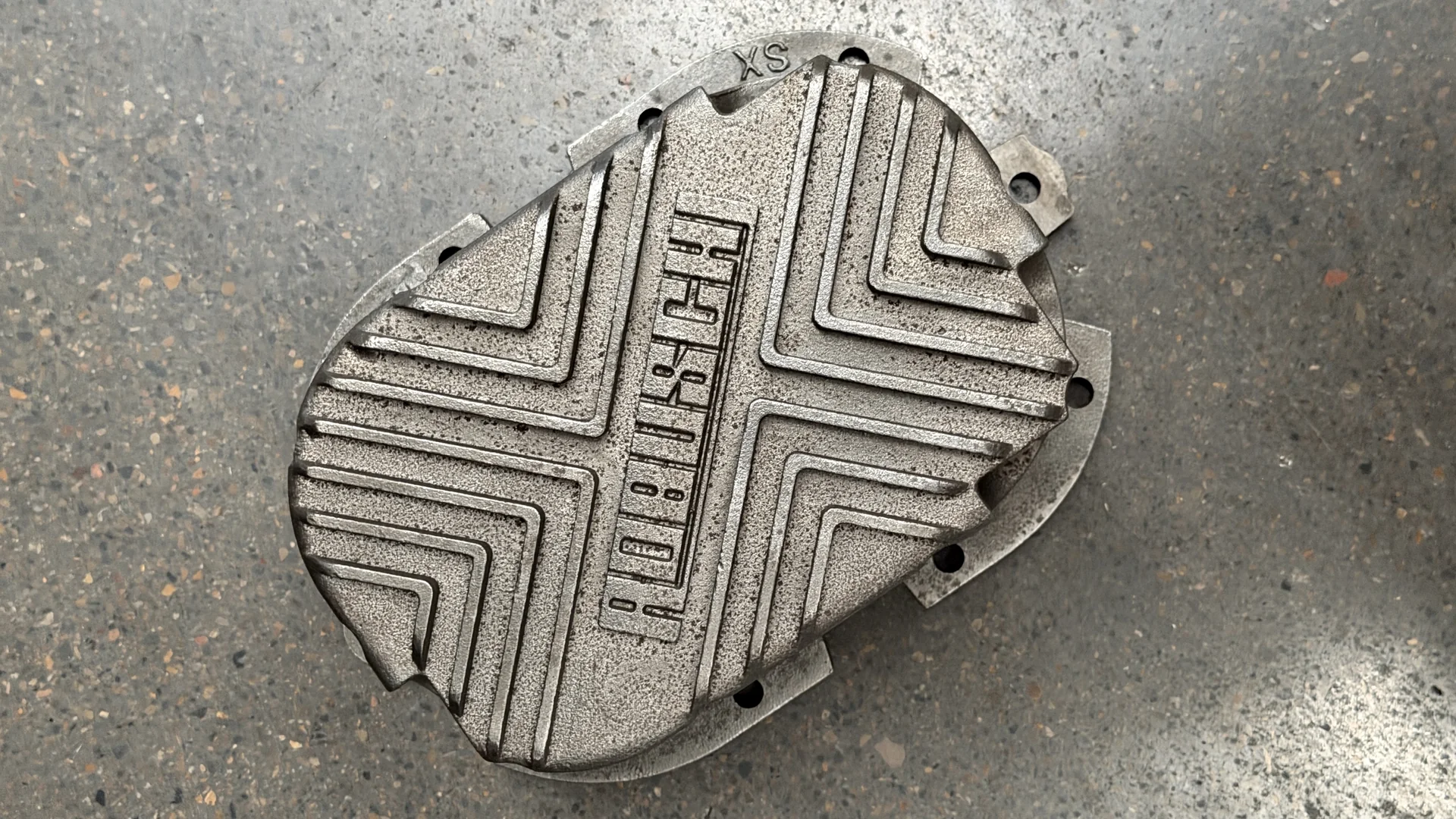

These photographs show the SRT-415 oil sump exterior ribs, internal oil cavity, perimeter mounting holes, sealing flange and threaded connection. Customer-specific cast markings belong to the representative part shown; material, dimensions, identification and inspection requirements for new projects are defined through drawing review.
Define the part.
Agree the details.

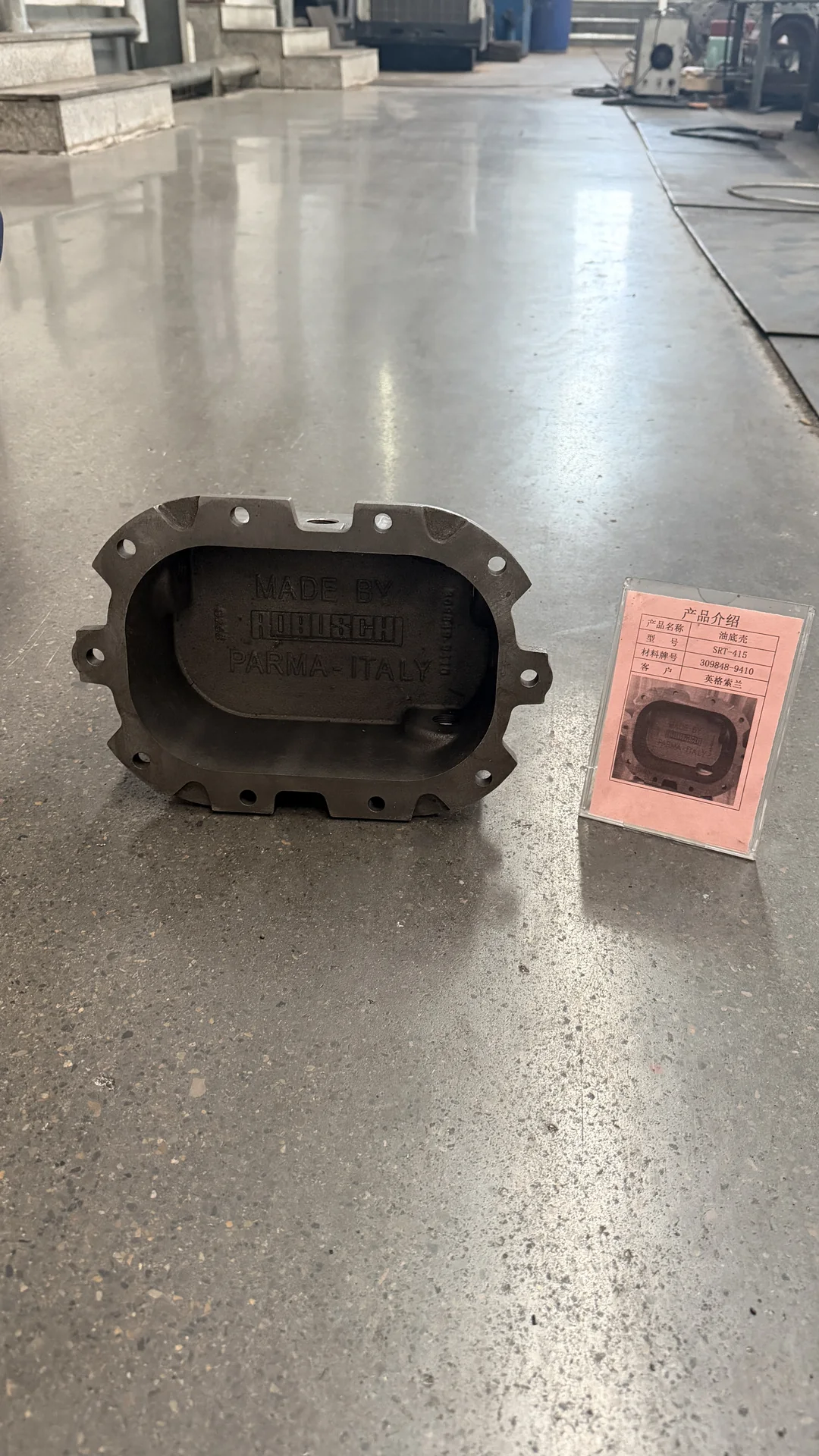

These production photographs document a representative SRT-415 oil sump casting. Visible features include the ribbed exterior, internal oil cavity, perimeter mounting pattern, sealing flange and threaded connection. Customer-specific cast markings belong to the illustrated reference component.
For a new project, Anxin reviews the customer drawing, material standard, oil-retention and sealing requirements, machining datums, flange flatness, surface finish, leak-test scope, cleanliness and annual demand.
Material grade, casting process and delivery condition are confirmed through technical review. The photographs do not indicate stock availability, authorization to reproduce another party's markings, or interchangeability with another manufacturer's components.
Prepare your casting RFQ ↗
