Compressor housings

Gray iron housings for compressor assemblies, produced to customer drawings.

Reference component details
Material	HT250
Reference casting weight	131.84 kg
Process	Sand-coated iron mold casting
Specification	Customer drawing and agreed revision
Delivery condition	Casting / machining scope subject to review

Enquire about this component ↗

Have a similar part? Share your drawing for assessment.

ACTUAL PRODUCT PHOTOS

From the exterior to critical machined surfaces.

These photographs show the exterior, end faces, twin bores and machined connection details of this HT250 housing. Select any image for a closer view.

Compressor housings — actual product detail 1

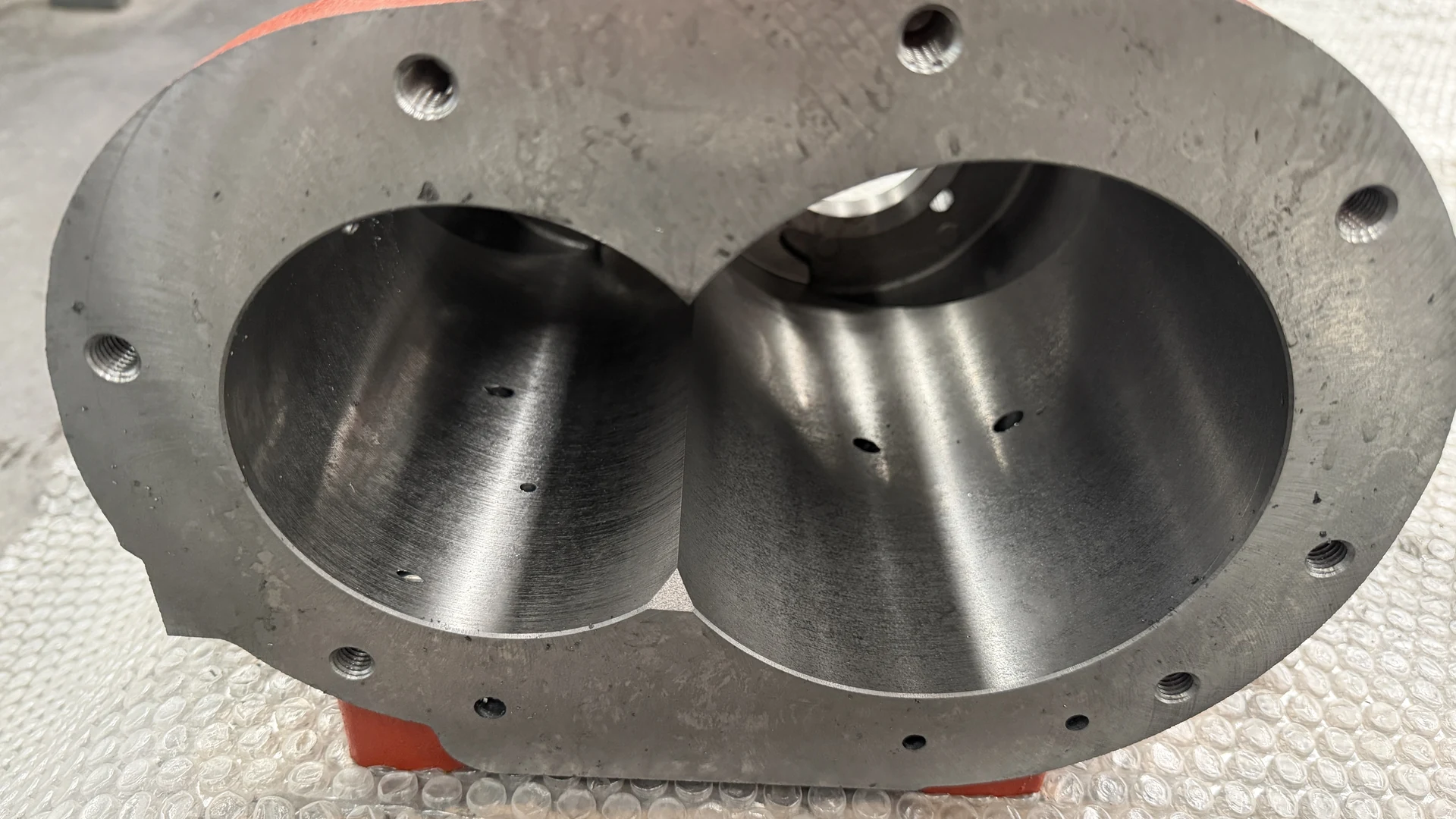

Compressor housings — actual product detail 2

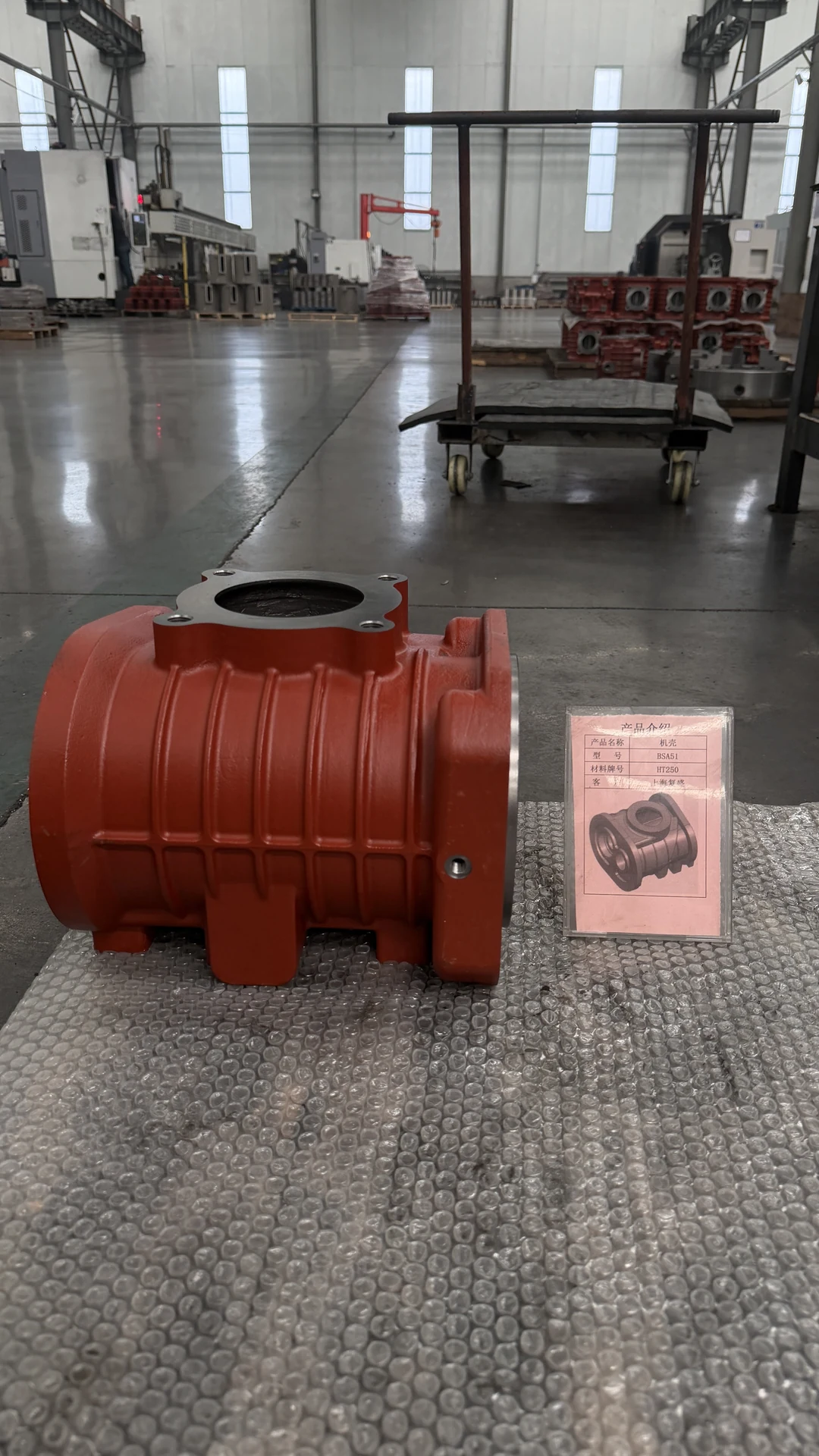

Compressor housings — actual product detail 3

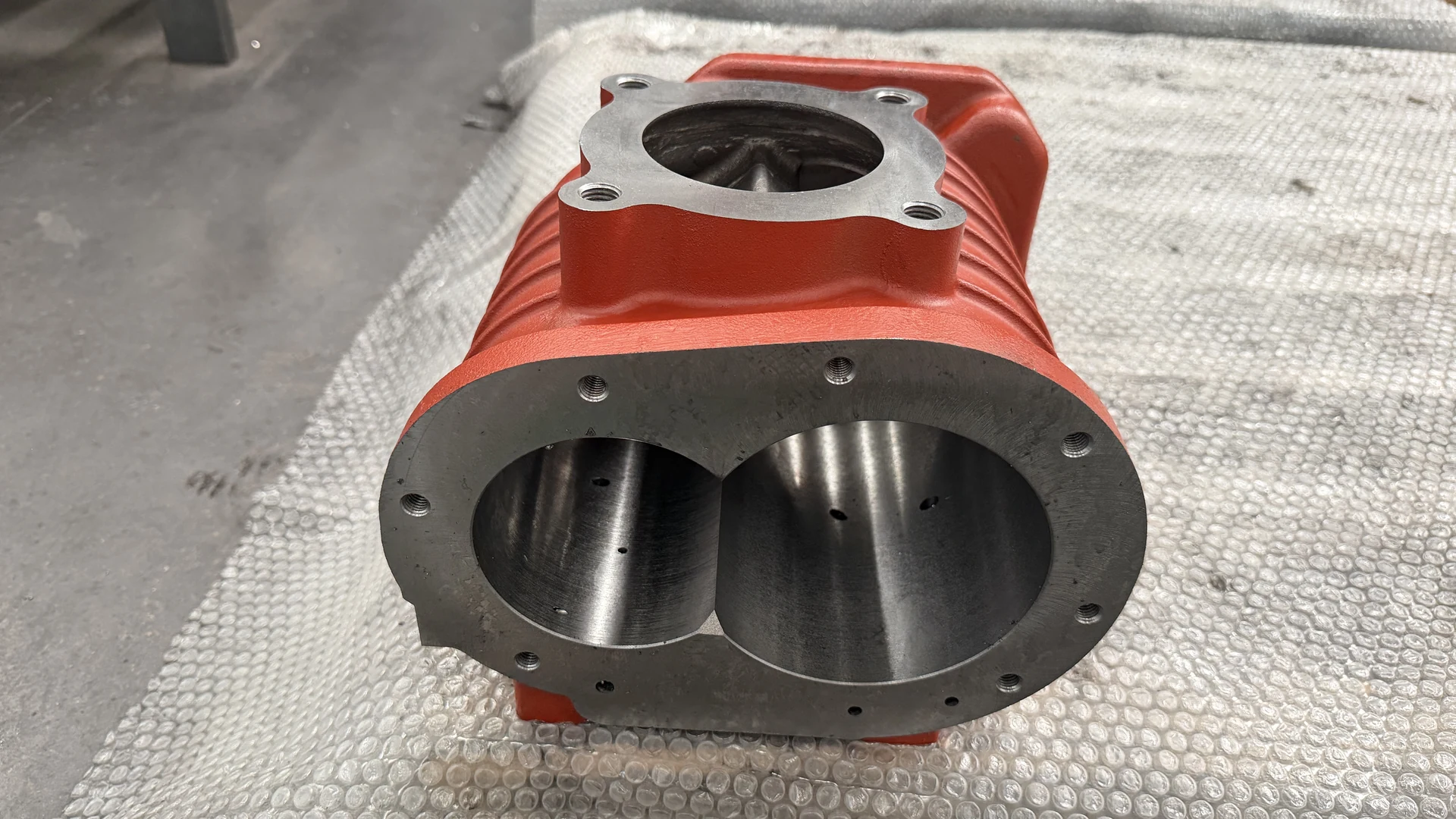

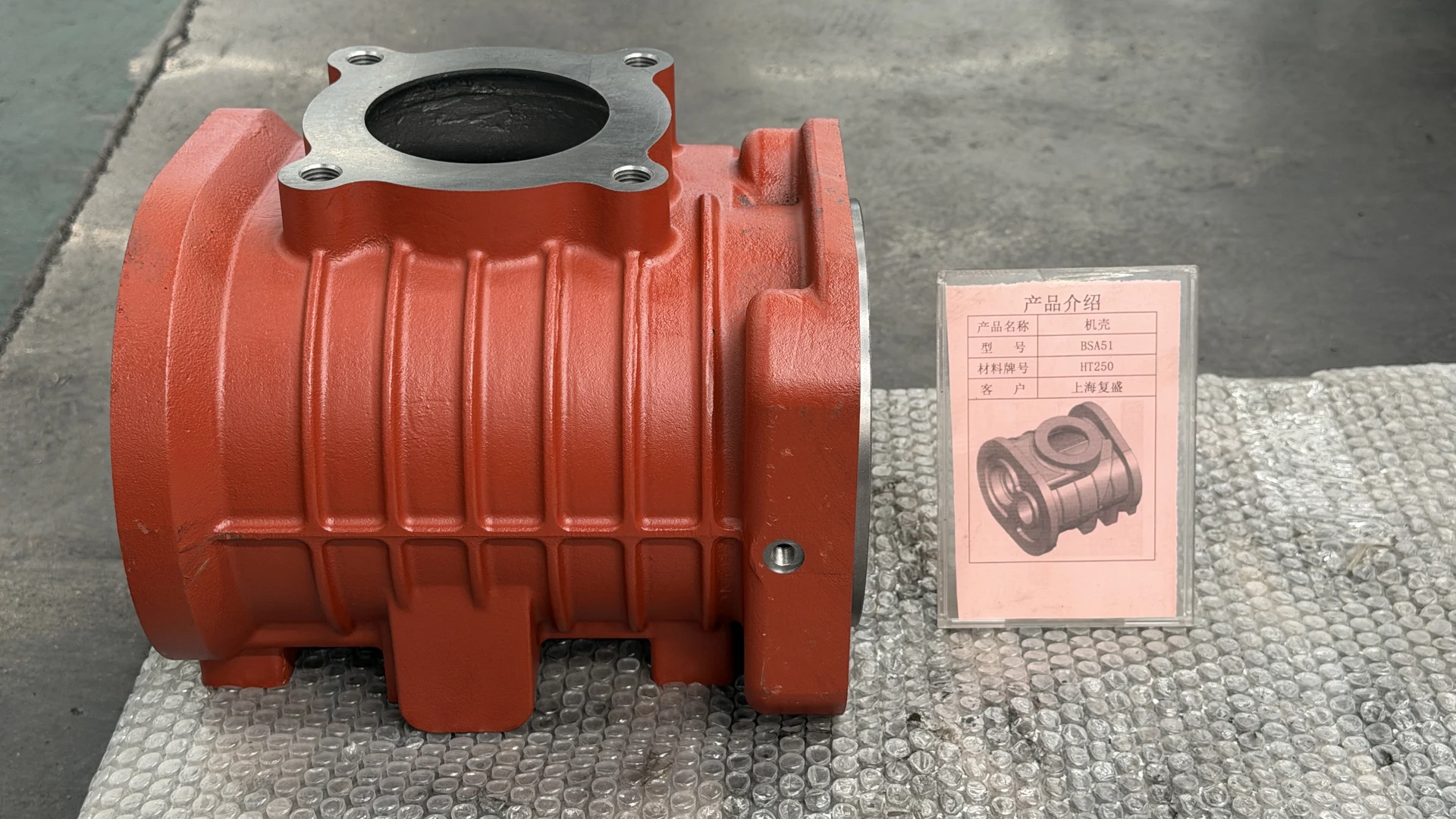

Compressor housings — actual product detail 4

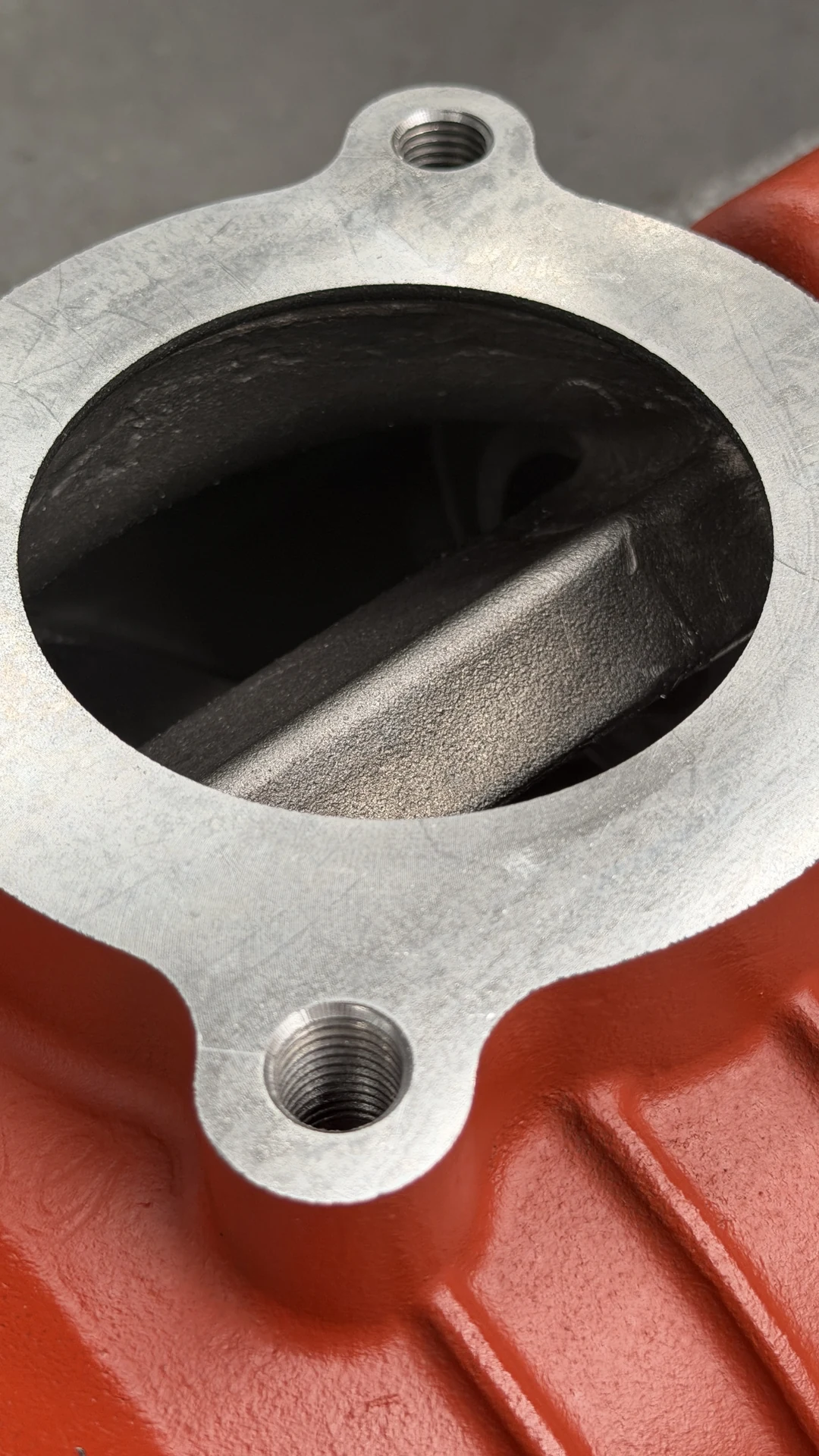

Compressor housings — actual product detail 5

Compressor housings — actual product detail 6

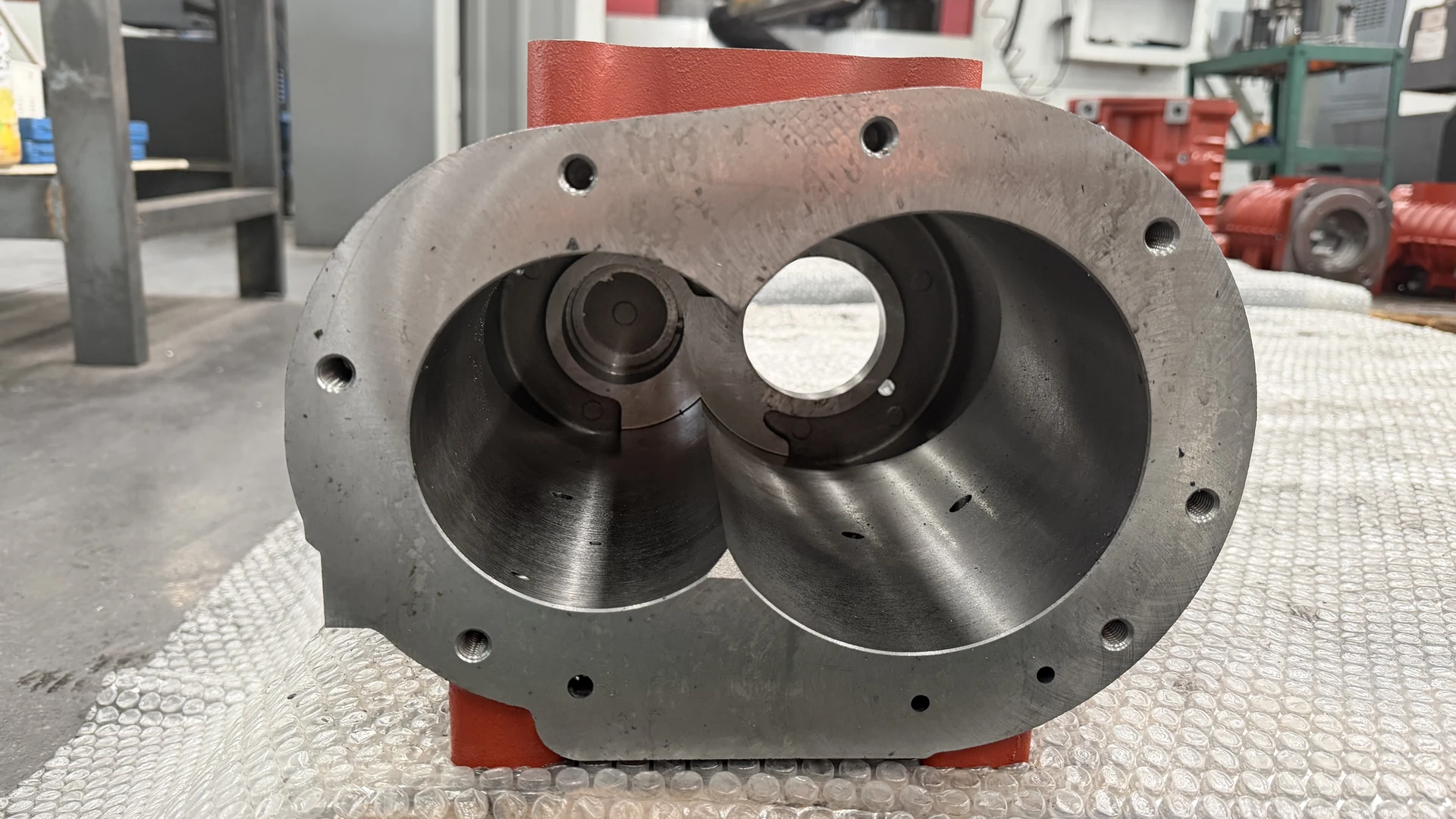

Compressor housings — actual product detail 7

AS-CAST & PRE-MACHINING PHOTOS

See the housing from as-cast condition to machining preparation.

These photographs show black HT250 as-cast housings, cast surfaces and internal geometry, together with parts from the same batch during machining preparation and intermediate machining. Final machining and delivery scope are defined after drawing review.

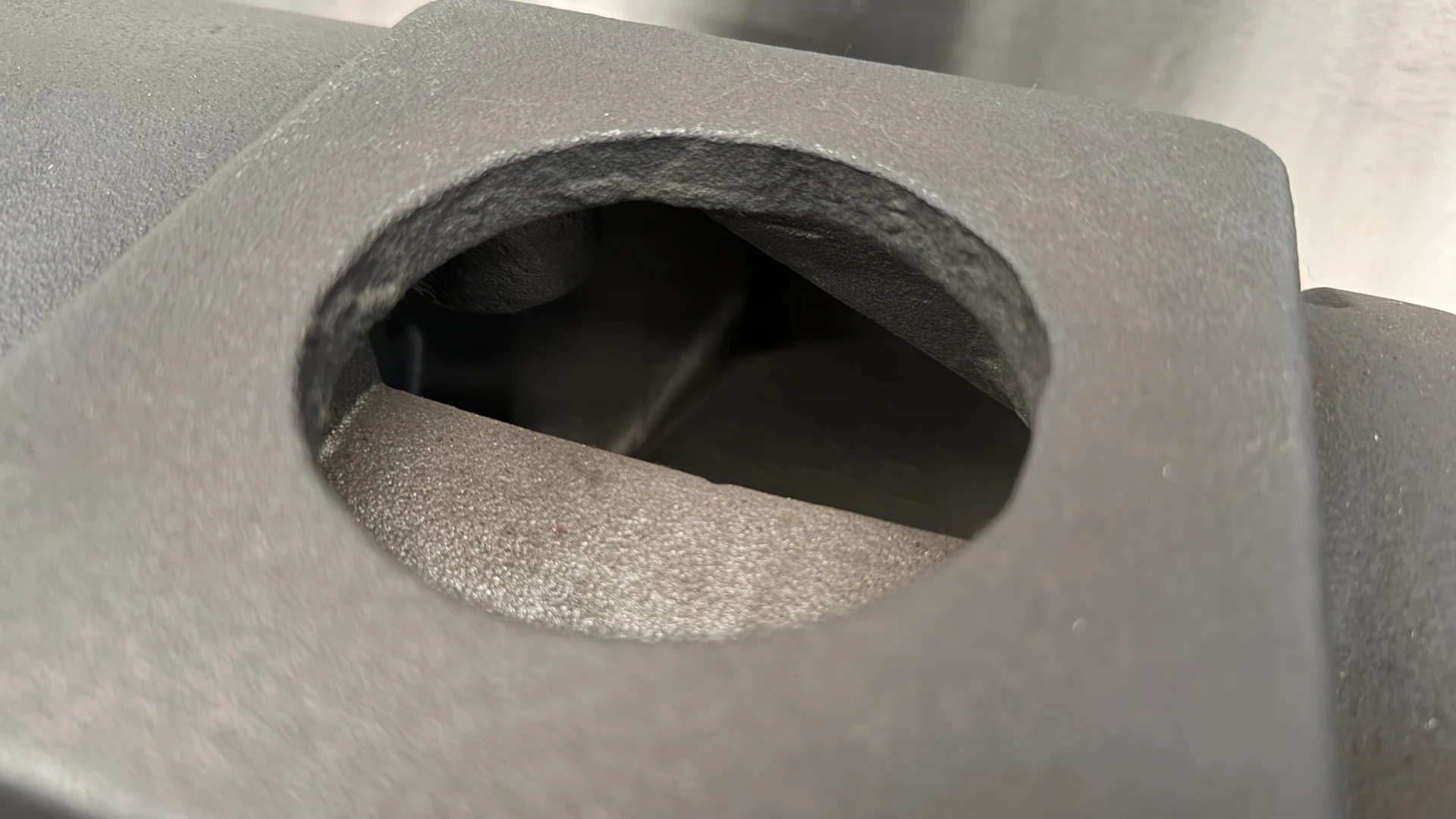

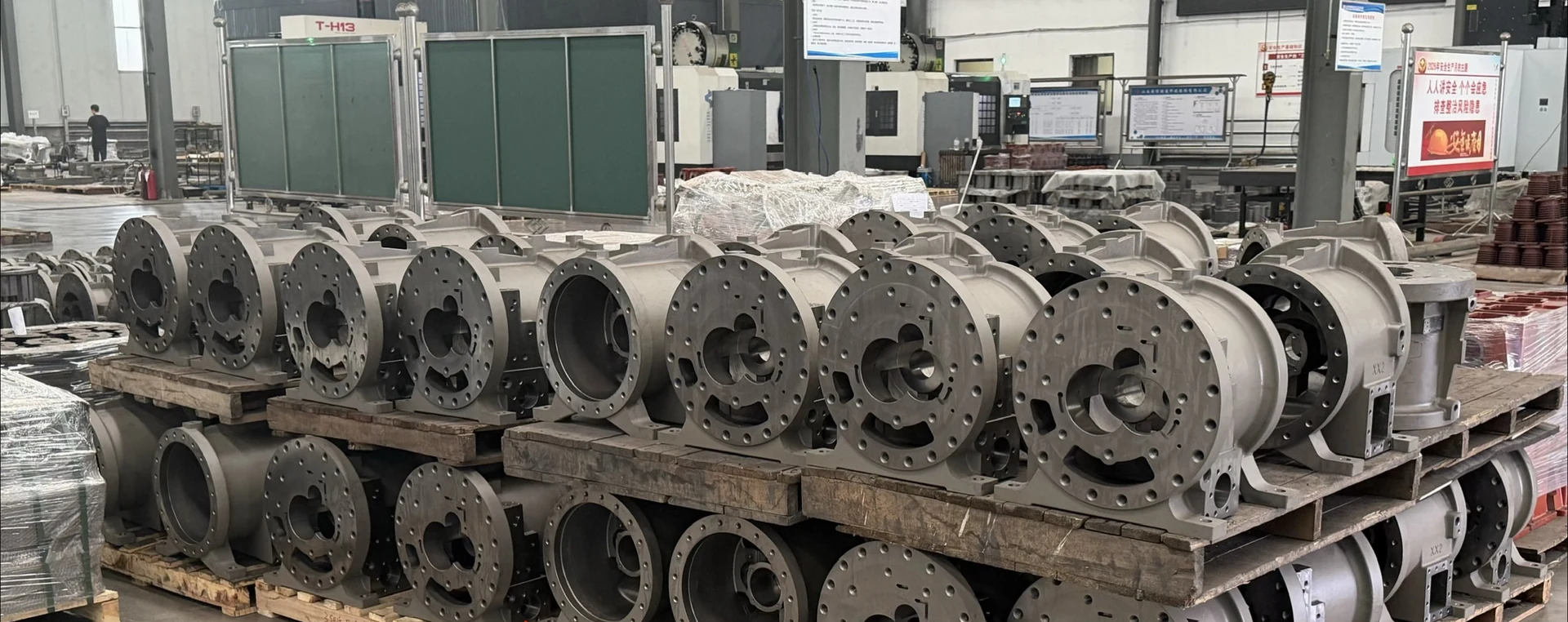

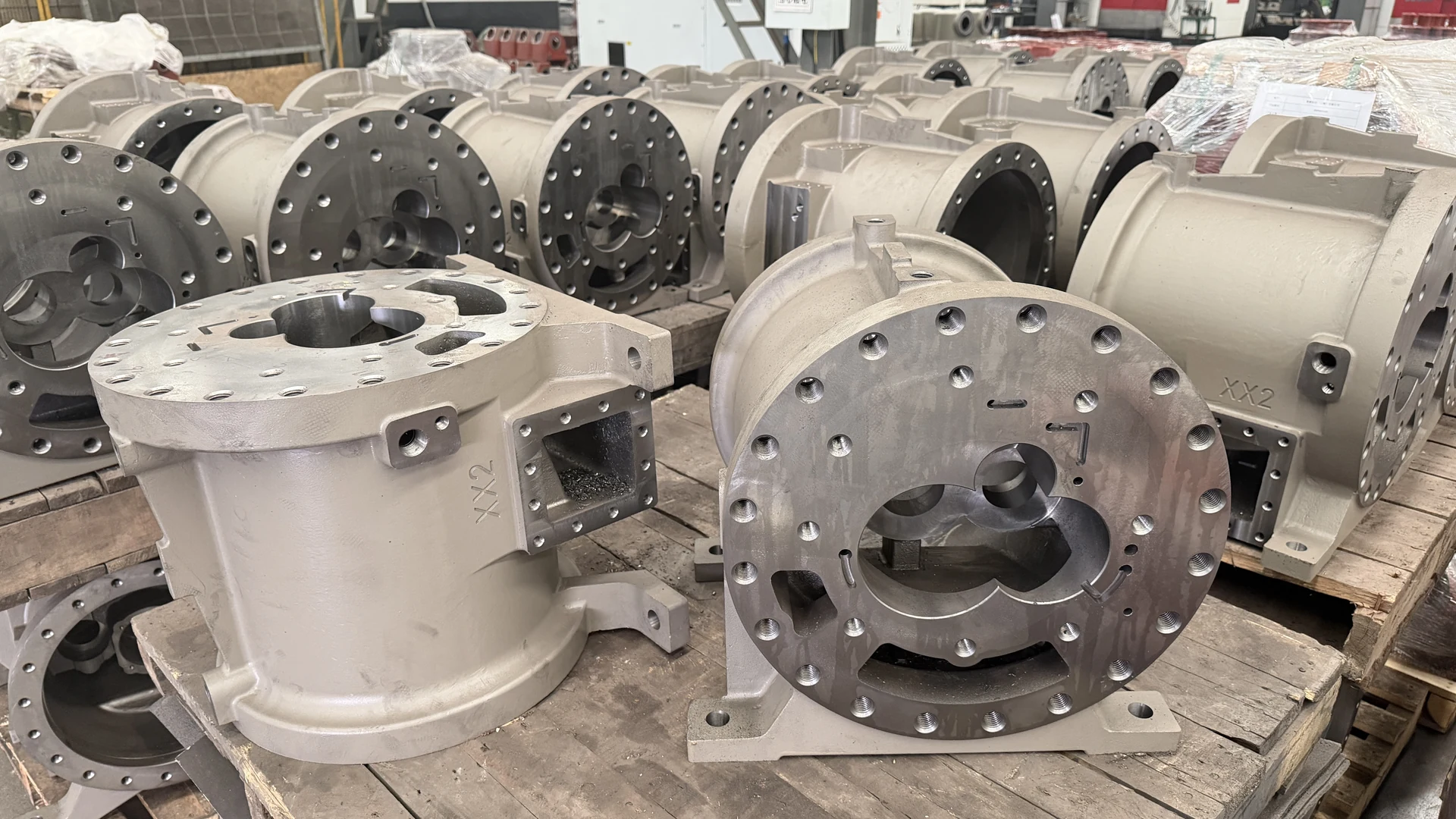

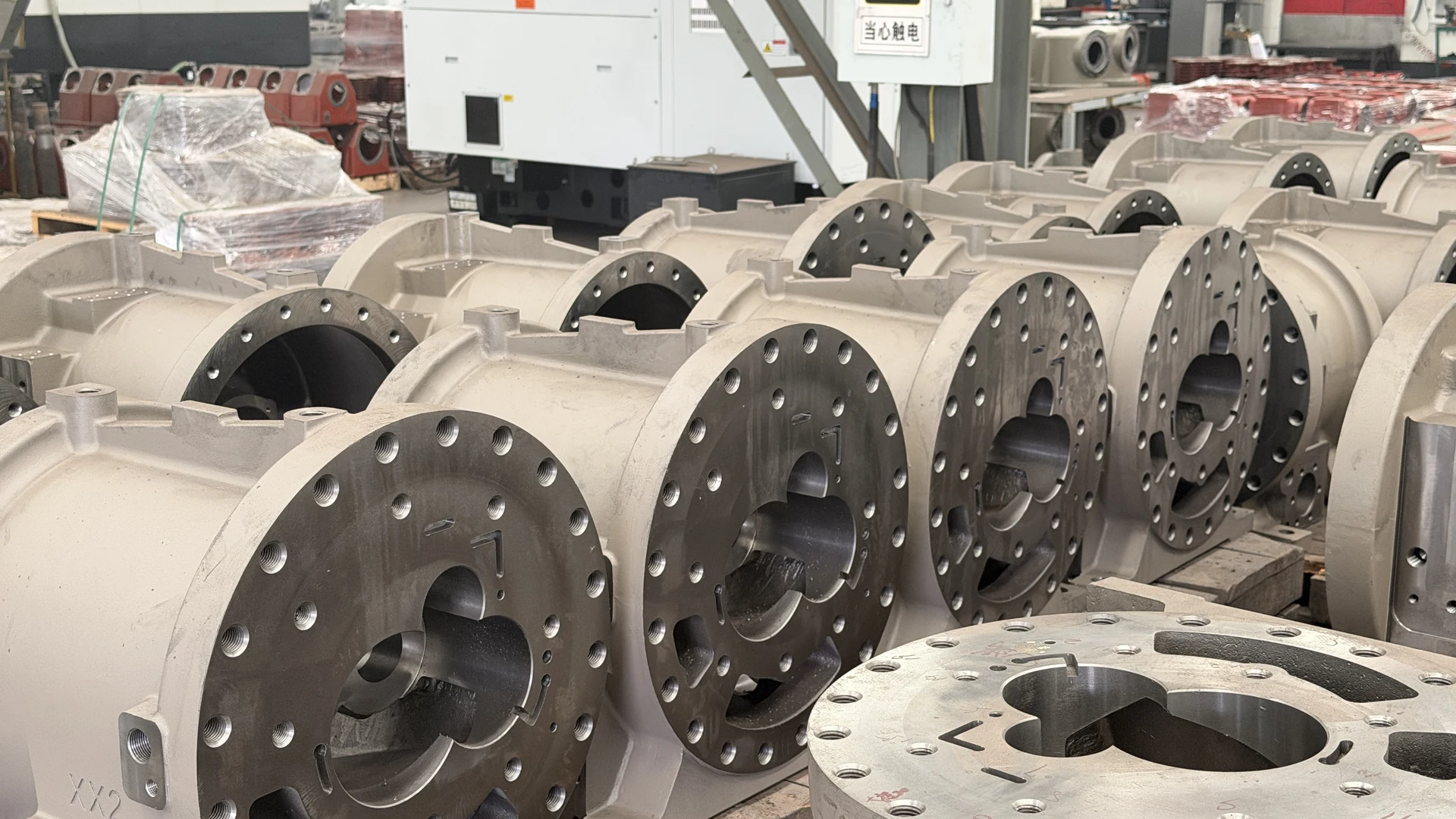

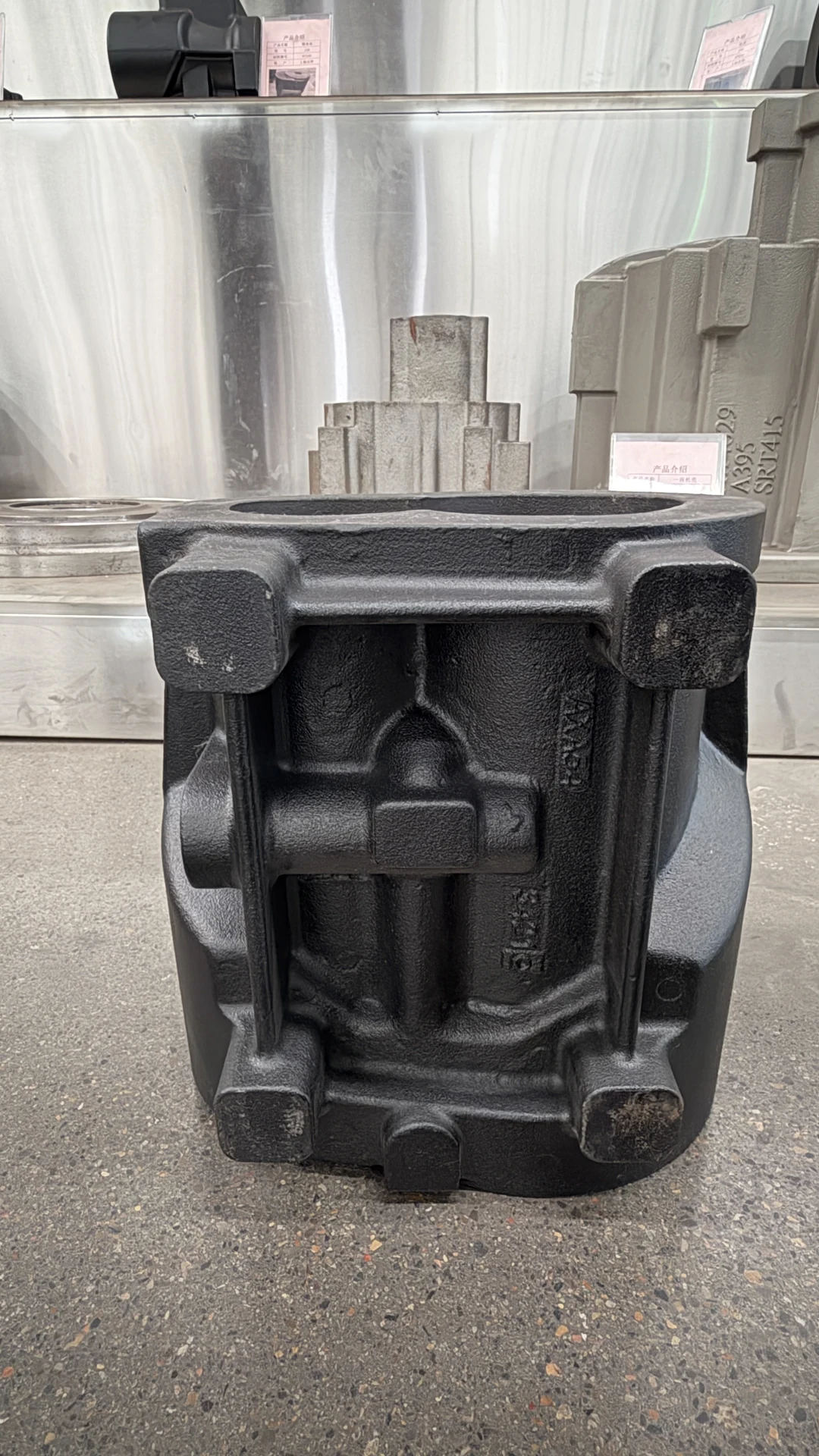

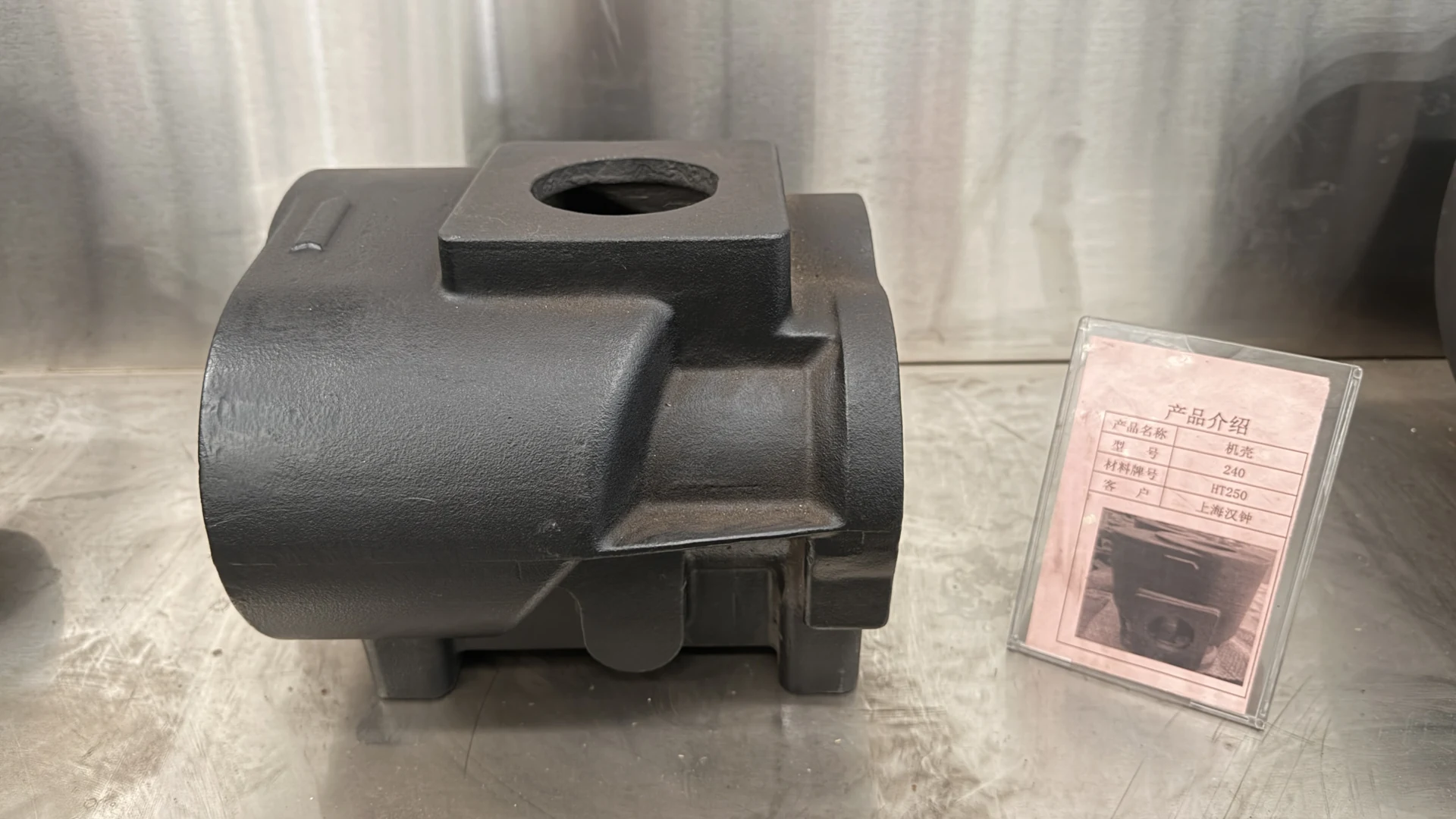

Compressor housings — as-cast and machining preparation photo 1

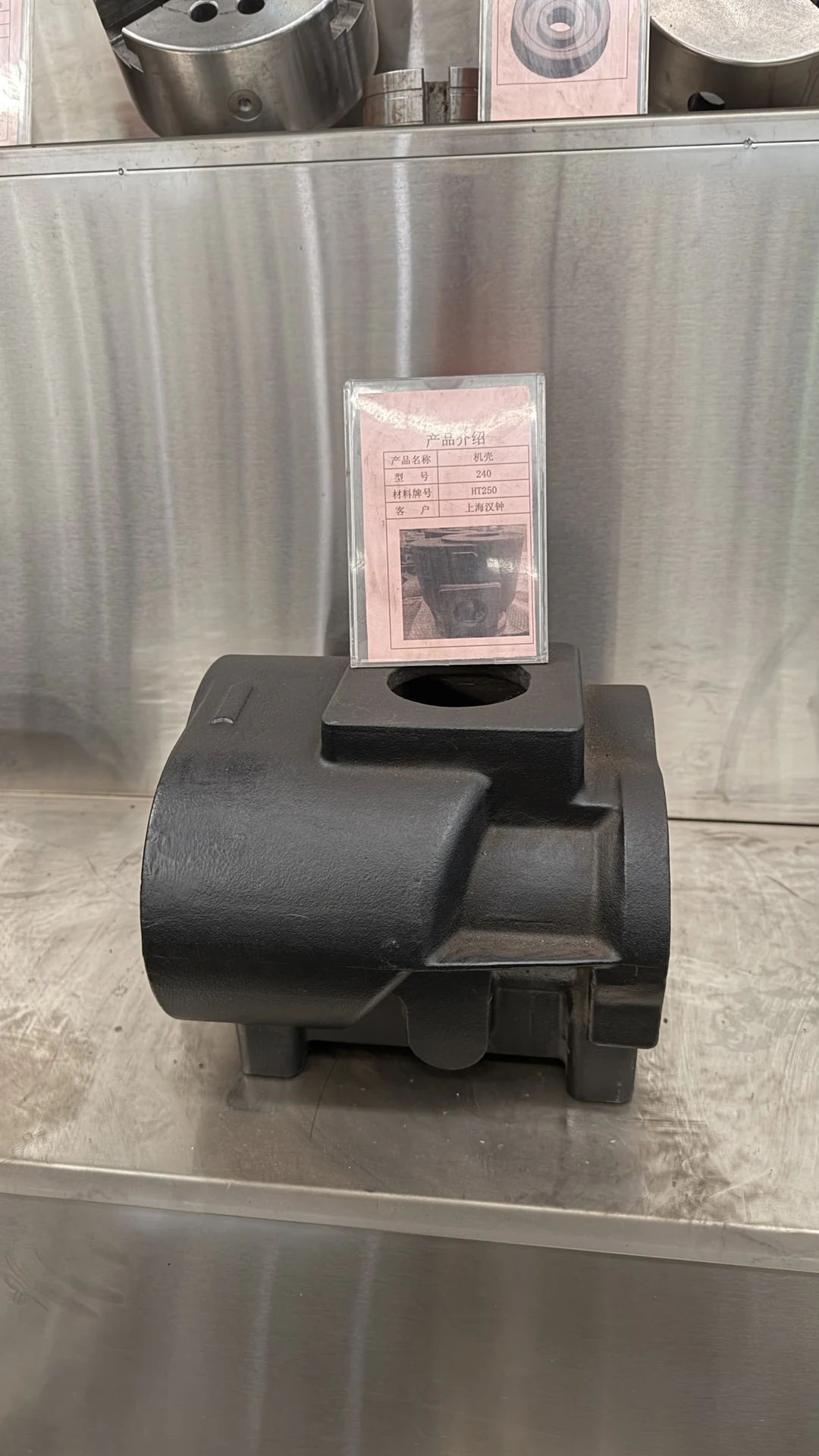

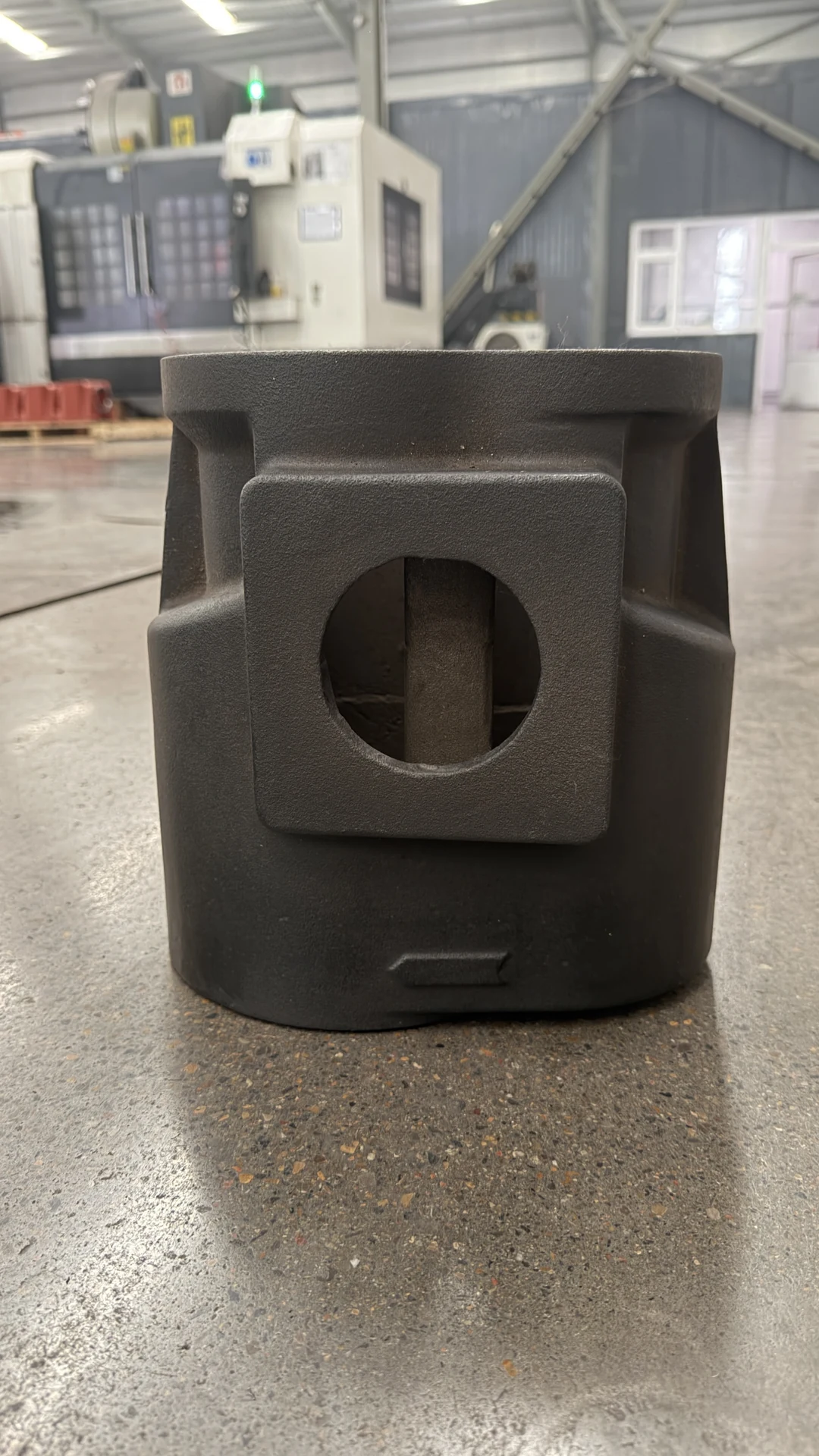

Compressor housings — as-cast and machining preparation photo 2

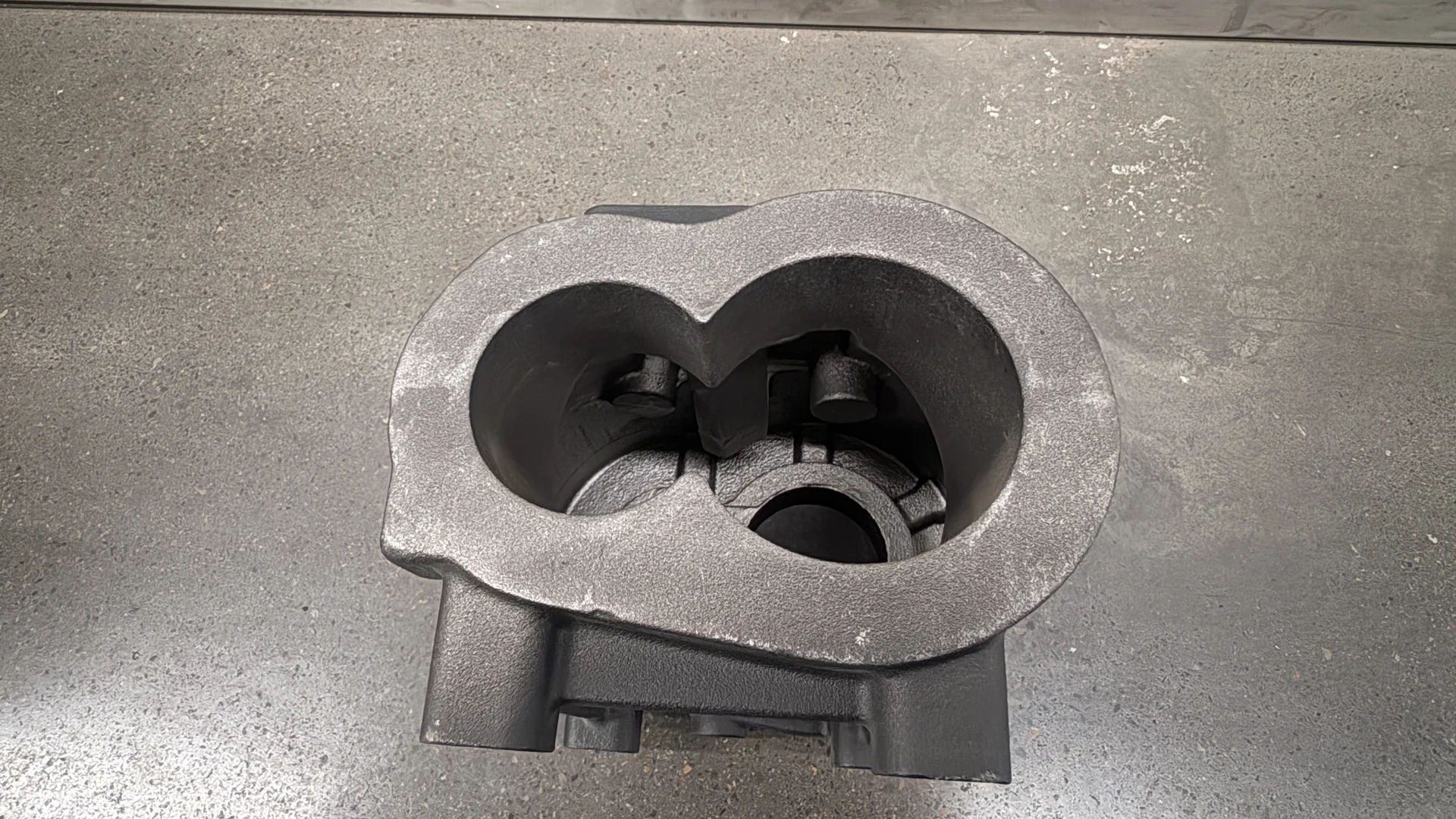

Compressor housings — as-cast and machining preparation photo 3

Compressor housings — as-cast and machining preparation photo 4

Compressor housings — as-cast and machining preparation photo 5

Compressor housings — as-cast and machining preparation photo 6

Compressor housings — as-cast and machining preparation photo 7

Compressor housings — as-cast and machining preparation photo 8

Compressor housings — as-cast and machining preparation photo 9

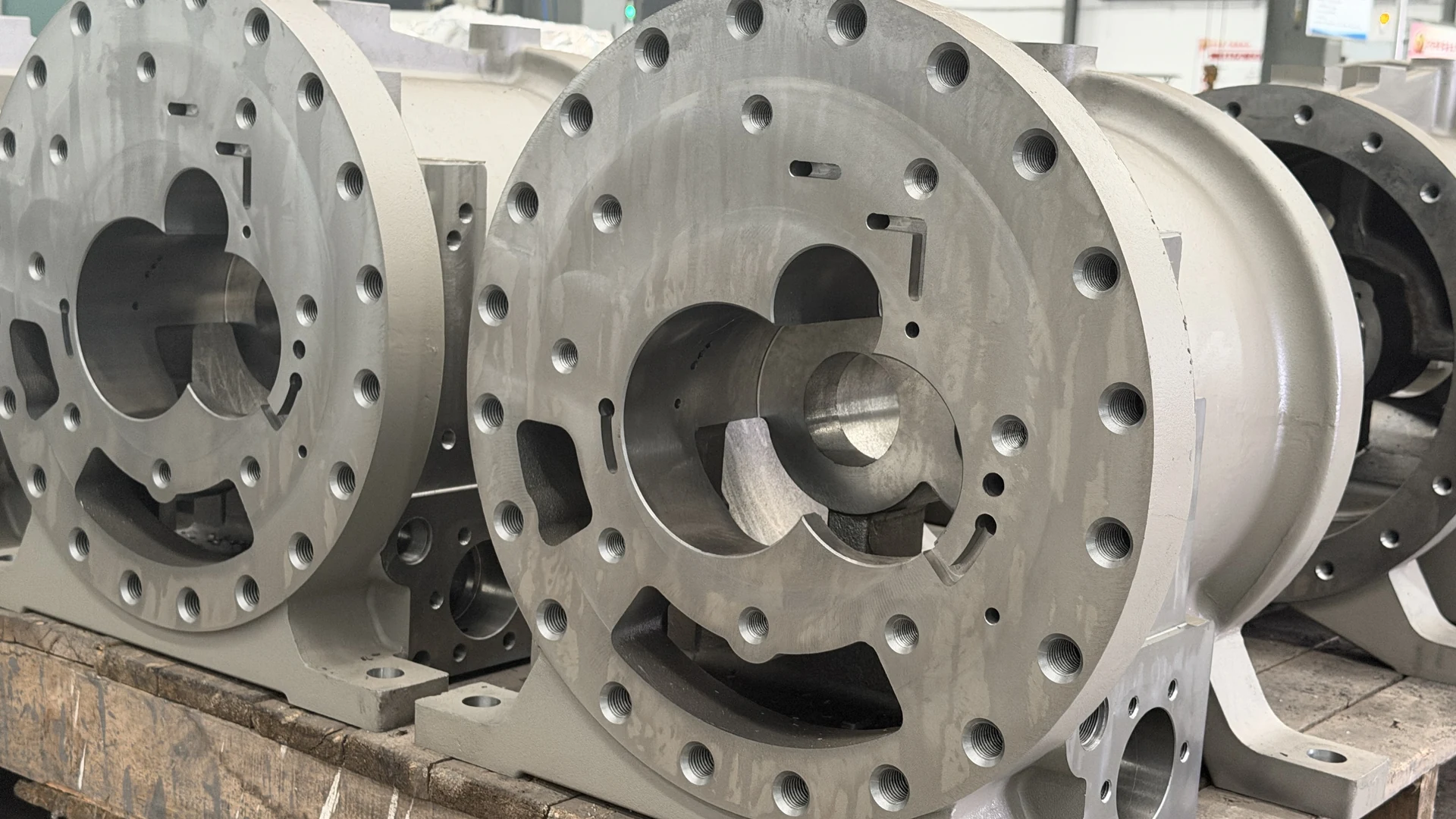

Compressor housings — as-cast and machining preparation photo 10

PROJECT REQUIREMENTS

Define the part.
Agree the details.

This representative component illustrates our drawing-based manufacturing experience. Geometry, material standard, tooling, order quantity and inspection requirements are reviewed for each new project.

Supply can be discussed as an as-cast, rough-machined or finish-machined component, subject to technical review. Include critical dimensions, surface finish and any leak-test requirements in your enquiry.

Displayed weights refer to the illustrated reference casting, where available, and are not a general manufacturing limit. Components are quoted to specification; this page does not indicate stock availability or interchangeability with another manufacturer’s parts.

Prepare your casting RFQ ↗
