Home / Industry Applications
INDUSTRY APPLICATIONS

Iron components matched to real operating requirements.

Explore established Anxin product areas and adjacent applications that can be assessed from your drawing, material standard and service conditions.

APPLICATION FIT

Start with the component function, not only the industry label.

The same iron casting can face very different loads, media, temperatures, sealing duties and regulatory requirements across industries. This map helps procurement and engineering teams identify a starting point; final scope is confirmed from the drawing and technical review.

01Current product focus

Related components are represented in the current portfolio.

02Drawing-reviewed application

Material and process may fit, but supply capability still requires confirmation.

03Confirm critical boundaries

Pressure, safety, leakage and regulatory requirements must be defined before quotation.

Air compressors and vacuum equipmentCURRENT PRODUCT FOCUS
01

Air compressors and vacuum equipment

This is Anxin’s strongest documented application area. The current portfolio includes compressor housings, bearing supports, crankcases, cylinders, cylinder heads, side and end covers, motor housings, gearbox housings, scroll components and related castings.

The review should define compressor type, internal passages, material standard, machined delivery condition, bearing and sealing interfaces, cleanliness, pressure or leak testing and any traceability records.

Send a related part drawing ↗

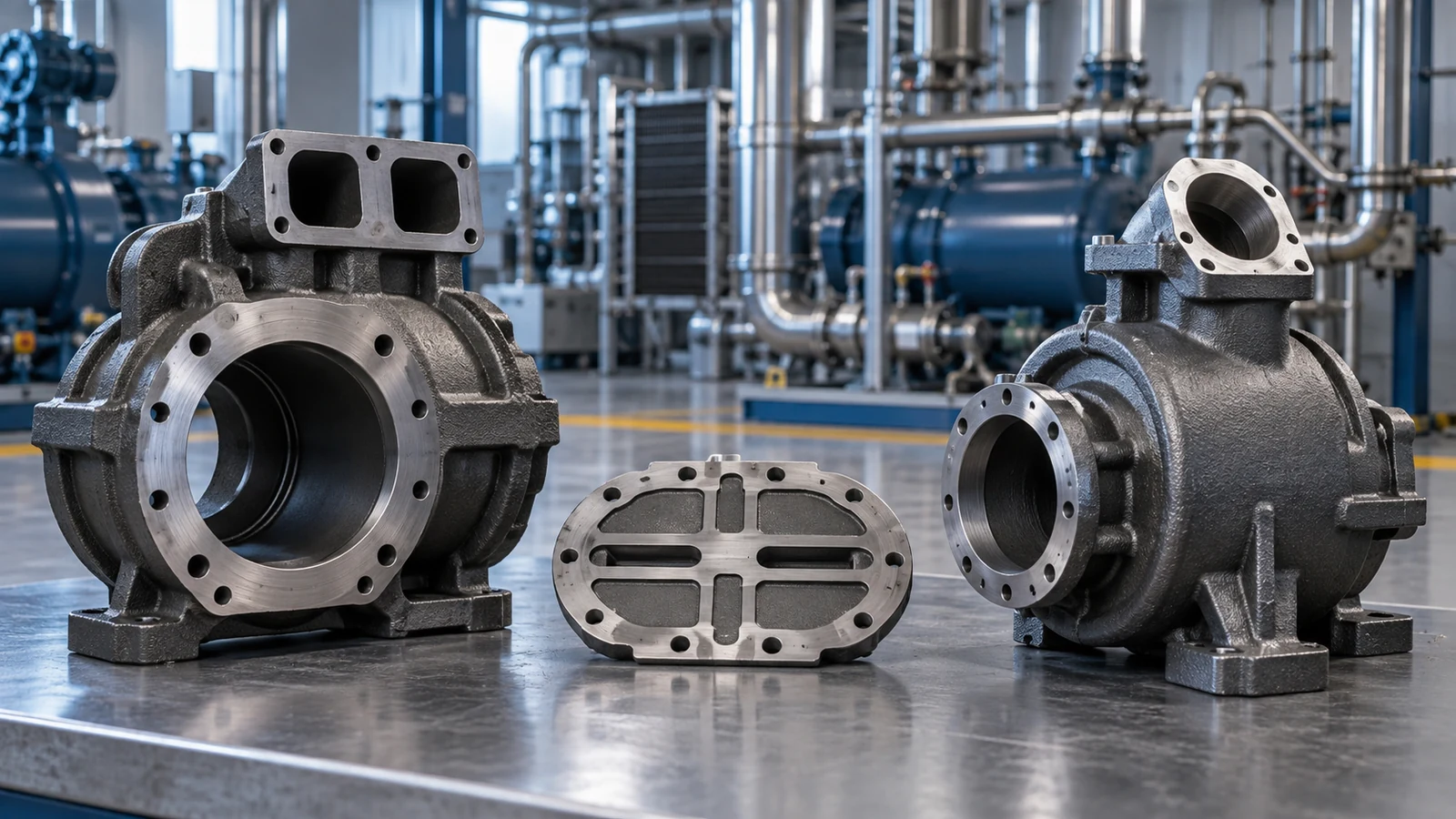

Industrial refrigeration equipmentCURRENT PRODUCT FOCUS
02

Industrial refrigeration equipment

The portfolio includes suction and discharge housings, cylinder-related parts, covers and slide-valve castings used around industrial refrigeration compressor assemblies.

Refrigerant compatibility, pressure boundary, operating temperature, leakage criteria and applicable equipment rules are project-specific. These requirements must be supplied by the customer and agreed before quotation; a similar geometry alone does not establish suitability.

Send a related part drawing ↗

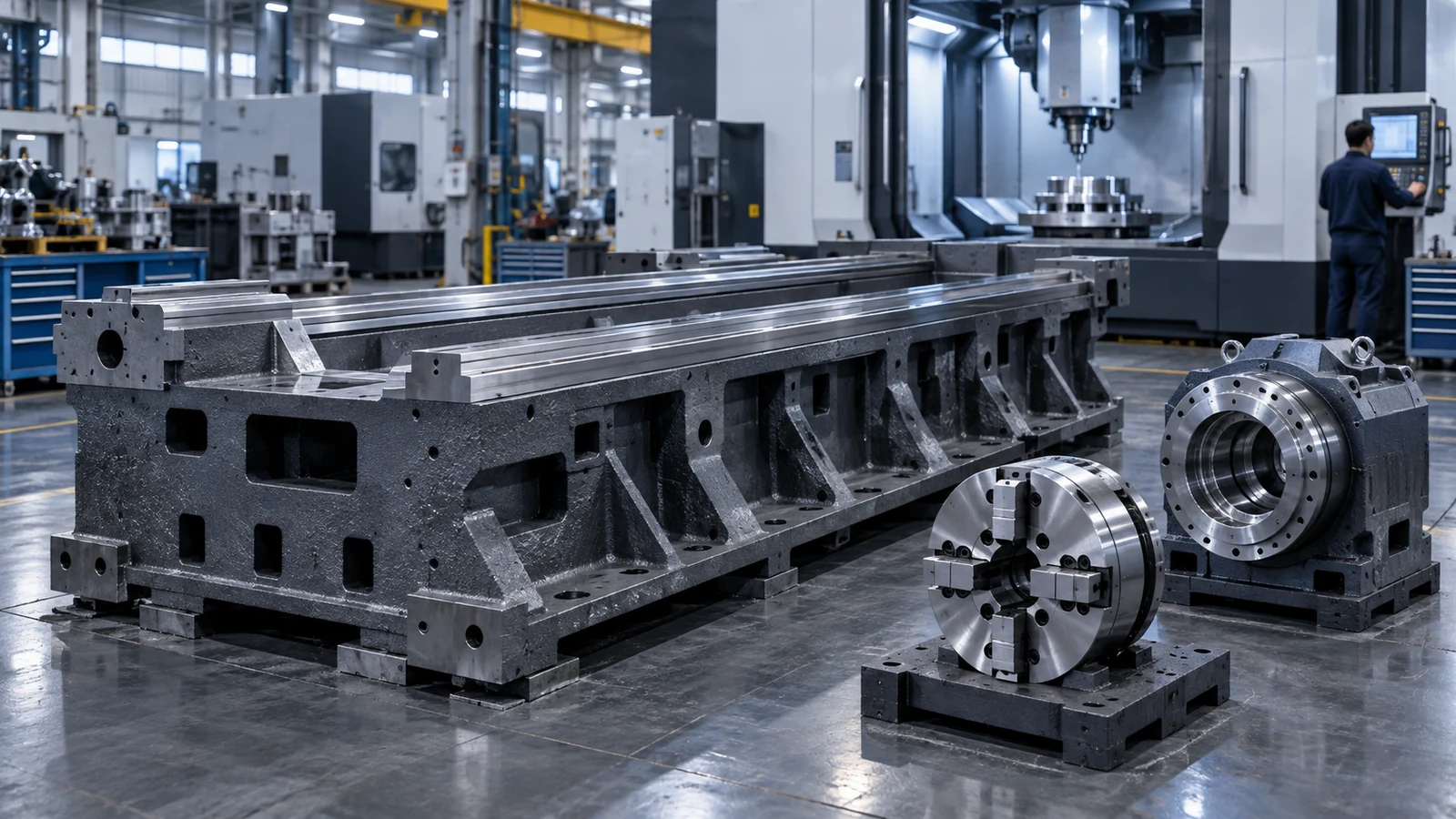

Machine tools and workholdingCURRENT PRODUCT FOCUS
03

Machine tools and workholding

Existing product experience includes chuck bodies, large chuck bodies, machine-tool bases and related structural castings. Gray iron can be relevant where stiffness, vibration damping, dimensional stability and machinability are central to the design.

The drawing review should identify guideways, spindle or bearing interfaces, datum strategy, stress relief or heat treatment, machining sequence, geometric tolerances and the final inspection method. Anxin supplies cast or machined components rather than complete machine tools or chuck assemblies.

Send a related part drawing ↗

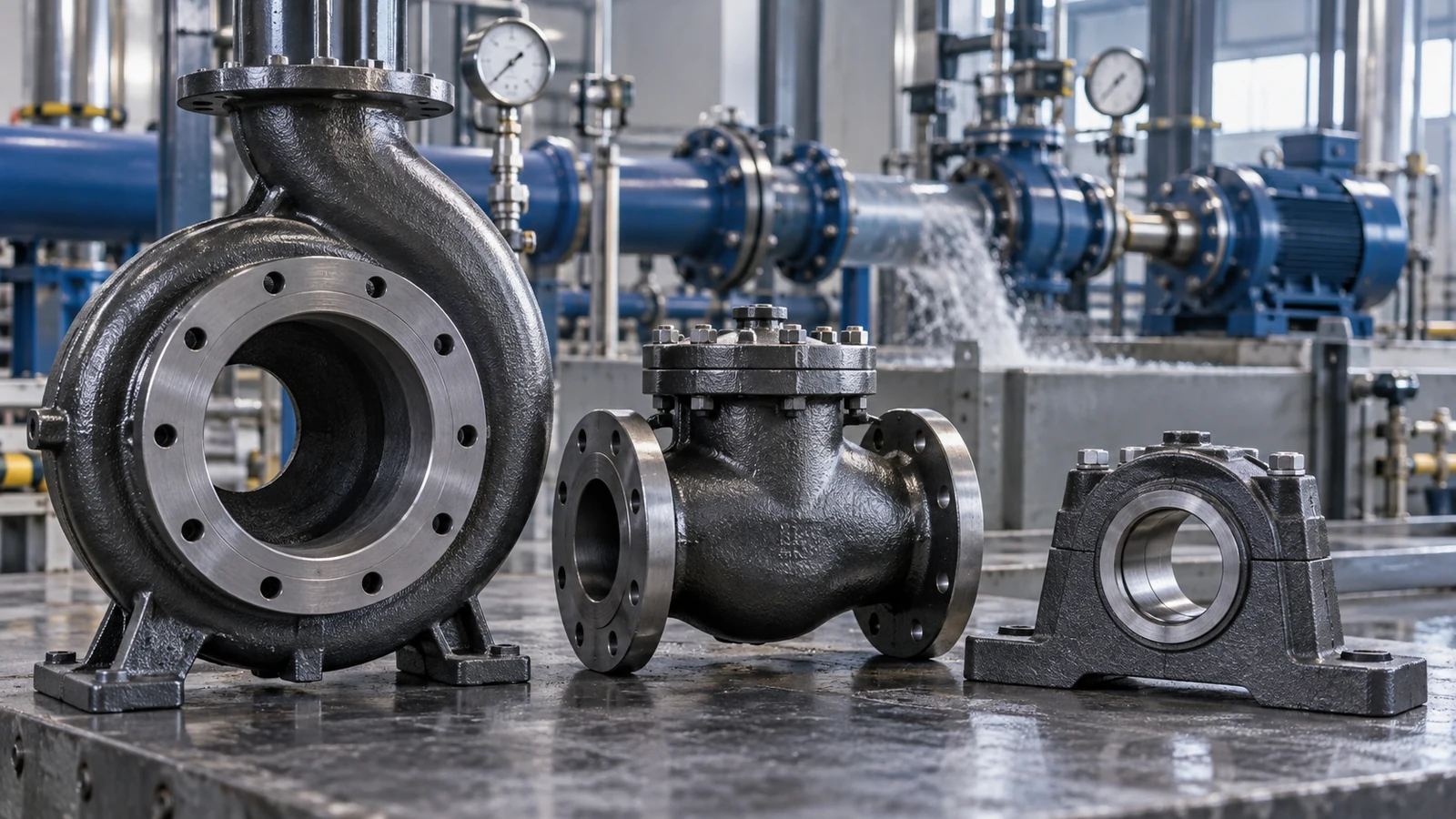

Pumps, valves and fluid handlingDRAWING REVIEW
04

Pumps, valves and fluid handling

Volute-like casings, valve bodies, bearing housings, covers and support castings can fall within the wider application range of gray or ductile iron. These are drawing-reviewed opportunities, not a blanket claim for every fluid service.

The enquiry must state the fluid, concentration, temperature, pressure, corrosion or erosion exposure, wall-thickness criteria, pressure-test method and governing standard. Wetted or pressure-retaining parts require explicit material and acceptance approval.

Send a related part drawing ↗

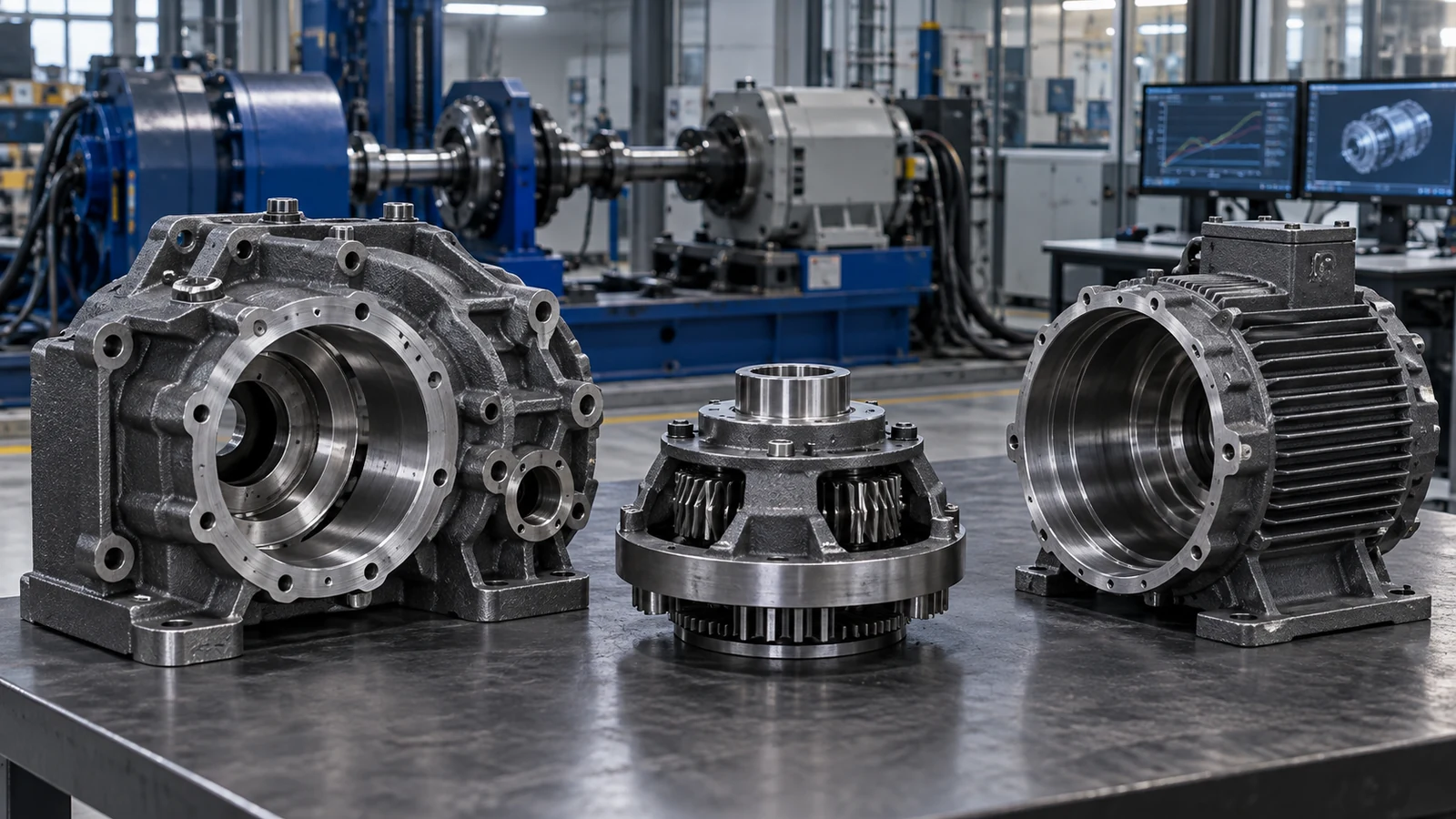

Power transmission and electric equipmentDRAWING REVIEW
05

Power transmission and electric equipment

Gearbox housings, bearing chambers, motor housings, carriers, covers and mounting structures are realistic component families for technical review. Typical priorities include alignment, bearing-seat geometry, rigidity, vibration behaviour, heat dissipation and repeatable machining references.

Please identify torque and load cases, duty cycle, lubrication environment, critical bores, coaxiality or runout, surface finish and whether the component is required as-cast, rough-machined or finish-machined.

Send a related part drawing ↗

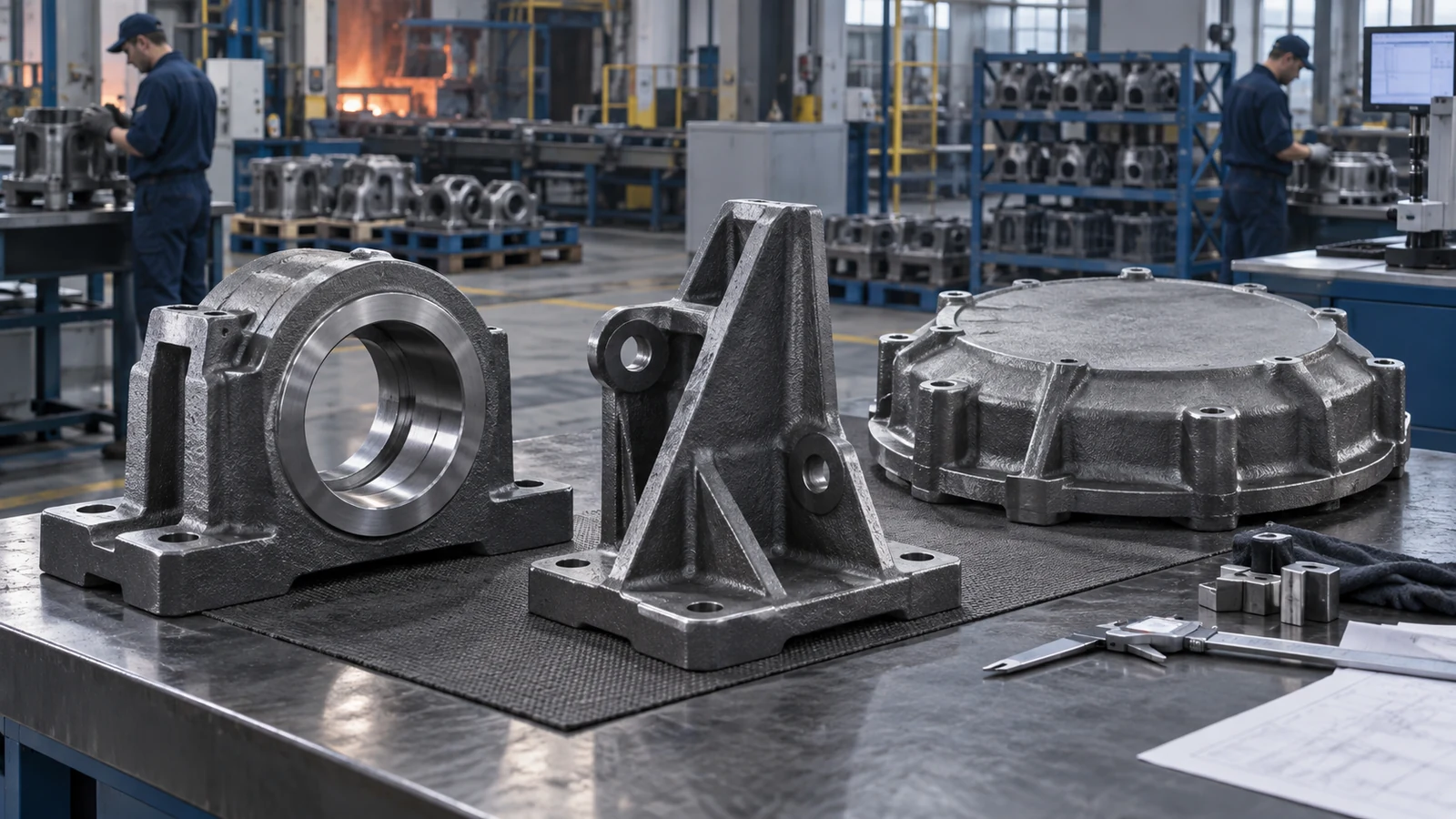

General industrial machineryDRAWING REVIEW
06

General industrial machinery

Frames, bases, brackets, covers, support seats and equipment housings can serve process machinery, material handling, hydraulics, blowers, agricultural or construction equipment and other industrial systems when part size and requirements match the available process.

Safety-critical, fatigue-critical, regulated or unfamiliar applications require additional qualification. A complete drawing, service description, inspection plan, expected batch and annual demand allow Anxin to give a grounded answer instead of an assumption.

Send a related part drawing ↗
HIGH-VALUE PROJECT OPPORTUNITIES

Four casting project areas available for drawing-based technical review.

These pages define reviewable component families, required service data and the manufacturing basis. They do not imply stocked parts, automatic suitability or a supply relationship with any third-party brand.

01Data-center liquid cooling & chiller castings

Data-center liquid cooling & chiller castings

Drawing review for compressor housings, rotor supports, suction and discharge covers, pump bodies and valve-related castings used around liquid-cooling and chiller systems.

Review the project scope ↗
02Heat-pump & waste-heat recovery compressor castings

Heat-pump & waste-heat recovery compressor castings

Drawing review for scroll or compressor housings, bearing seats, cylinders, covers and transition bodies for heat-pump and industrial heat-recovery equipment.

Review the project scope ↗
03Electric machinery transmission & reducer castings

Electric machinery transmission & reducer castings

Drawing review for planetary carriers, drive discs, gearbox housings, bearing chambers and mounting structures used in electrified off-highway and industrial drive systems.

Review the project scope ↗
04Industrial robot joint & machine-tool castings

Industrial robot joint & machine-tool castings

Drawing review for robot reducer housings, joint supports, machine-tool bases, spindle housings, chuck bodies and workholding structures requiring stable machining references.

Review the project scope ↗
Quick screening table for procurement and engineering
Project areaReviewable componentsProvide firstDecision basis
Data-center liquid cooling & chiller castingsDrawing review for compressor housings, rotor supports, suction and discharge covers, pump bodies and valve-related castings used around liquid-cooling and chiller systems.Drawing, material standard, service conditions, inspection and volumeTechnical review and project quotation
Heat-pump & waste-heat recovery compressor castingsDrawing review for scroll or compressor housings, bearing seats, cylinders, covers and transition bodies for heat-pump and industrial heat-recovery equipment.Drawing, material standard, service conditions, inspection and volumeTechnical review and project quotation
Electric machinery transmission & reducer castingsDrawing review for planetary carriers, drive discs, gearbox housings, bearing chambers and mounting structures used in electrified off-highway and industrial drive systems.Drawing, material standard, service conditions, inspection and volumeTechnical review and project quotation
Industrial robot joint & machine-tool castingsDrawing review for robot reducer housings, joint supports, machine-tool bases, spindle housings, chuck bodies and workholding structures requiring stable machining references.Drawing, material standard, service conditions, inspection and volumeTechnical review and project quotation
MATERIAL & FUNCTION

Define the duty first, then confirm grade and standard.

Gray iron

Current reference grades such as HT200, HT250 and HT300 are commonly considered for housings, bases, cylinders and supports where stiffness, damping, dimensional stability and machinability matter. A grade must be confirmed together with its governing standard.

Ductile iron

Current reference grades such as QT450-10, QT500-7 and QT600-3 may suit components needing greater strength, ductility or load capacity. Actual selection still depends on wall thickness, load, temperature, impact, fatigue and inspection requirements.

FURTHER SECTORS TO REVIEW

The material and processes can cross industries; every project still needs individual qualification.

  • 01Non-safety-critical automotive and commercial-vehicle structures
  • 02Agricultural and construction equipment housings and supports
  • 03Industrial hydraulics and material handling
  • 04Rail and general transportation components
  • 05Energy and utility equipment
  • 06Vacuum, blower and process equipment
