Machined Shaft Base Casting
Actual production photographs of a large shaft base or shaft pedestal casting with red primer, machined perimeter faces, multiple bores, mounting holes and internal cavities. Custom made to drawing.
| Material | Confirmed during technical review |
|---|---|
| Process | Casting and machining scope to customer drawing |
| Specification | Customer drawing and agreed revision |
| Delivery condition | Casting / machining scope subject to review |
Have a similar part? Share your drawing for assessment.
From the complete base to bores, cavities and machined faces.
These photographs show a large shaft base casting with red primer, a fully machined perimeter face, multiple shaft and mounting bores, and internal cavities. Material, dimensions, tolerances, machining datums and inspection scope are defined through drawing review.
Define the part.
Agree the details.

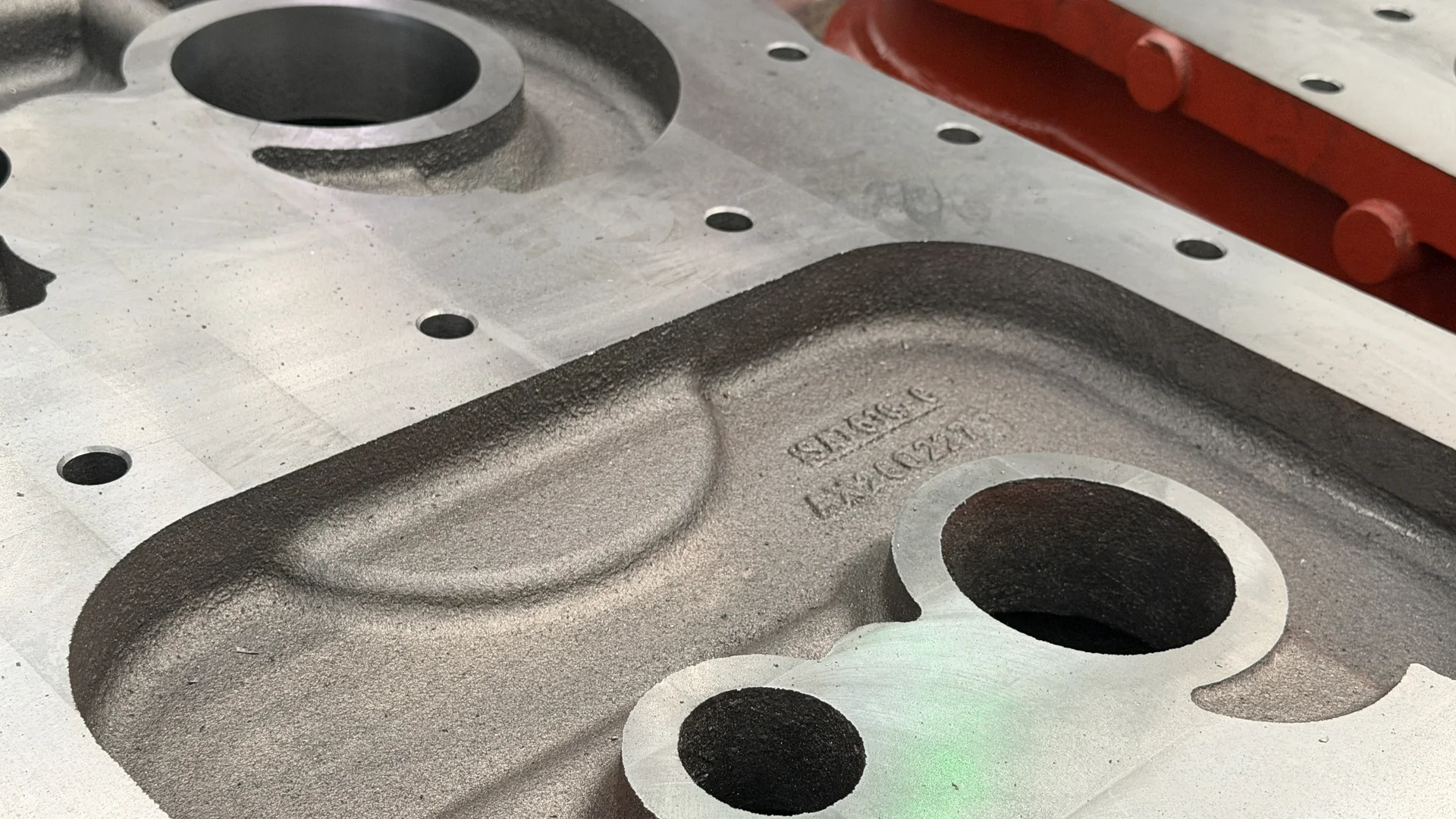

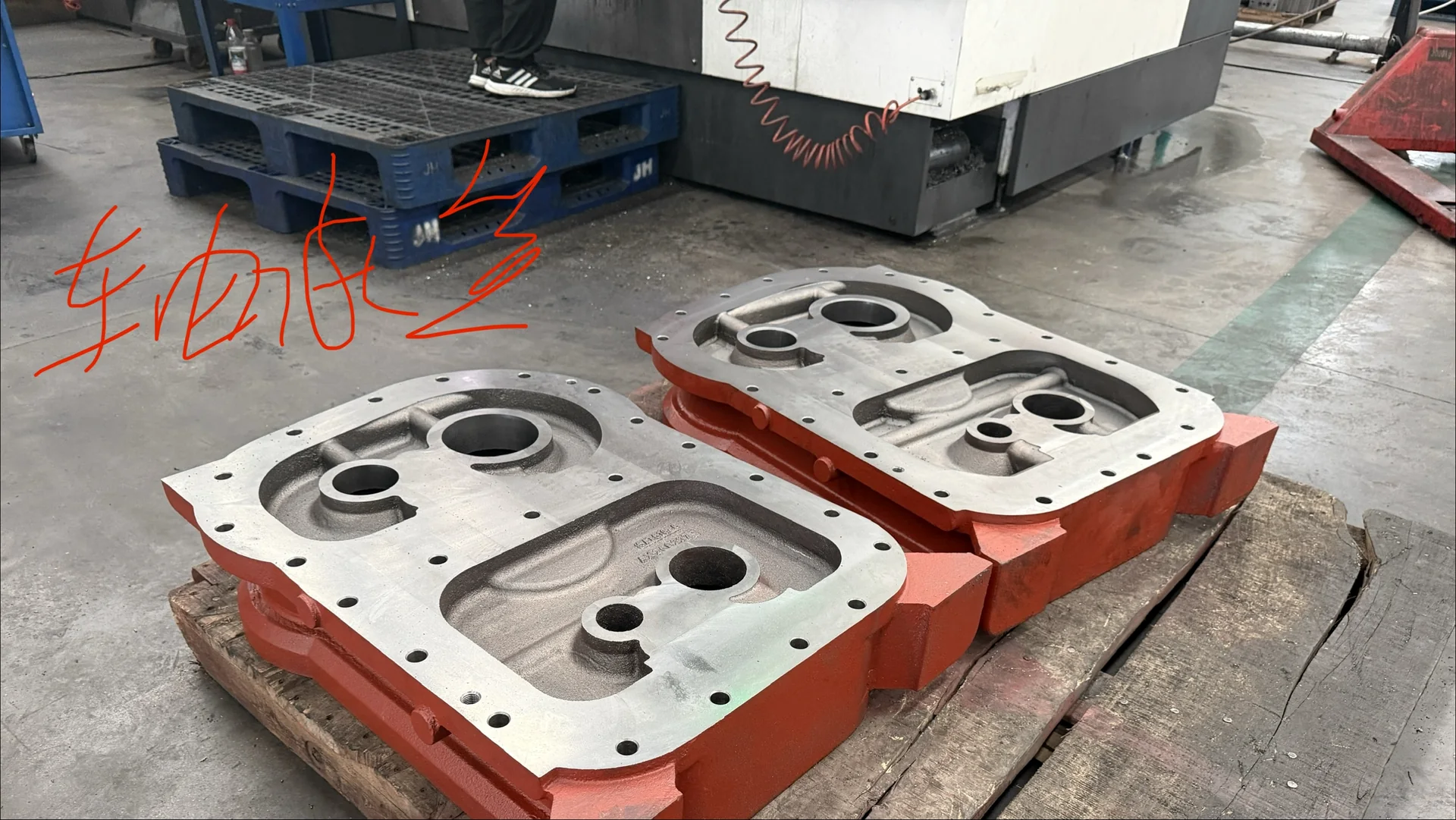

These production photographs document a representative large shaft base casting after intermediate machining. Visible features include the primed exterior, continuous machined perimeter face, multiple shaft and mounting bores, raised bosses and internal cavities.
For a new project, Anxin reviews the customer drawing, material standard, load condition, machining datums, critical fits, geometric tolerances, surface treatment, inspection scope and annual demand.
Material grade, casting process and delivery condition are confirmed through technical review. The photographs document representative parts and do not indicate stock availability or interchangeability with another manufacturer's components.
Prepare your casting RFQ ↗
