HT250 Motor Housing Castings

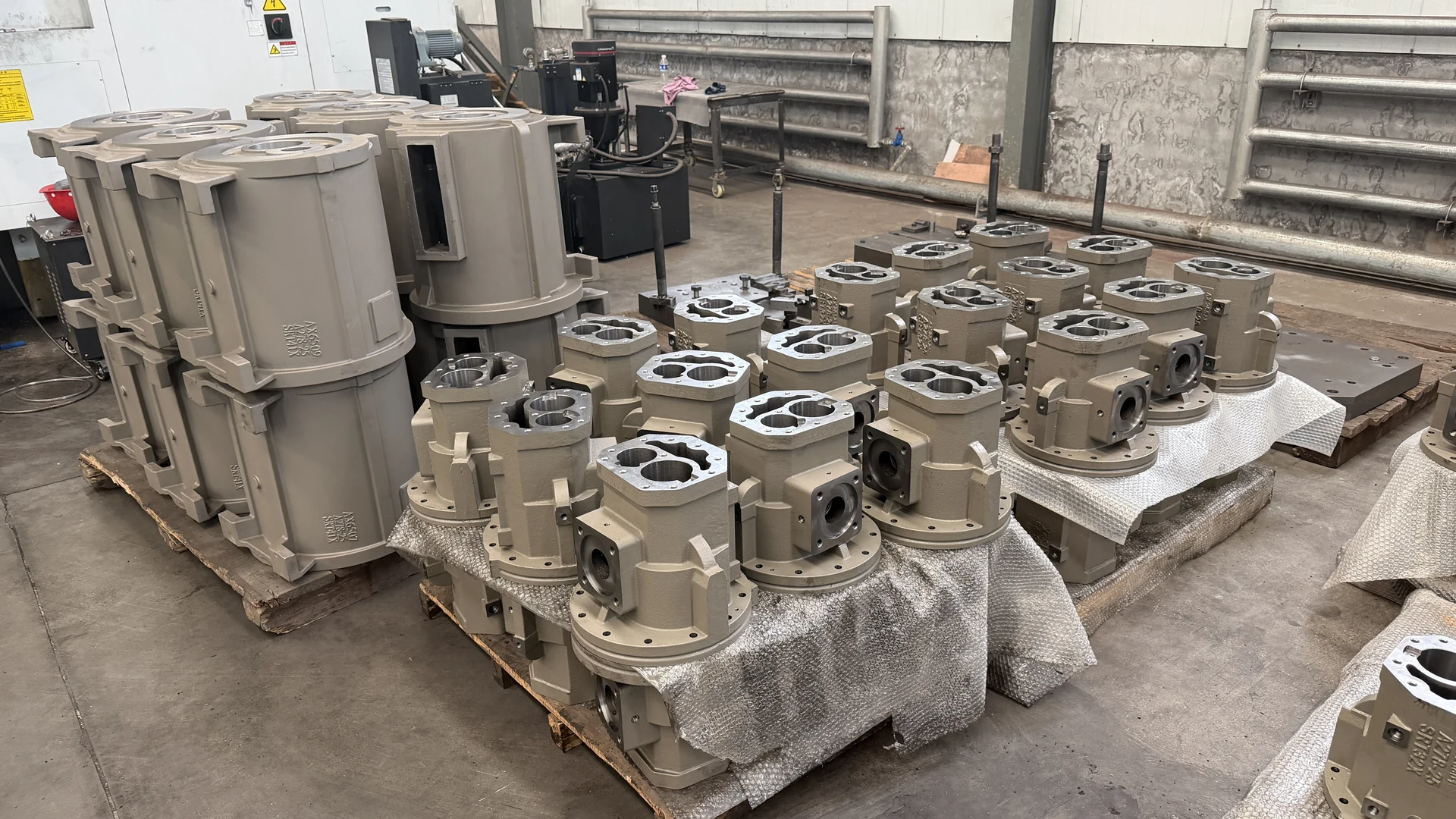

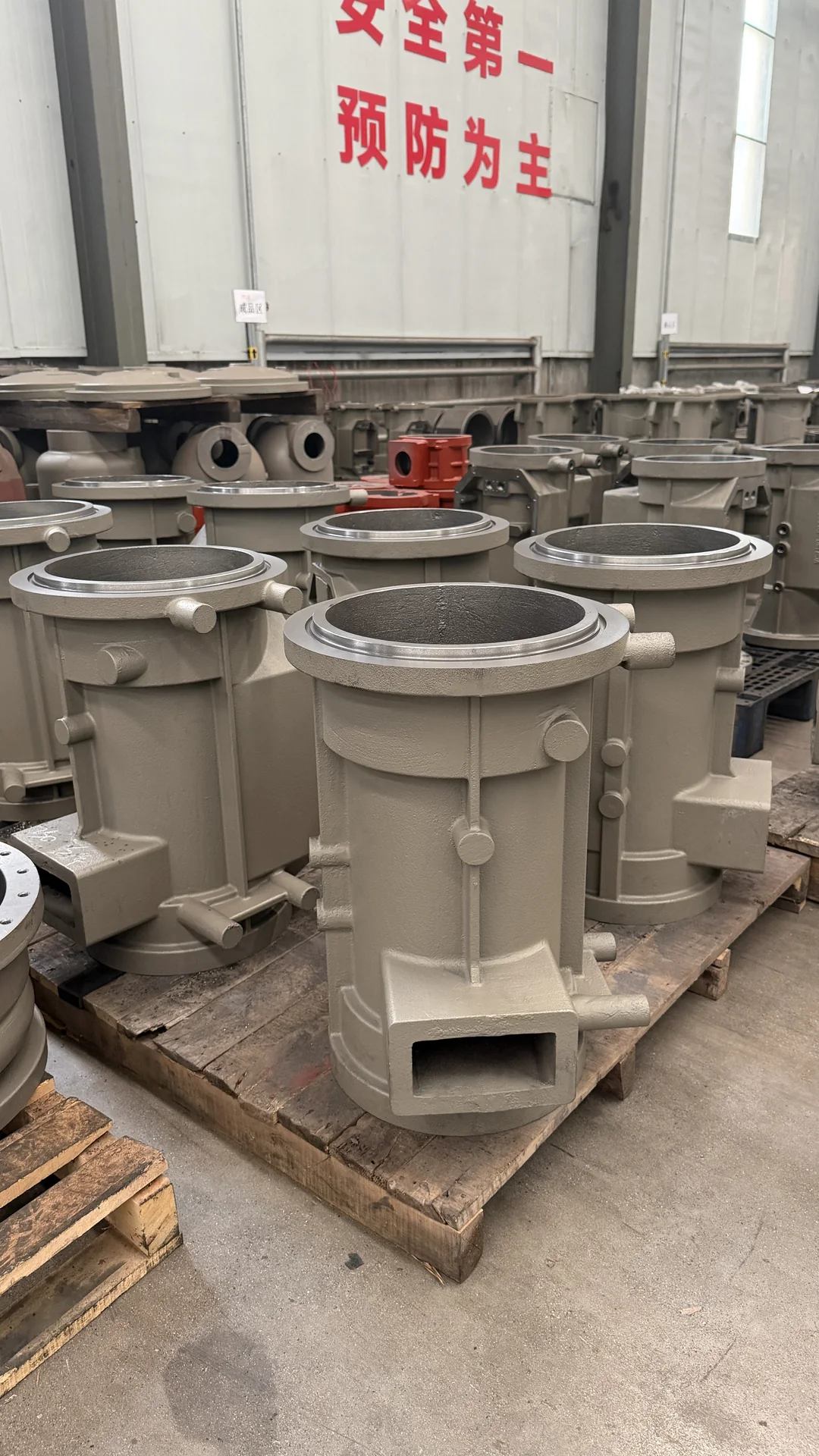

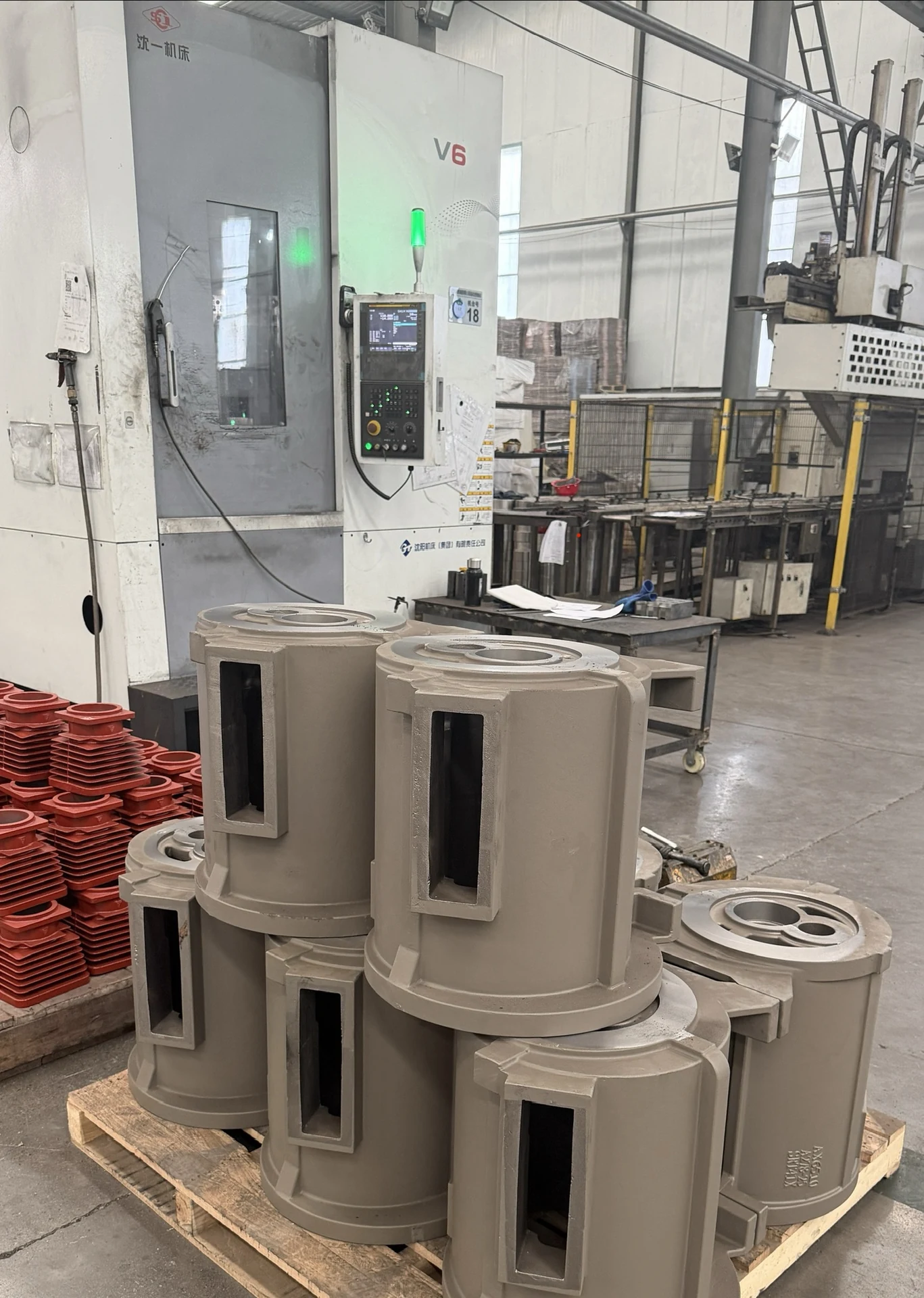

Actual production photographs of HT250 motor housing castings, including batch staging, cylindrical bodies, internal cavities, machined flange faces, bores and threaded interfaces. Made to customer drawings.
| Material | HT250 |
|---|---|
| Reference casting weight | 84.17 kg |
| Process | Sand casting and machining to customer drawing |
| Specification | Customer drawing and agreed revision |
| Delivery condition | Casting / machining scope subject to review |
Have a similar part? Share your drawing for assessment.
From batch machining to critical interface inspection.

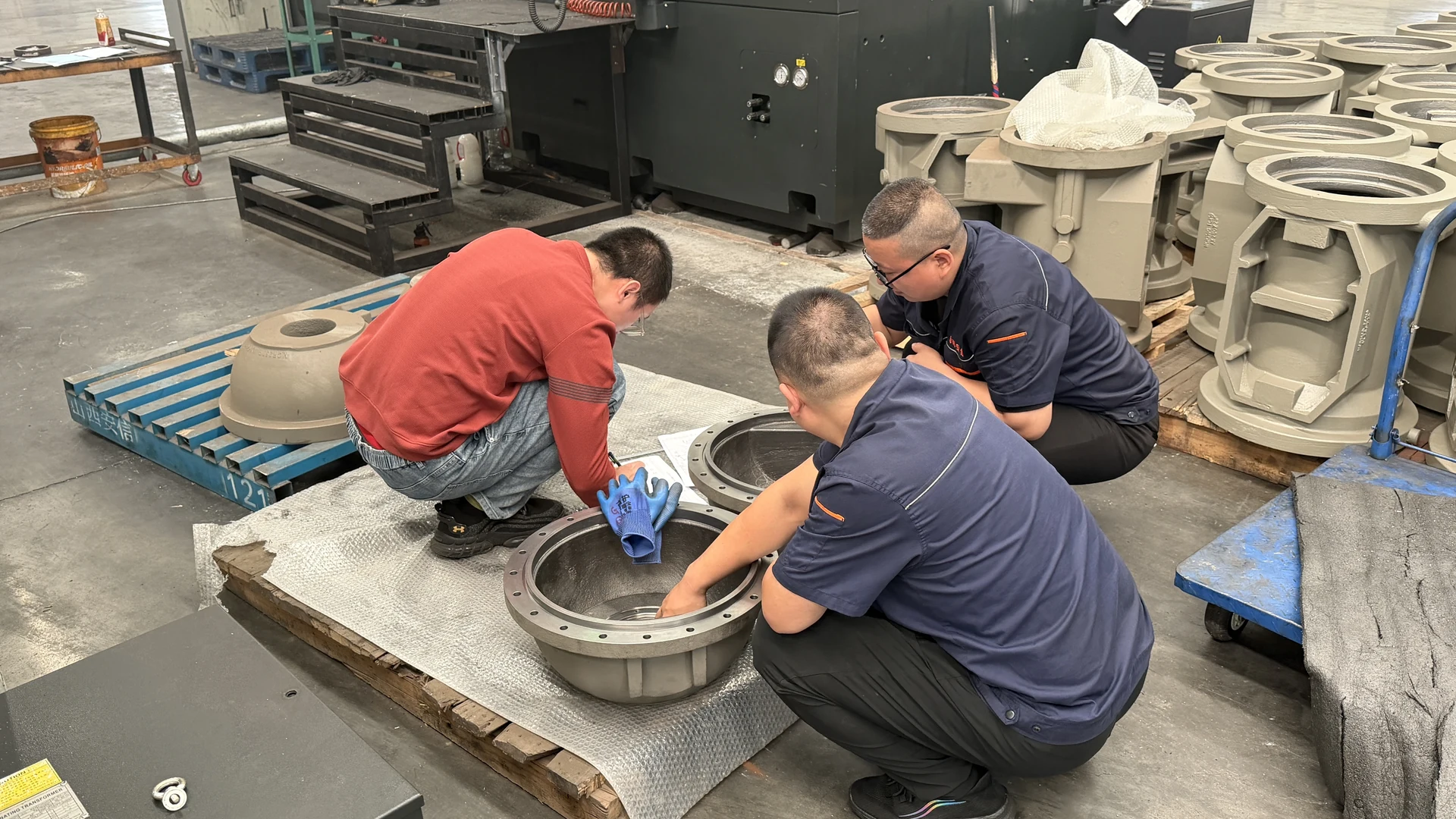

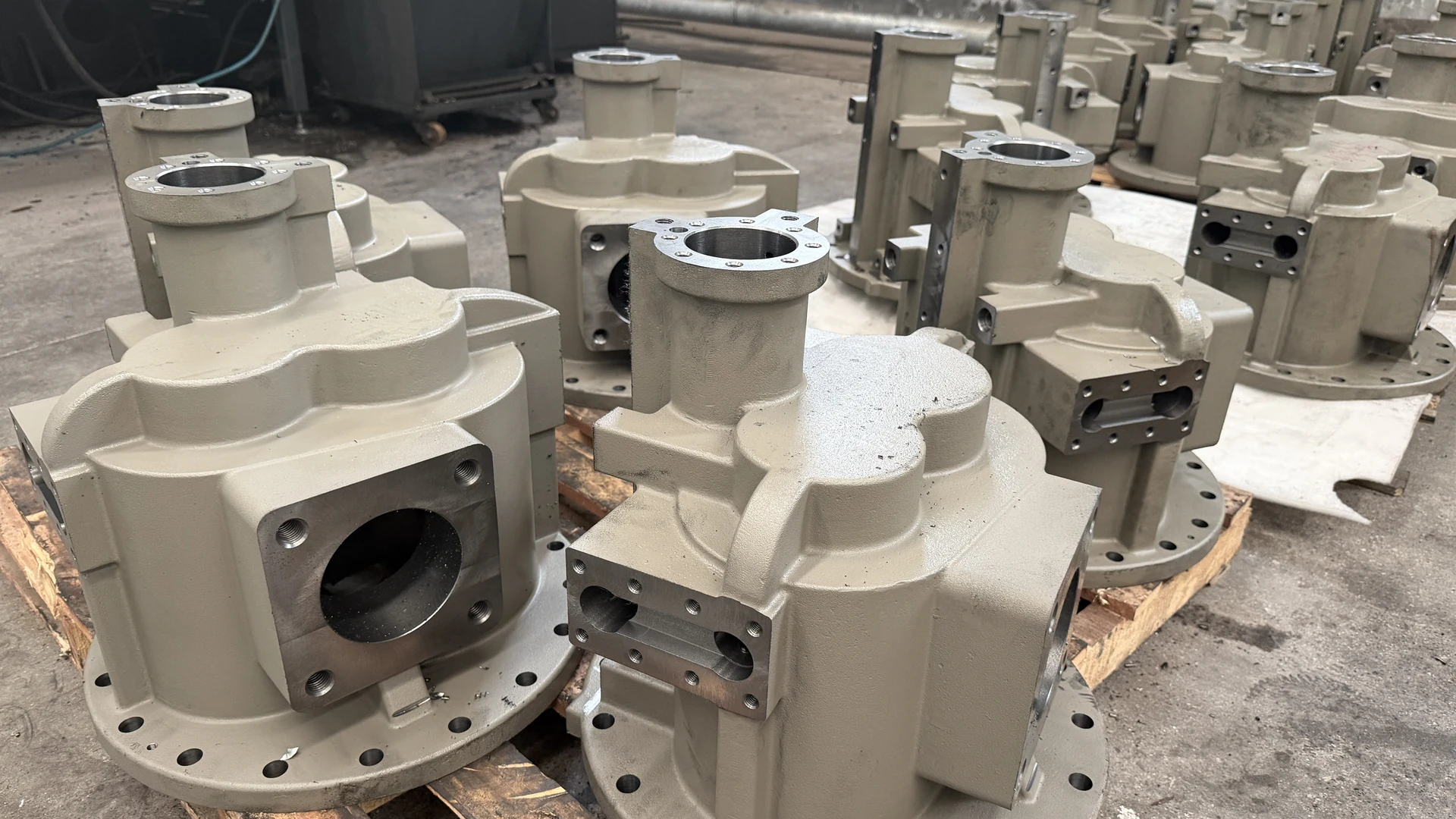

These photographs show motor housings in batch production, exterior and internal geometry, flange faces, connection bores and threaded details, together with in-process inspection. Dimensions, tolerances, material and delivery condition are defined after drawing review.
Define the part.
Agree the details.

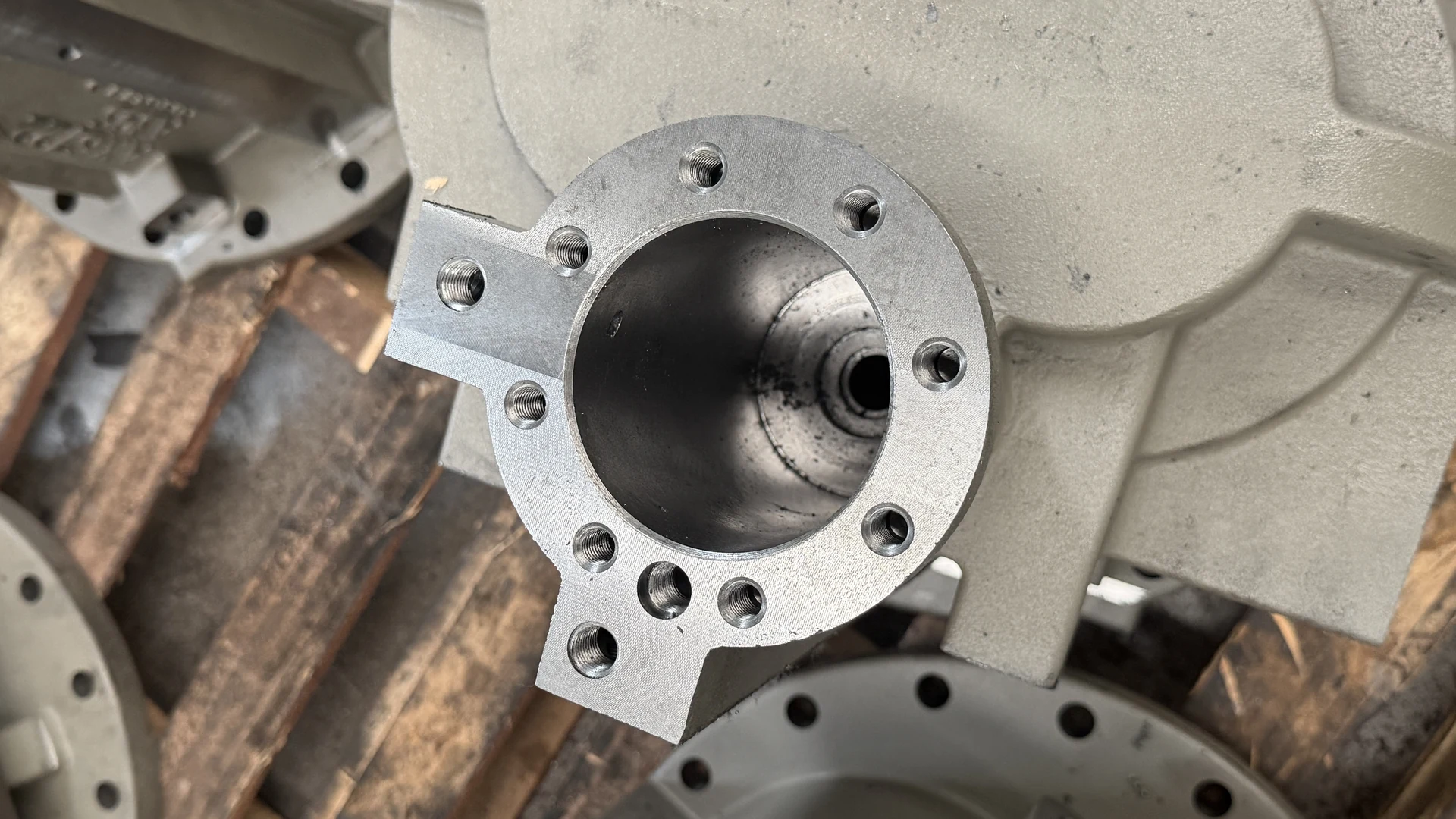

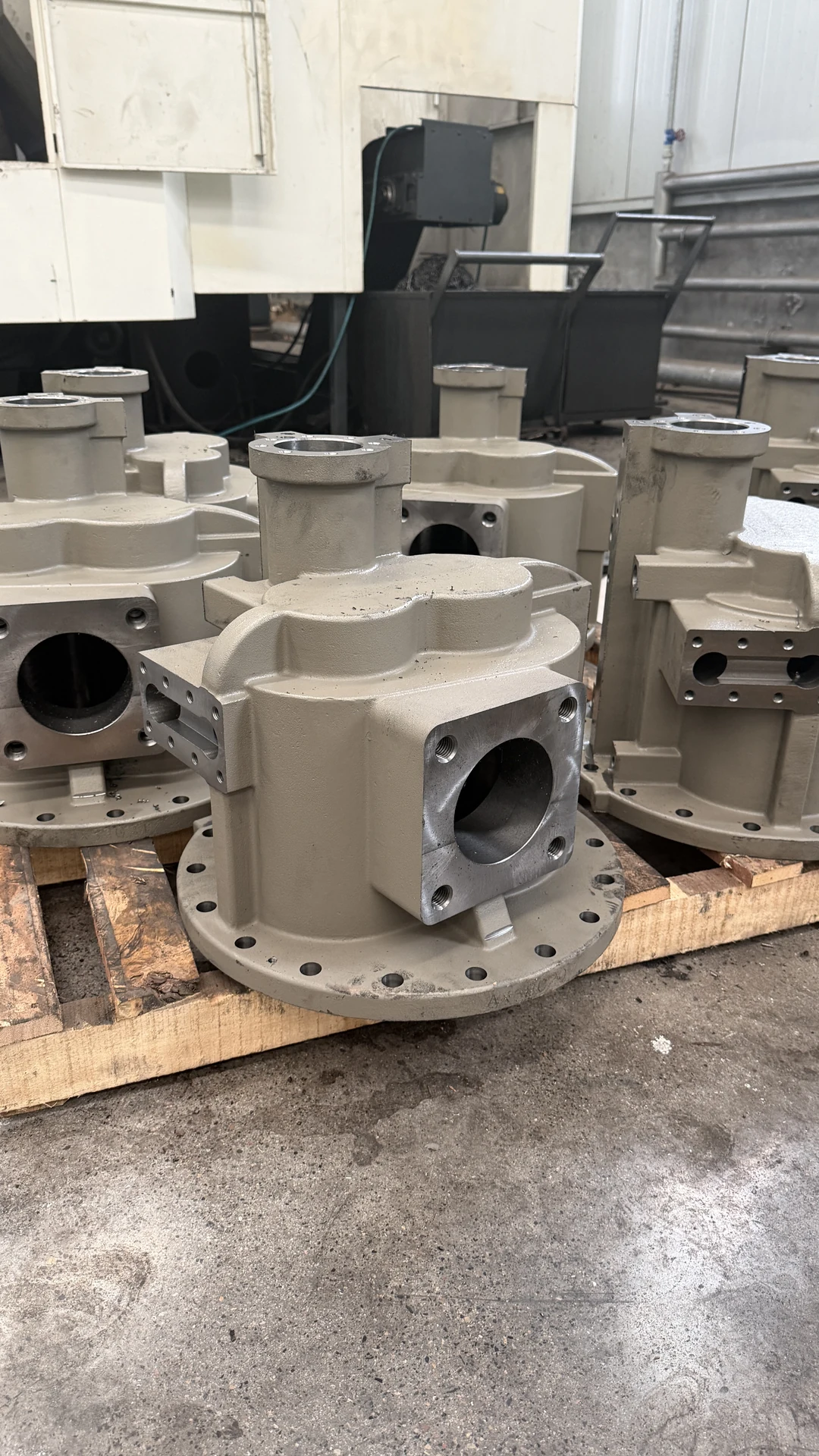

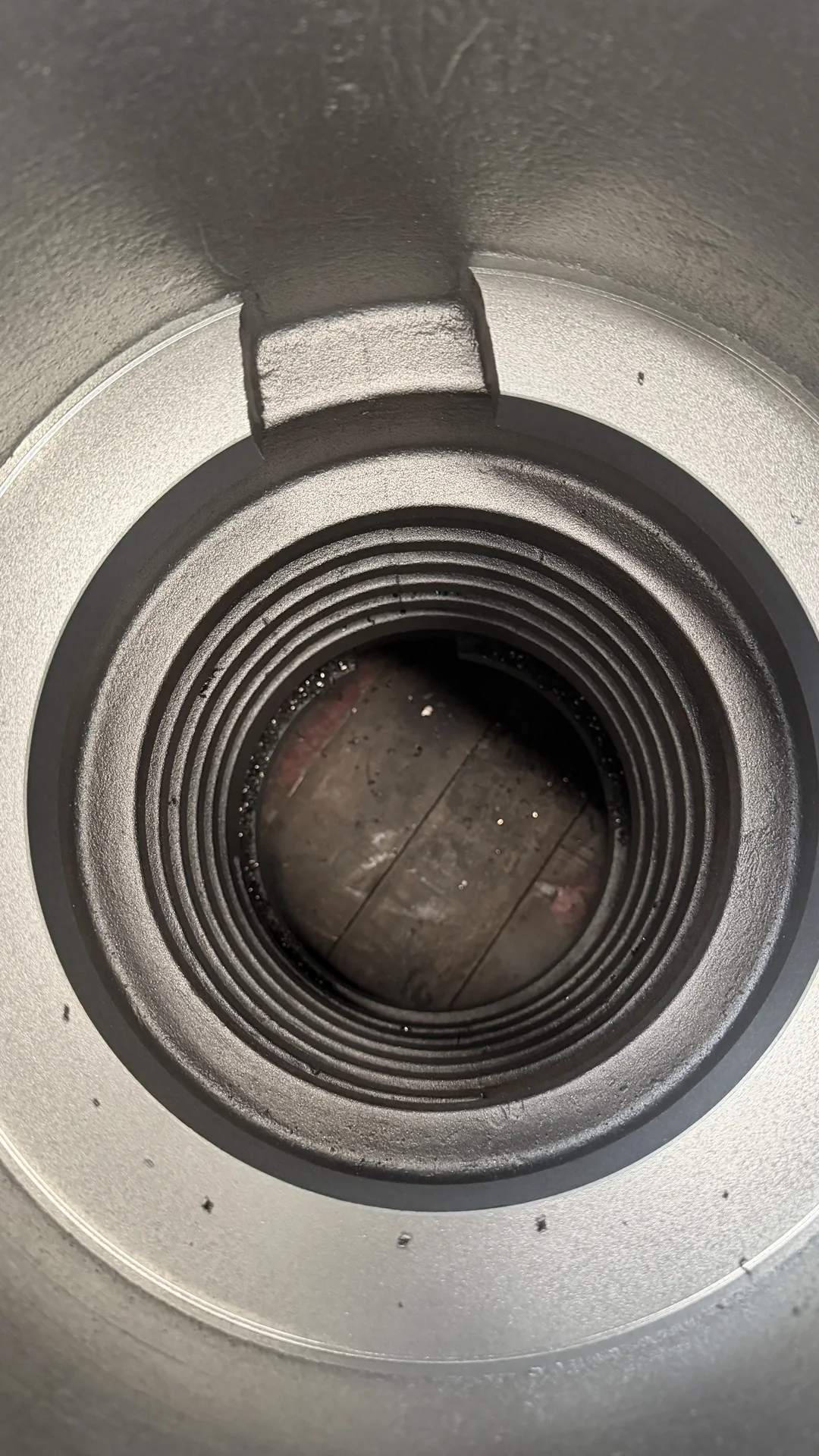

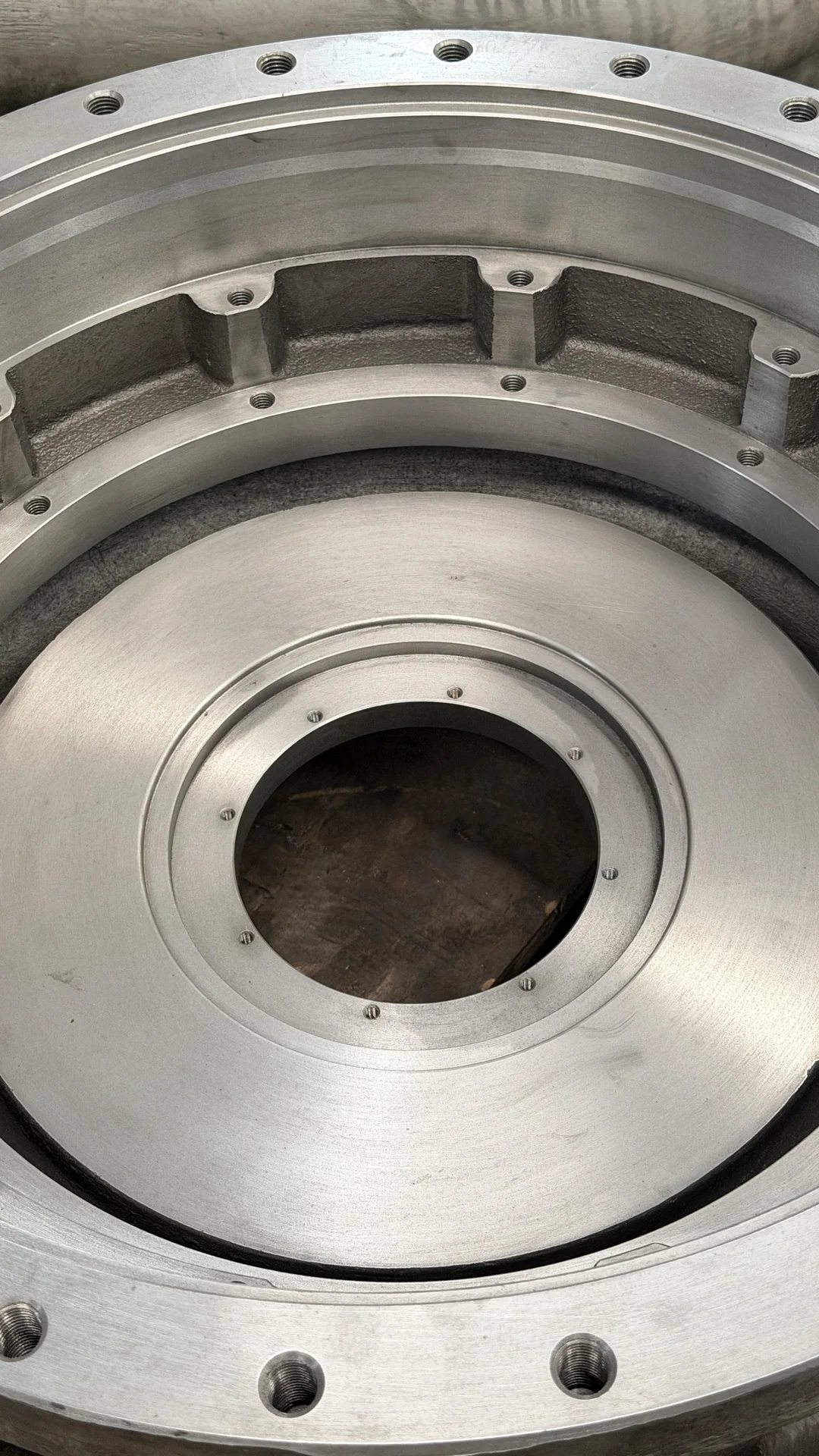

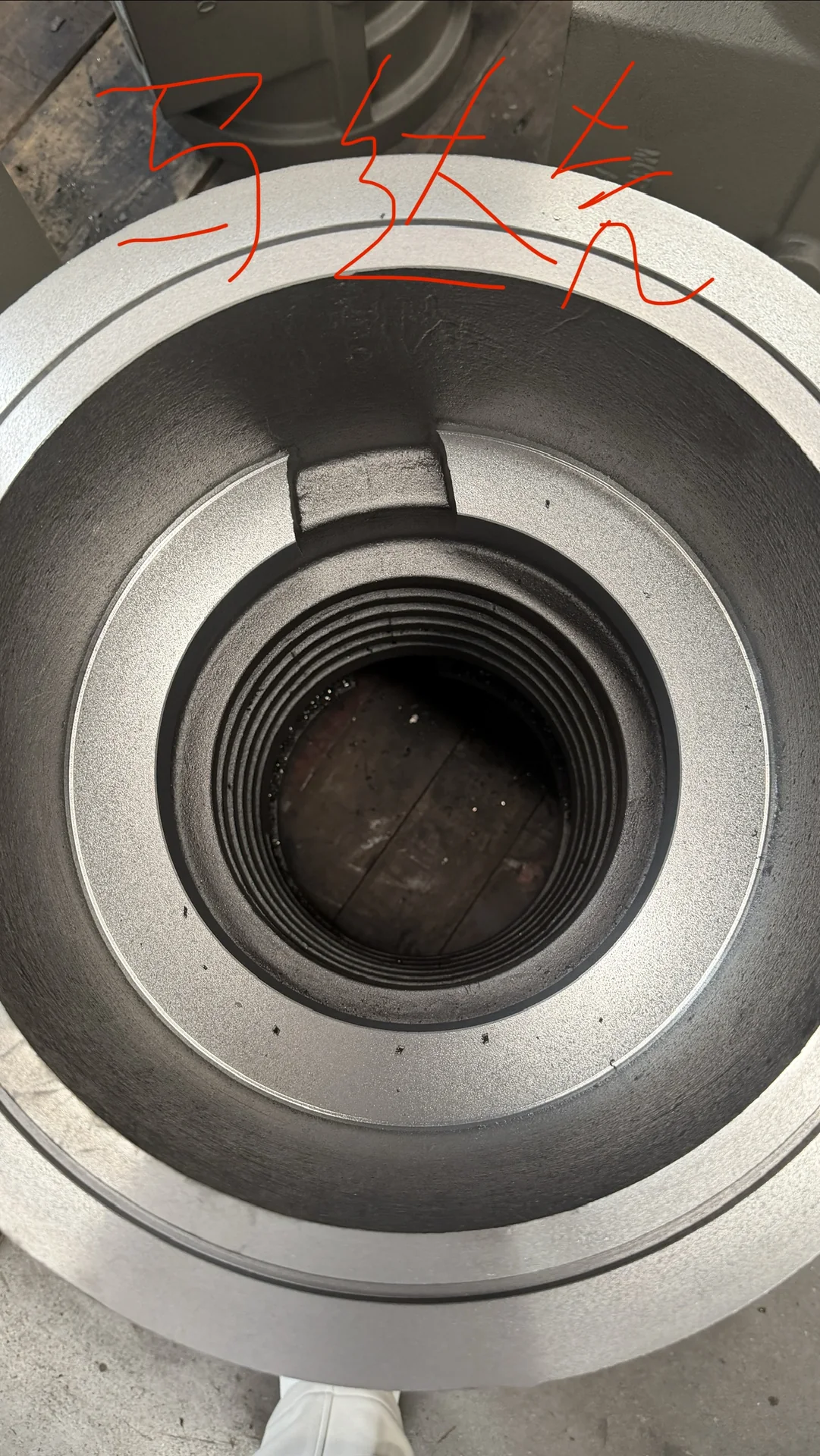

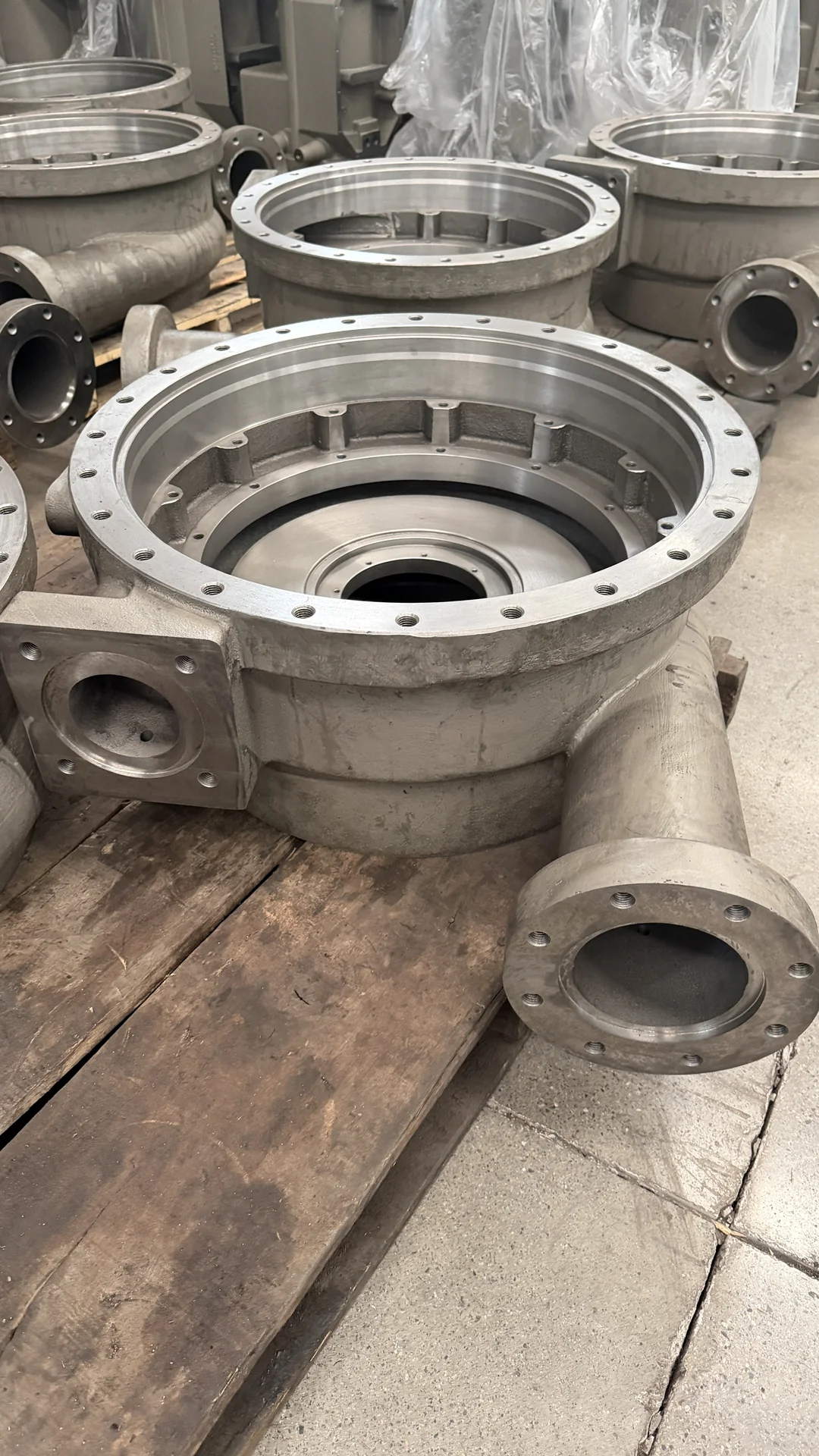

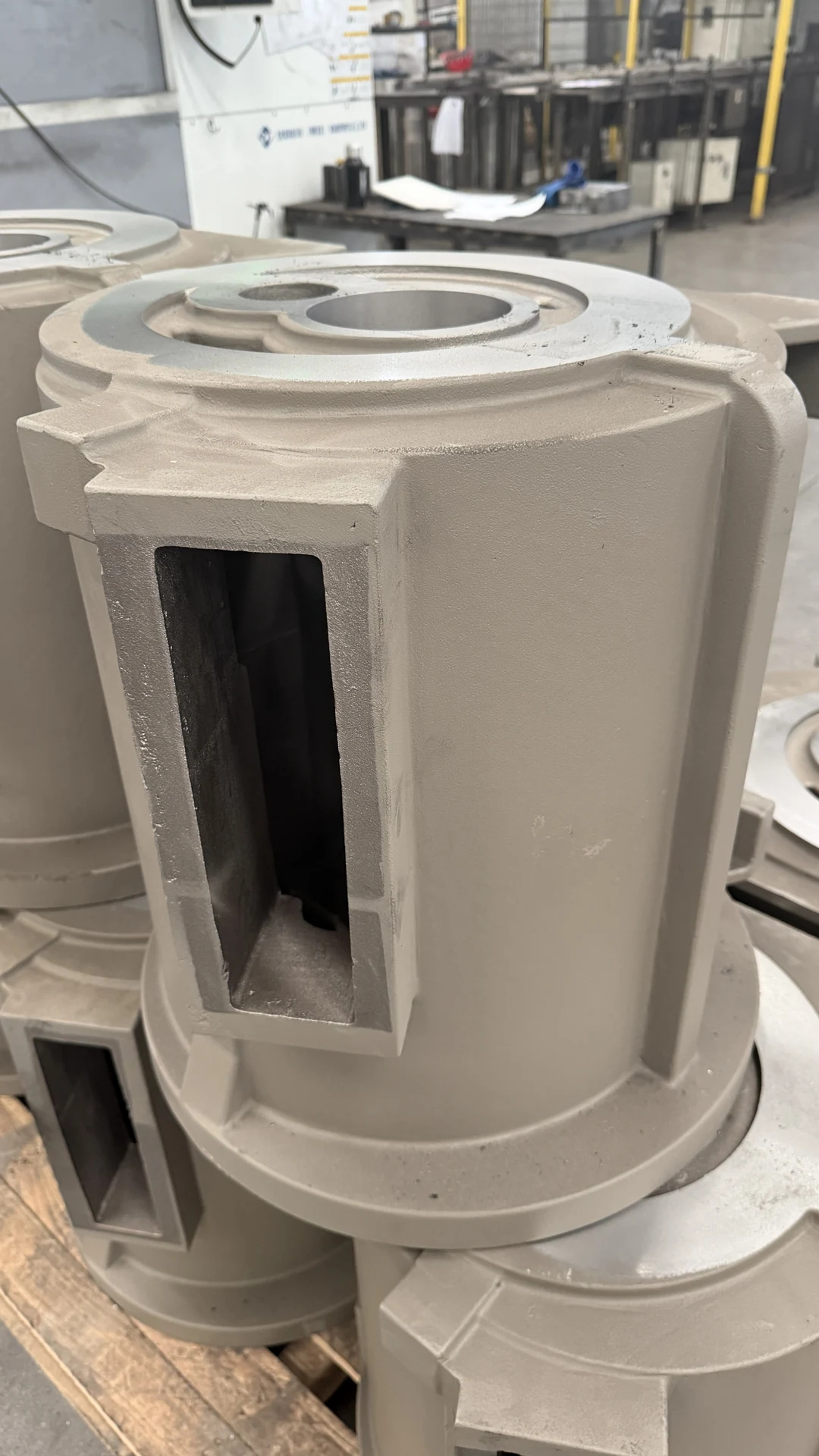

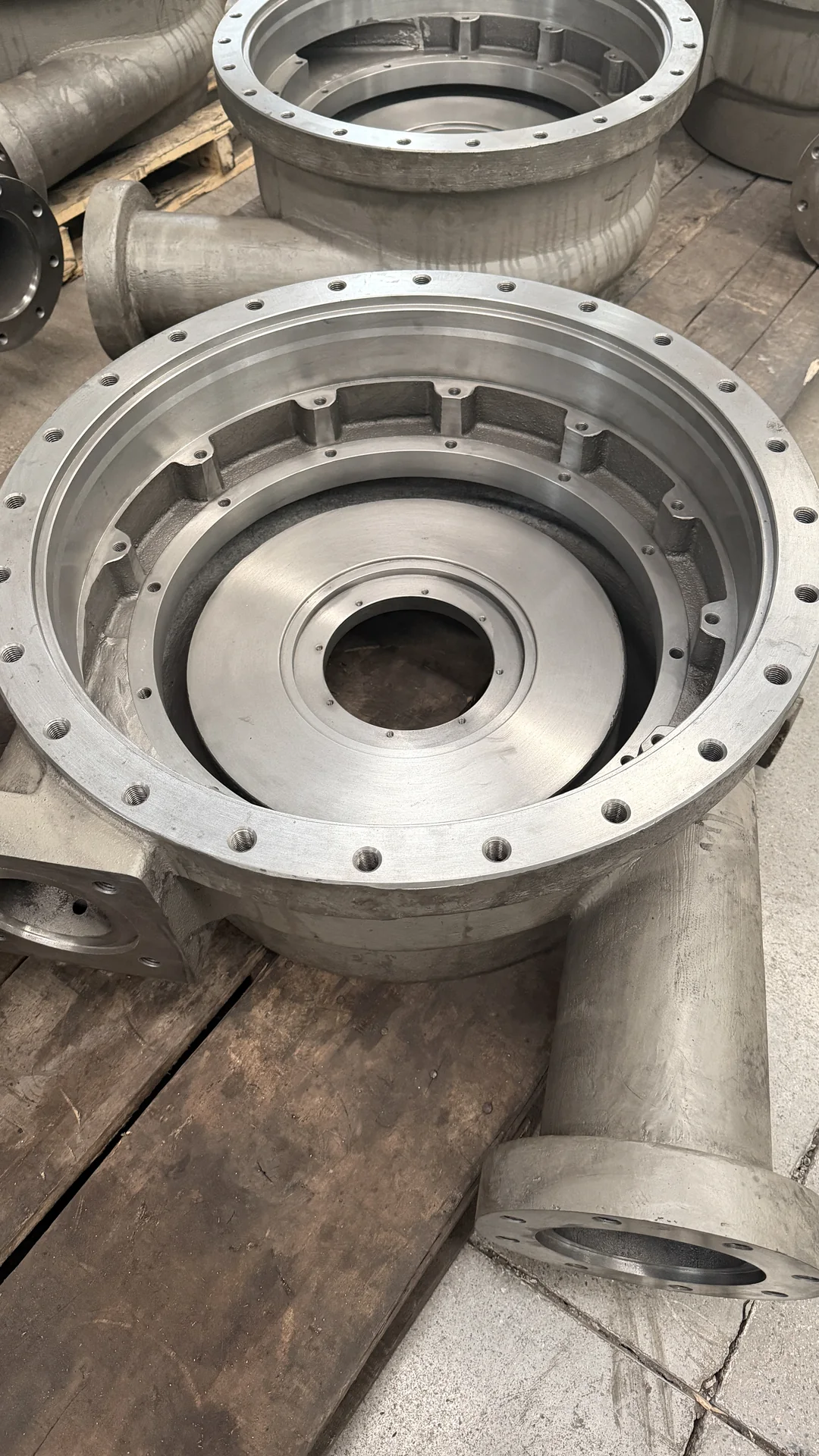

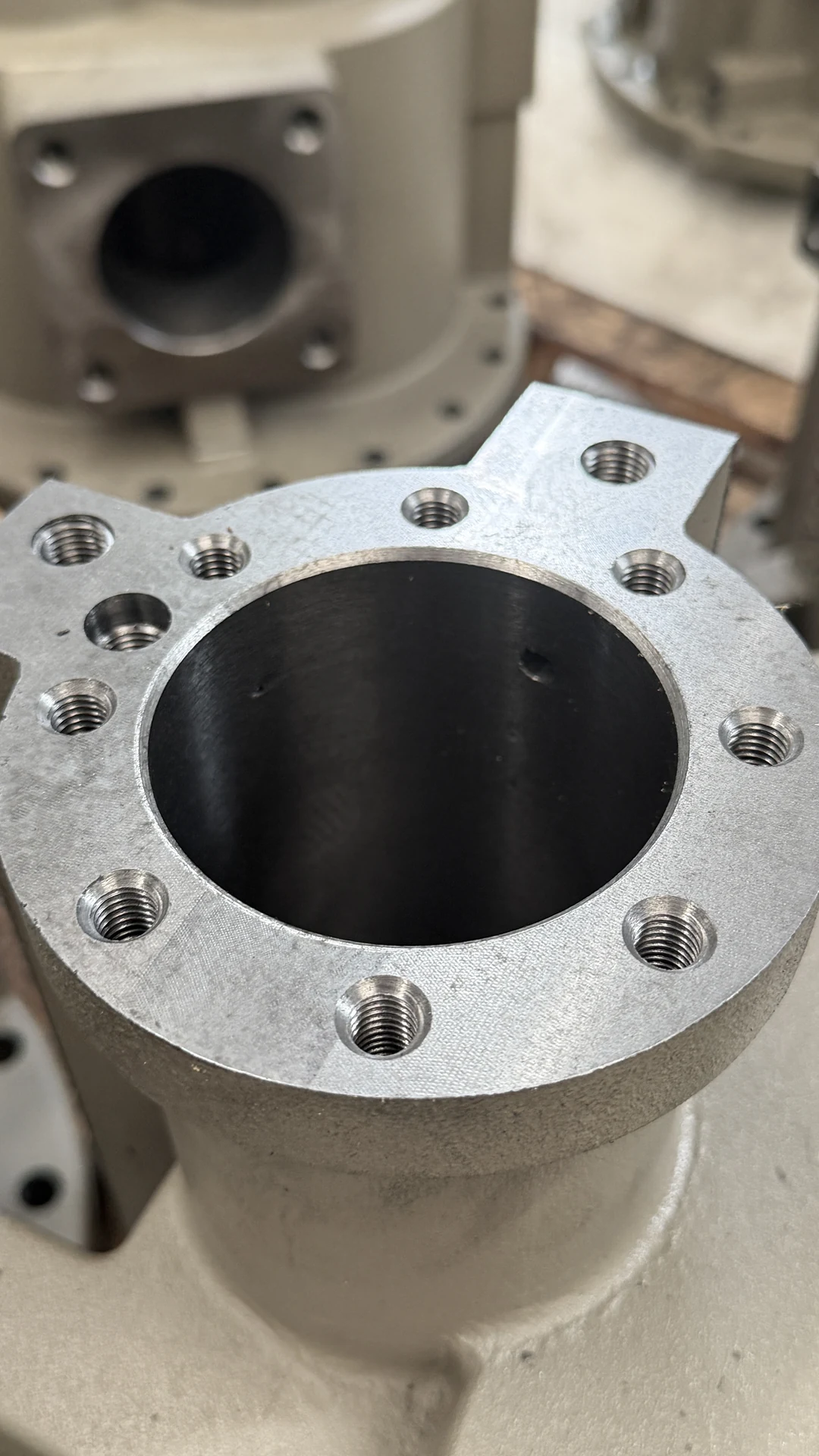

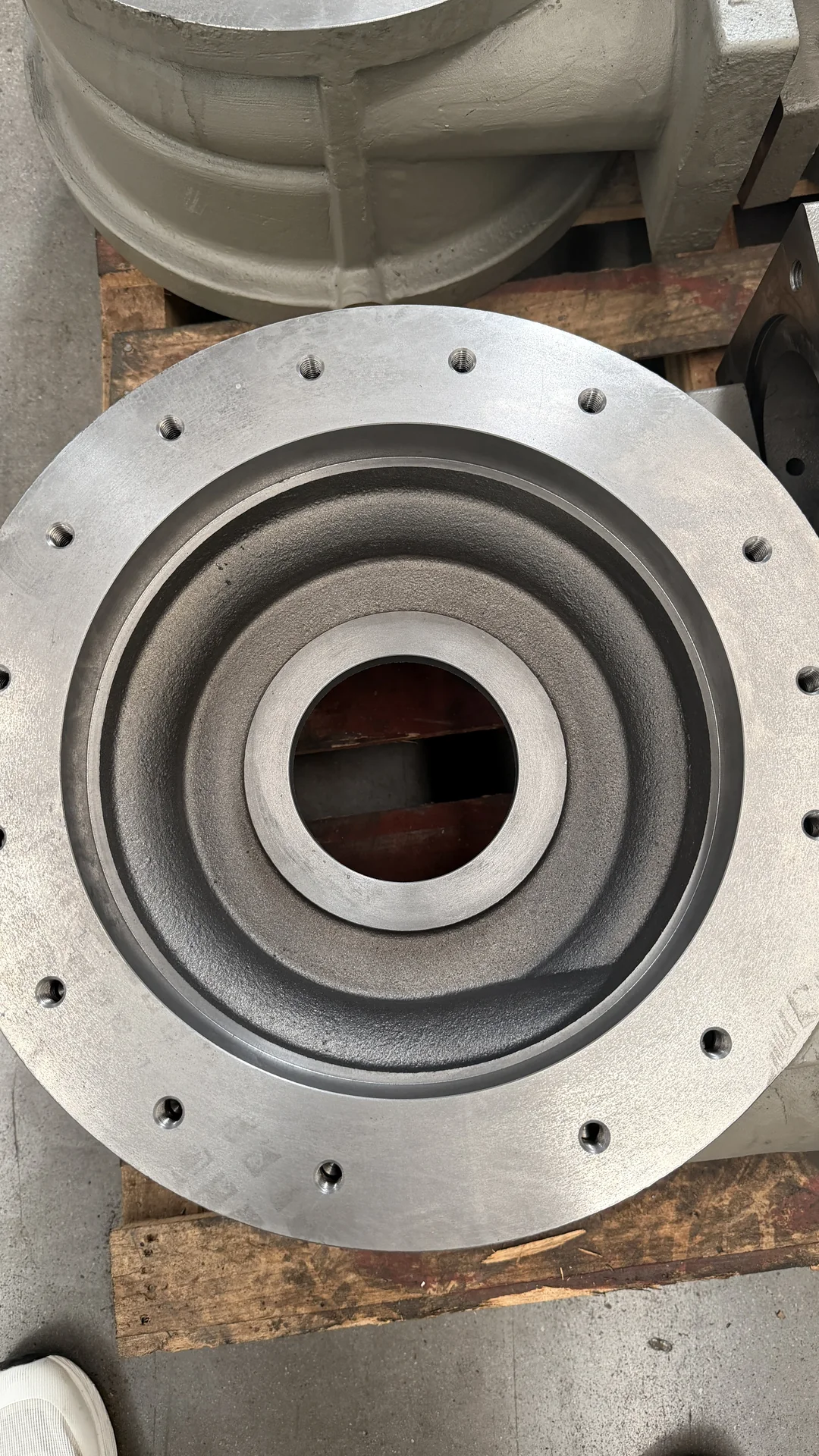

These production photographs document representative HT250 motor housing castings in batch staging and machining. They show the cylindrical body, ribbed exterior, internal cavity, machined flange faces, mounting holes, bores and threaded interfaces.
For a new project, Anxin reviews the customer drawing, material standard, machining datums, critical fits, geometric tolerances, surface finish, inspection scope and annual demand.
Supply condition may be agreed as as-cast, rough-machined or finish-machined after technical review. The photographs document representative components and do not indicate stock availability or interchangeability with another manufacturer's parts.
