Large chuck body castings
Large cast chuck bodies for workholding applications, with project-specific material and machining requirements.
| Material | Confirmed during technical review |
|---|---|
| Reference casting weight | 930 kg |
| Process | Resin sand casting |
| Specification | Customer drawing and agreed revision |
| Delivery condition | Casting / machining scope subject to review |
Have a similar part? Share your drawing for assessment.
Intermediate machining from casting to semi-finished chuck body.

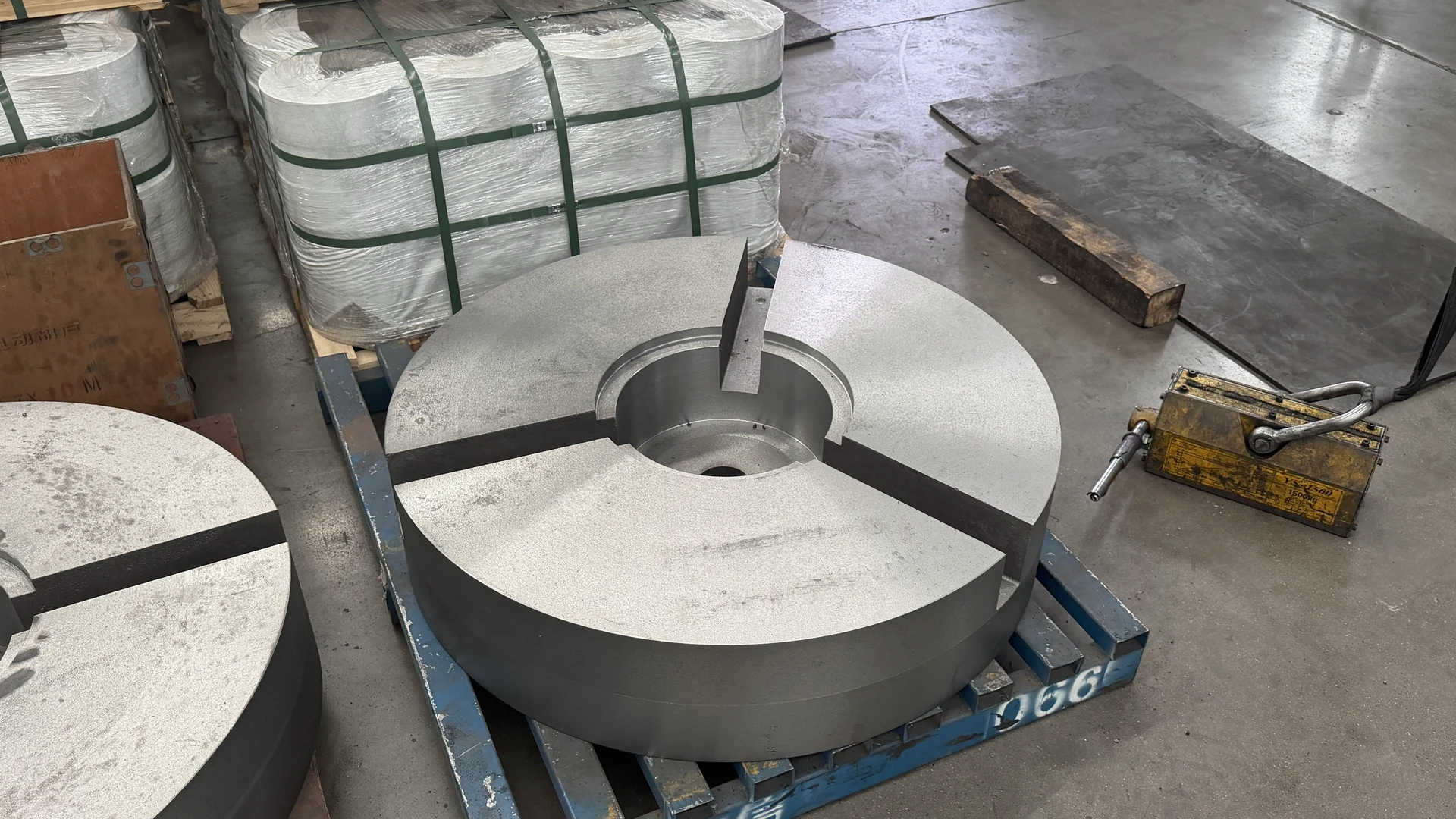

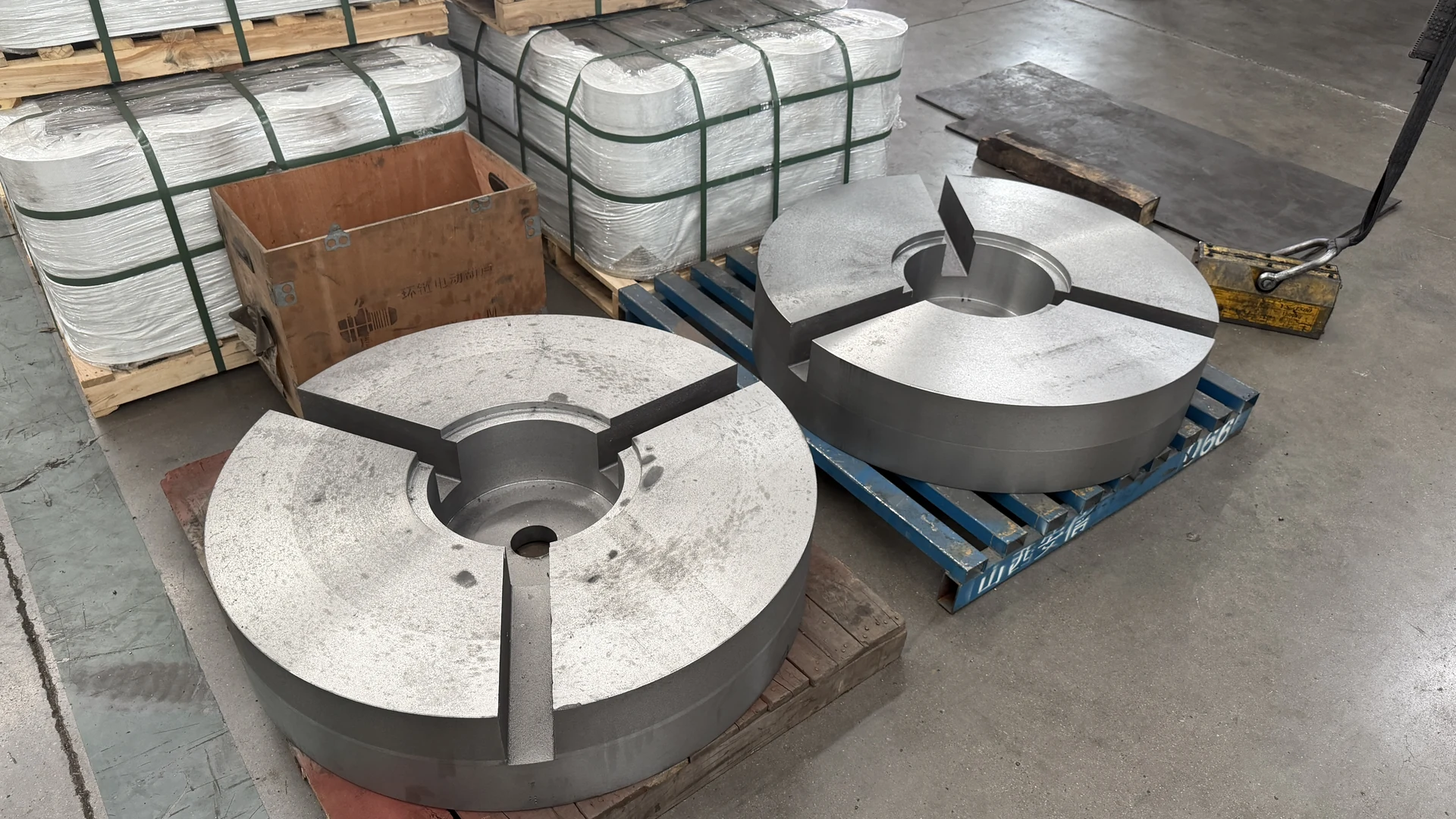

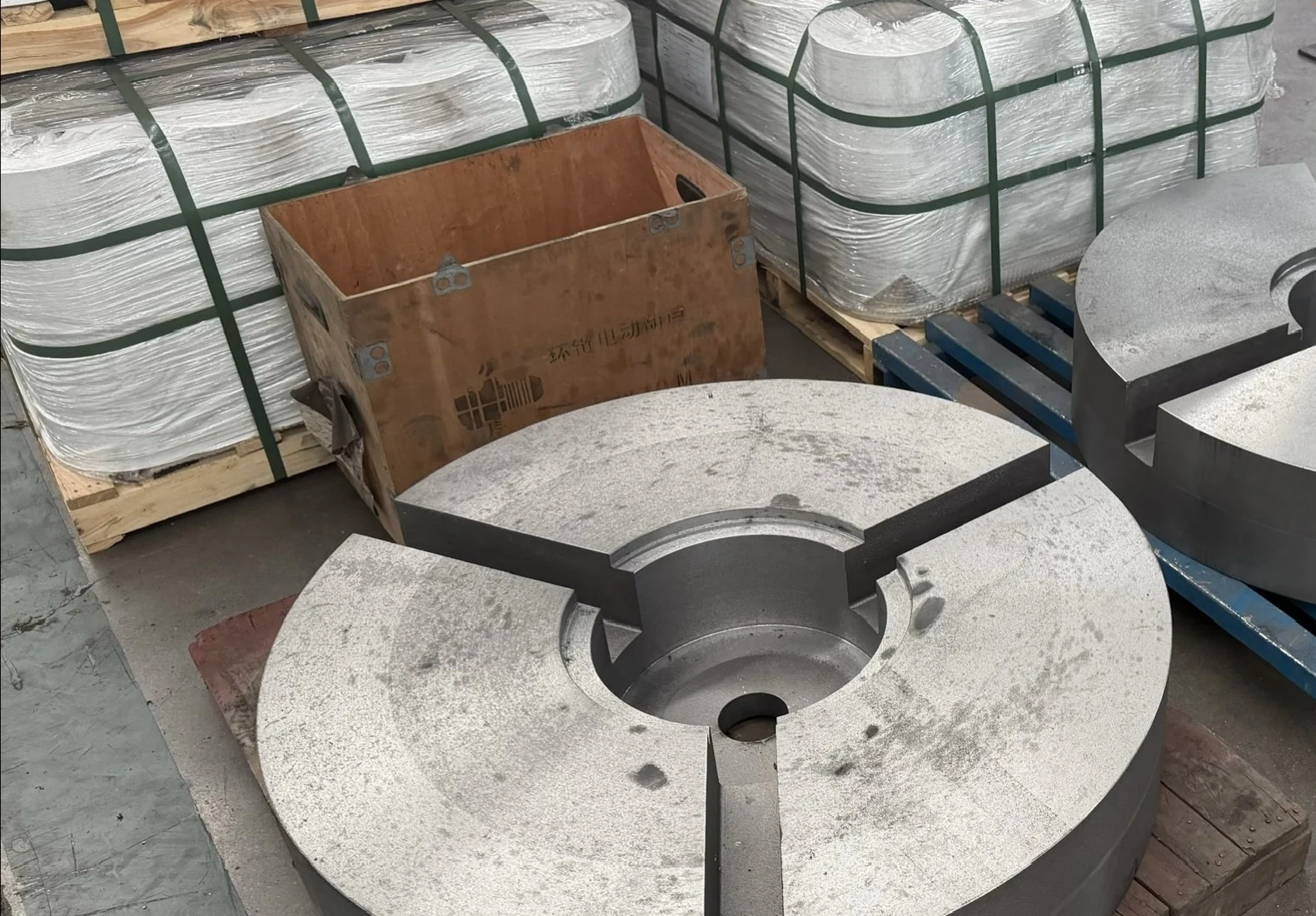

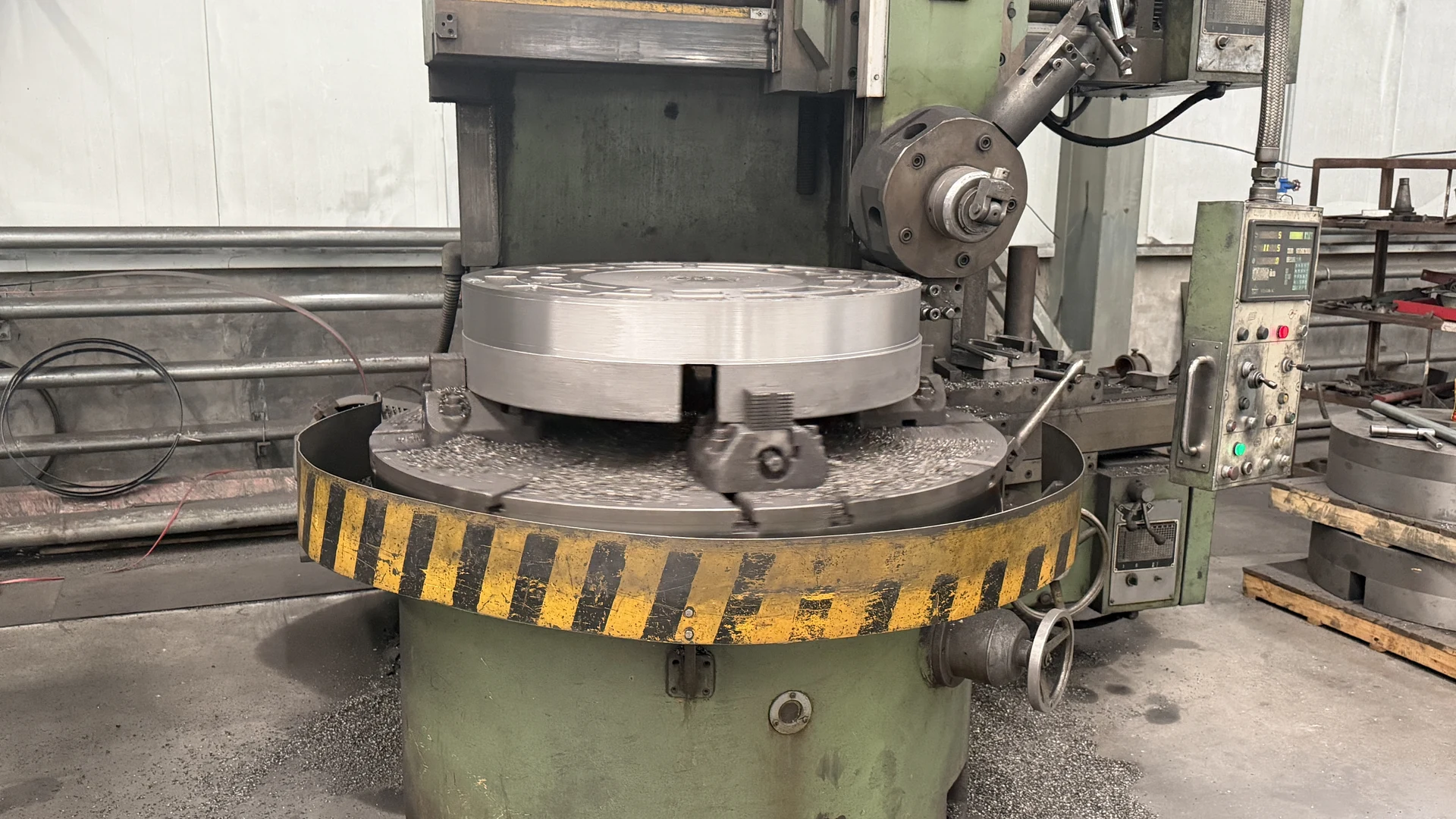

These photographs show rough-machined faces, the central bore and radial slots of large chuck bodies, together with batch staging and vertical-lathe machining. Final dimensions, tolerances and delivery condition are defined after drawing review.
Define the part.
Agree the details.
This representative component illustrates our drawing-based manufacturing experience. Geometry, material standard, tooling, order quantity and inspection requirements are reviewed for each new project.
Supply can be discussed as an as-cast, rough-machined or finish-machined component, subject to technical review. Include critical dimensions, surface finish and any leak-test requirements in your enquiry.
Displayed weights refer to the illustrated reference casting, where available, and are not a general manufacturing limit. Components are quoted to specification; this page does not indicate stock availability or interchangeability with another manufacturer’s parts.
