REPRESENTATIVE COMPONENT / MADE TO DRAWING
HT300 Machine Tool Chuck
Anxin-manufactured HT300 three-jaw machine tool chuck with documented finished assembly, jaws, mounting interfaces and critical machined details. Model and accuracy requirements are confirmed through drawing review.
| Material | HT300 |
|---|---|
| Reference casting weight | 13.9 kg |
| Process | Sand-coated iron mold casting |
| Specification | Customer drawing and agreed revision |
| Delivery condition | Casting / machining scope subject to review |
Have a similar part? Share your drawing for assessment.
From the complete chuck to jaw and mounting-interface details.

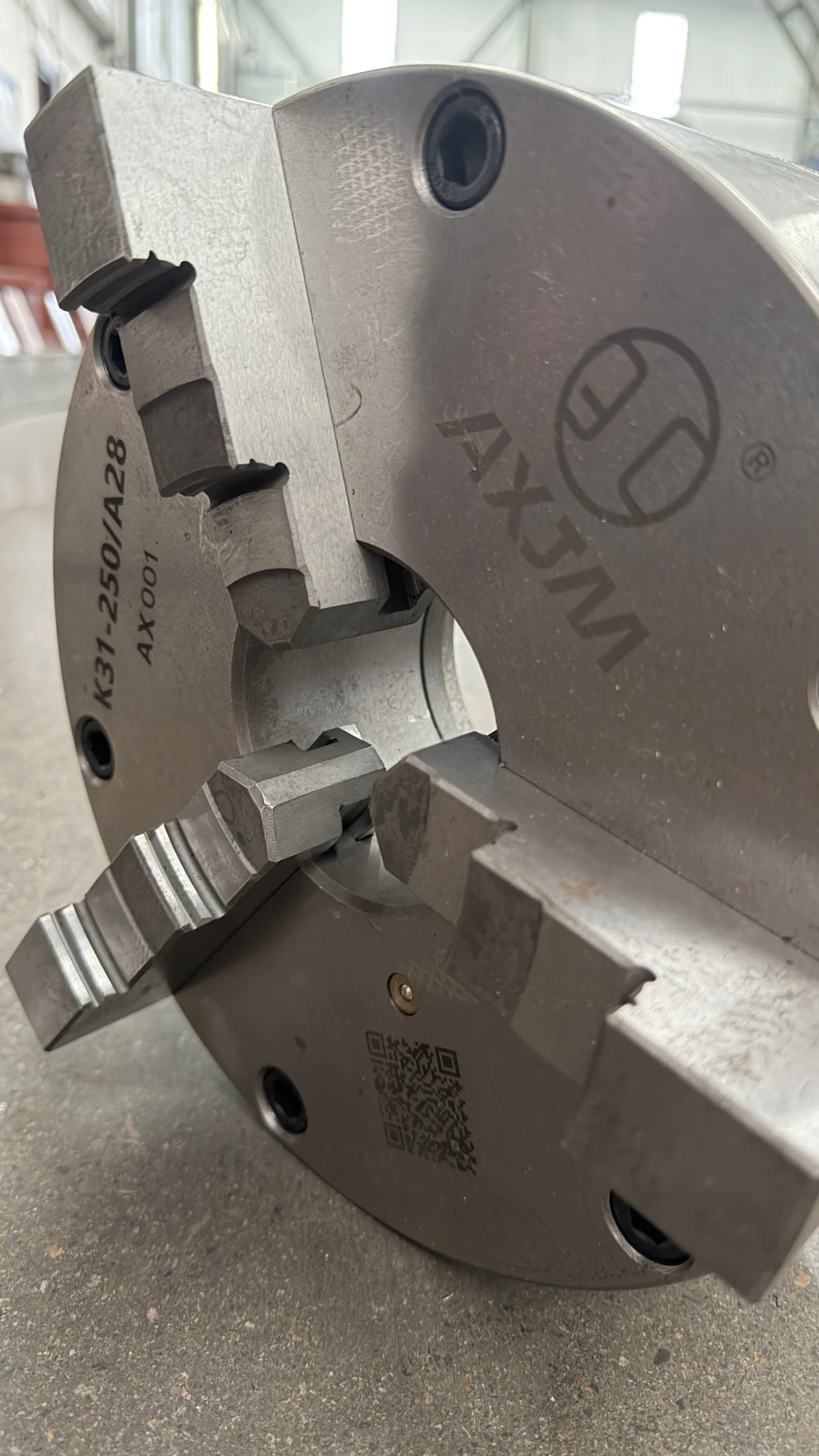

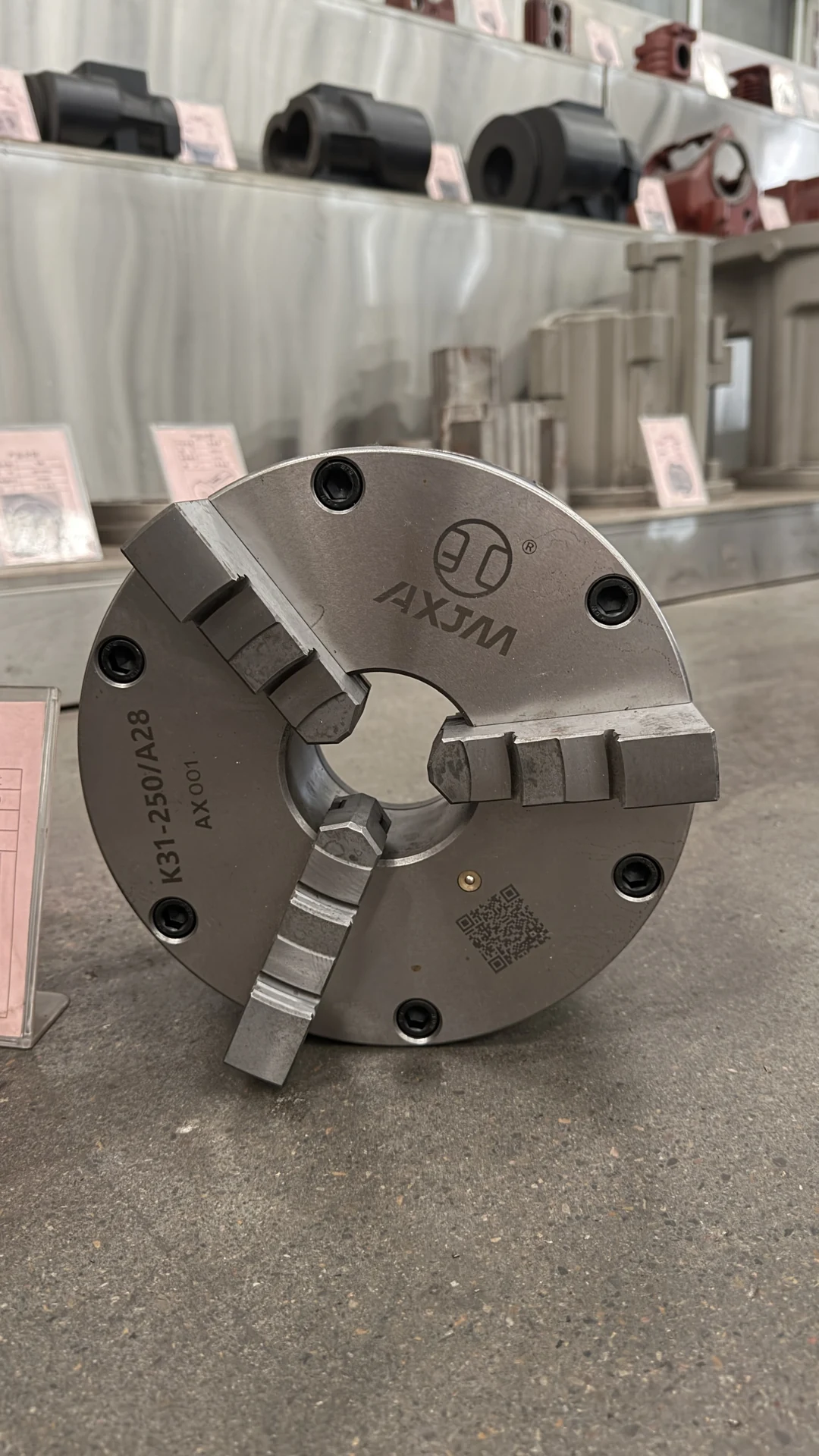

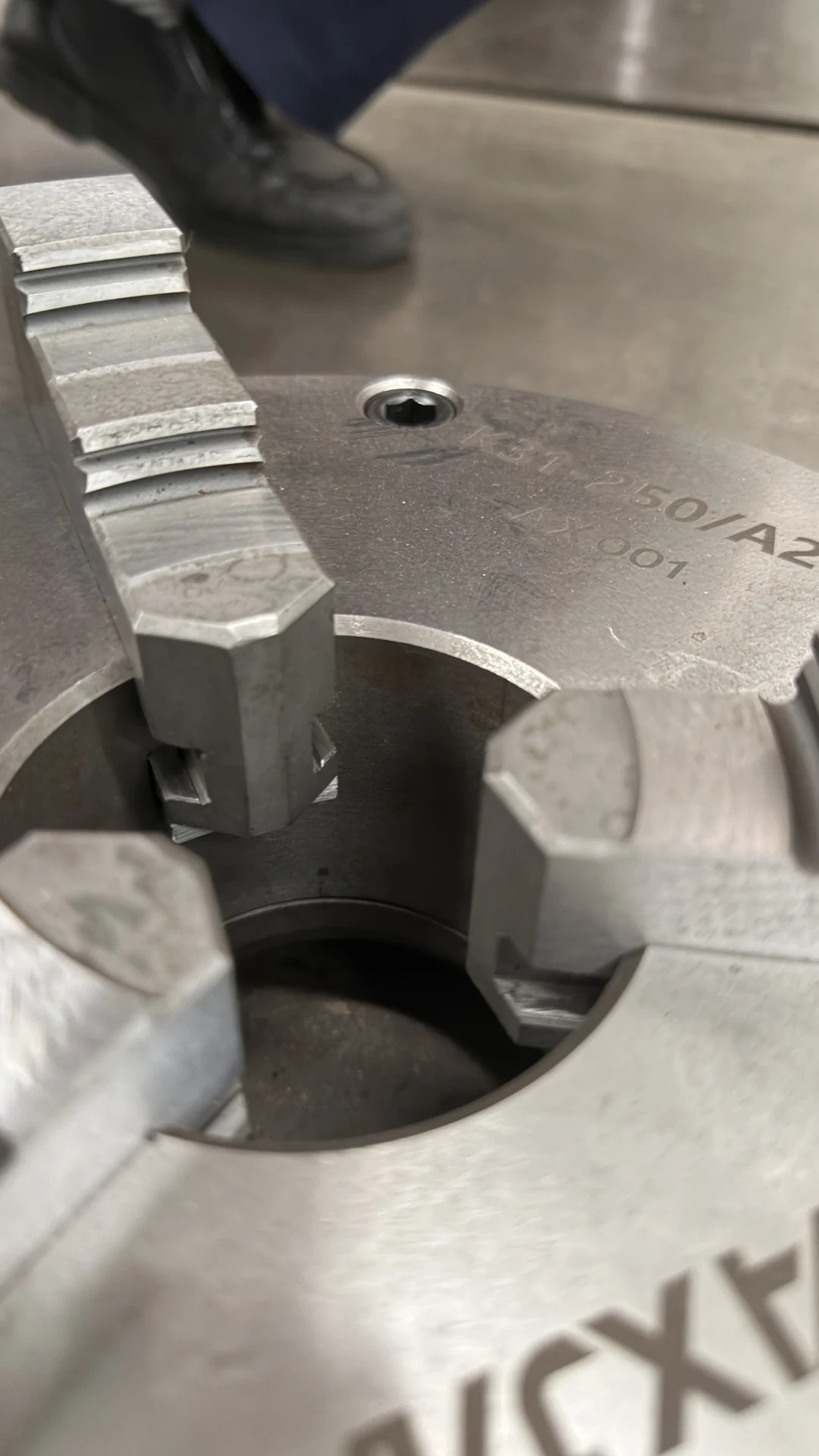

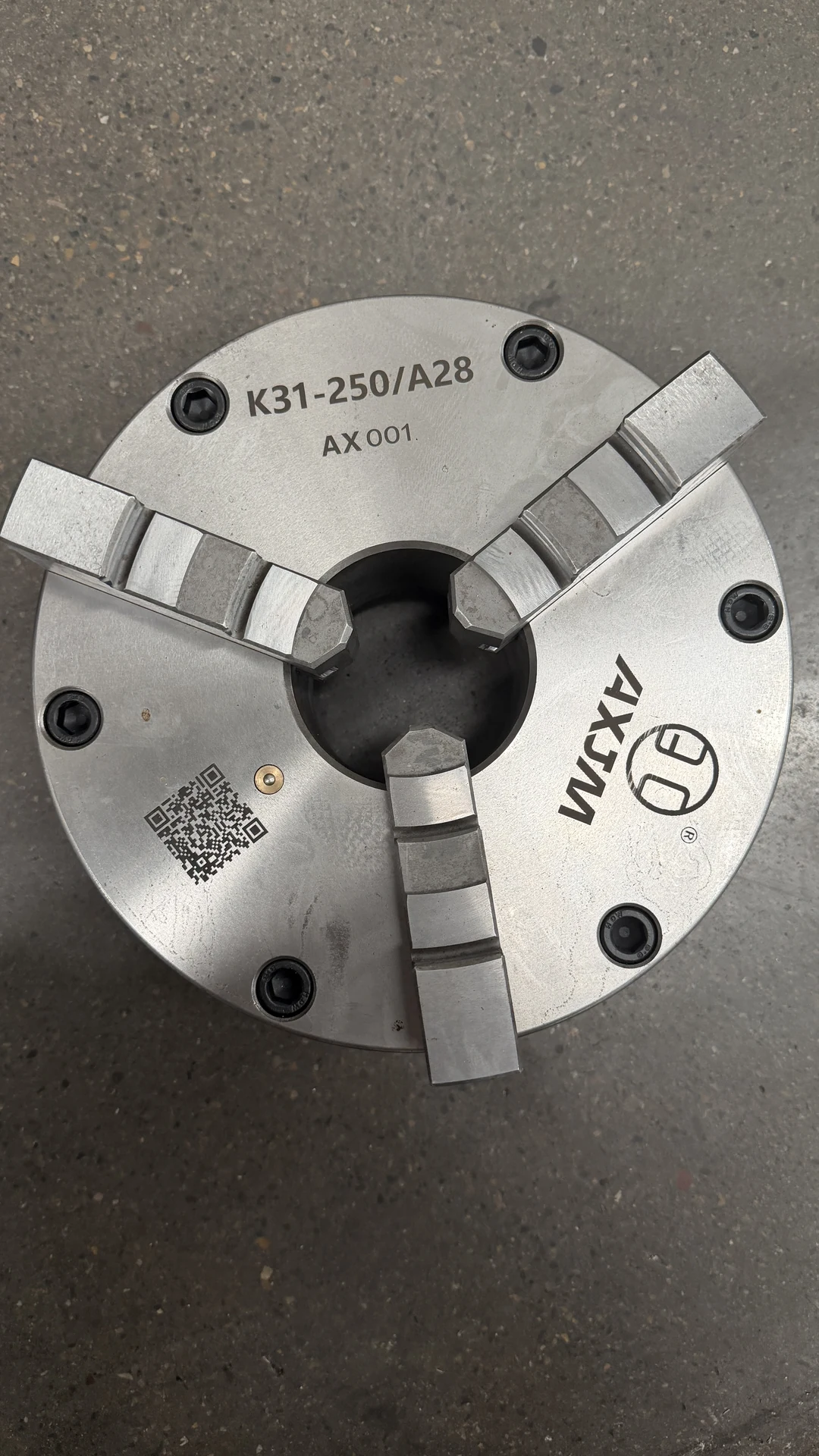

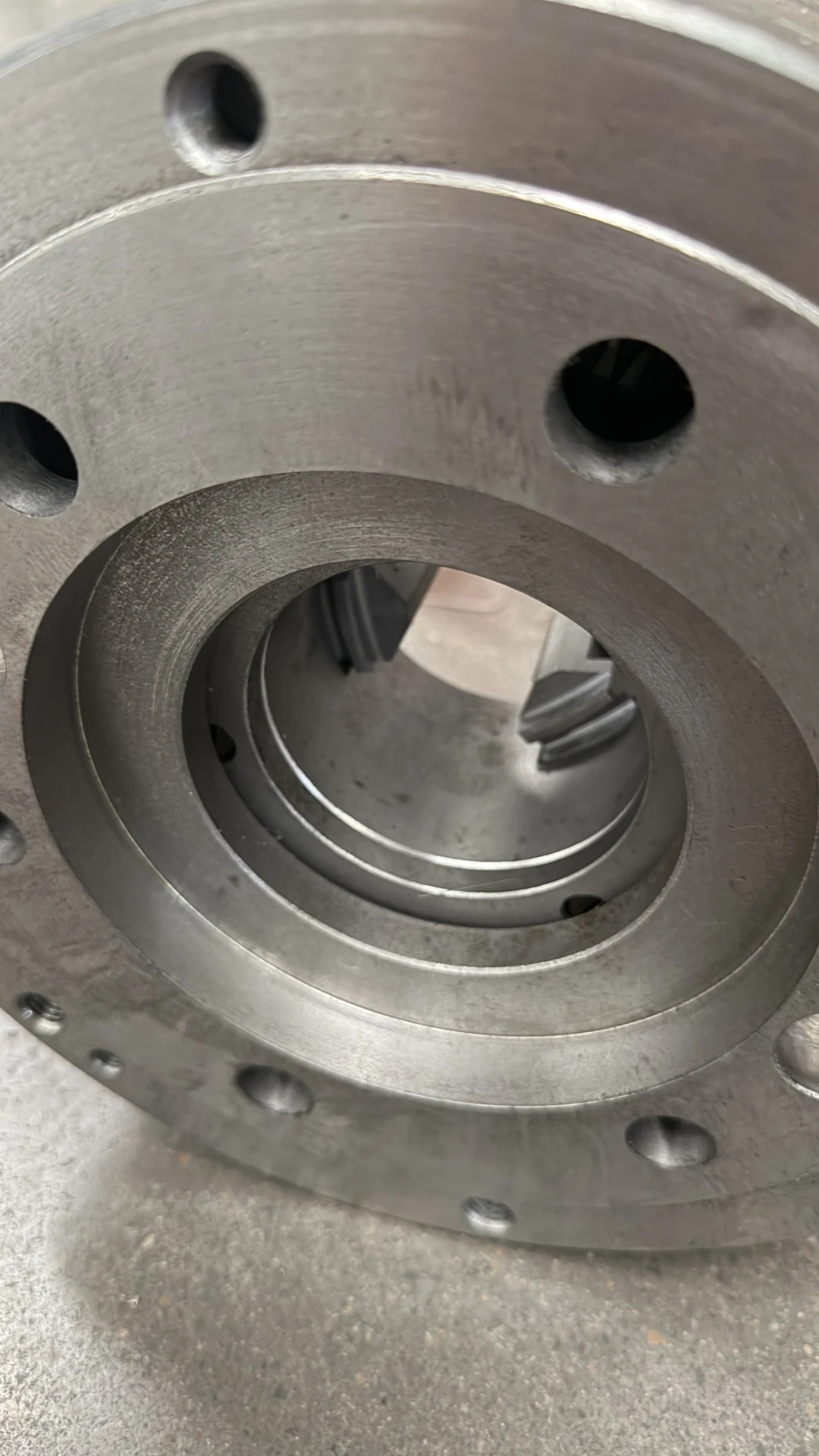

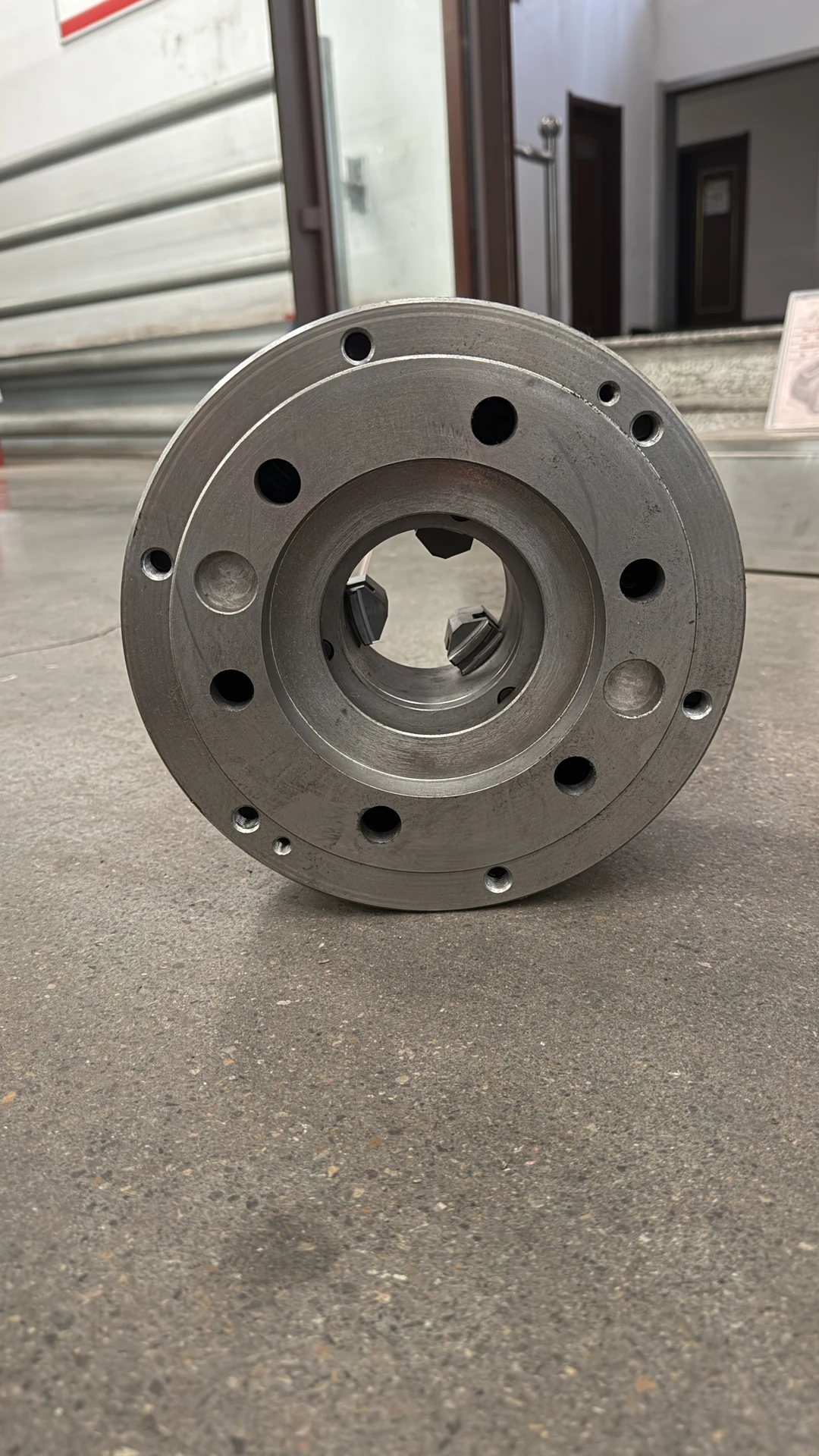

These photographs show the complete HT300 machine tool chuck, three-jaw arrangement, jaw serrations, central bore, rear mounting holes and machined internal details. Model, dimensions, tolerances and delivery condition are defined through drawing and technical review.
Define the part.
Agree the details.
This representative component illustrates our drawing-based manufacturing experience. Geometry, material standard, tooling, order quantity and inspection requirements are reviewed for each new project.
Supply can be discussed as an as-cast, rough-machined or finish-machined component, subject to technical review. Include critical dimensions, surface finish and any leak-test requirements in your enquiry.
Displayed weights refer to the illustrated reference casting, where available, and are not a general manufacturing limit. Components are quoted to specification; this page does not indicate stock availability or interchangeability with another manufacturer’s parts.
Prepare your casting RFQ ↗
