HT250 Compressor Crankcase Casting
Actual production photographs of an HT250 gray iron compressor crankcase, showing batch staging, coated surfaces, internal cavities, flange faces, bores and CNC machining. Custom made to drawing.
| Material | HT250 |
|---|---|
| Process | Casting and machining scope to customer drawing |
| Specification | Customer drawing and agreed revision |
| Delivery condition | Casting / machining scope subject to review |
Have a similar part? Share your drawing for assessment.

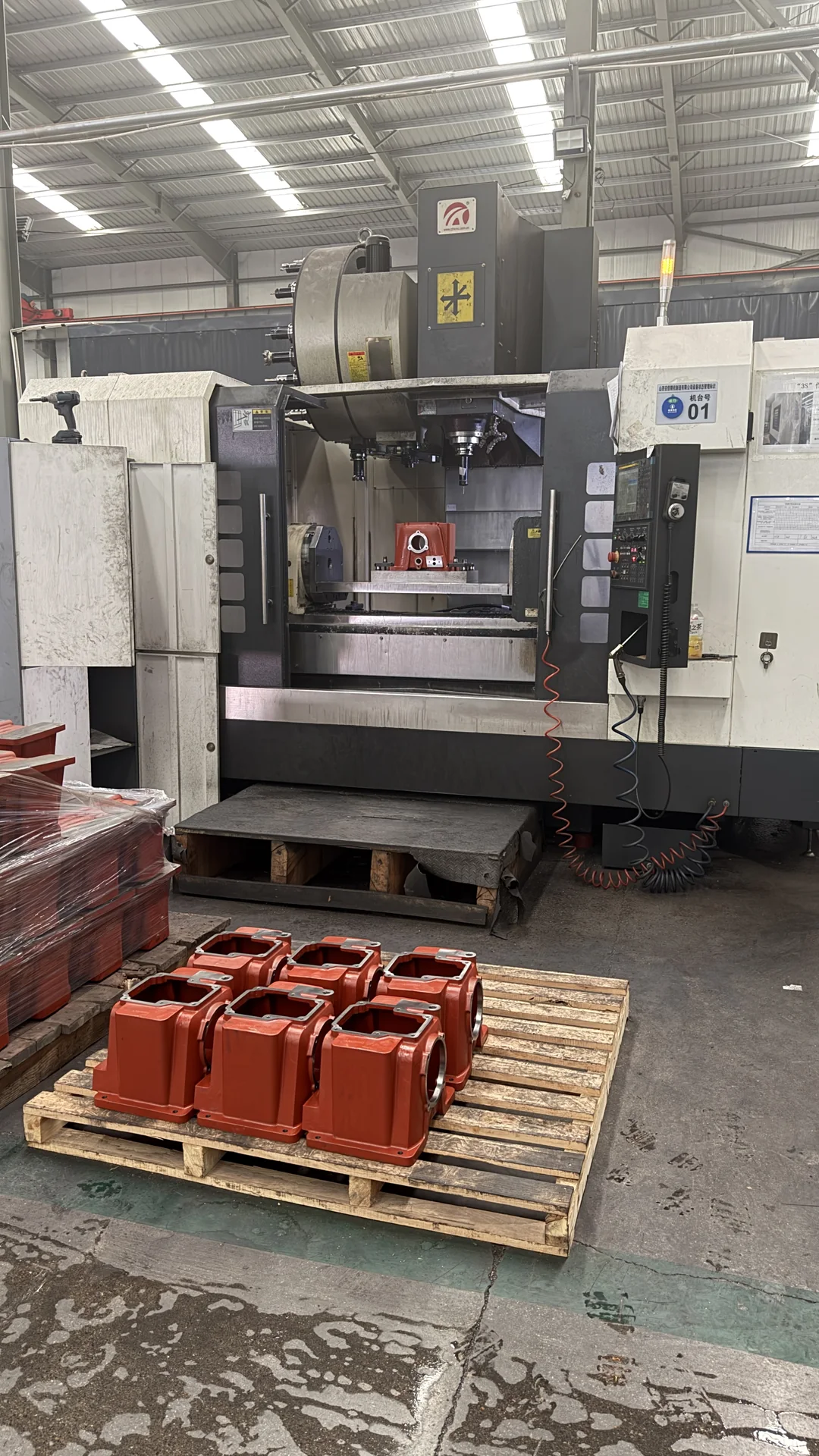

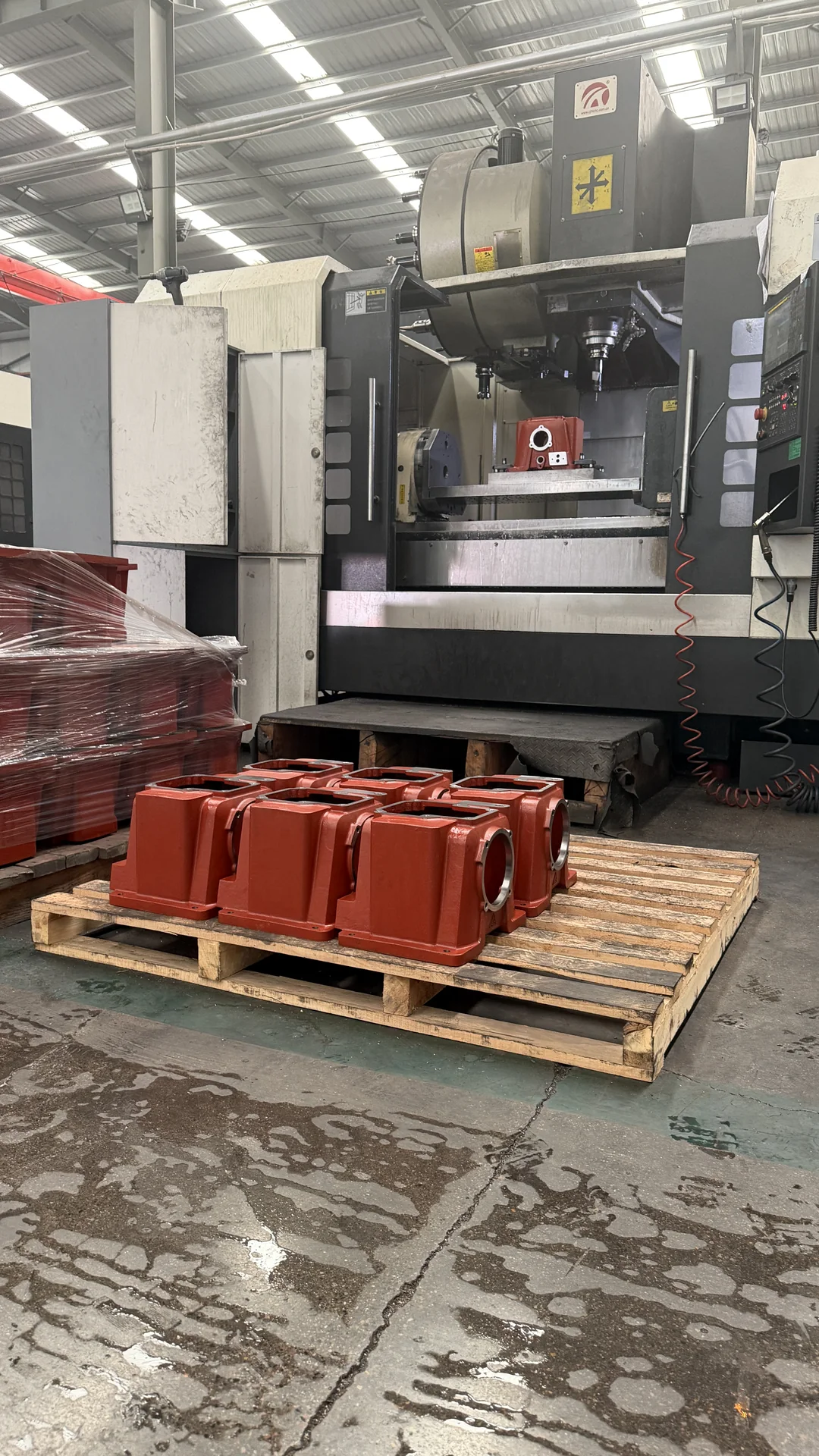

From batch staging to CNC machining.

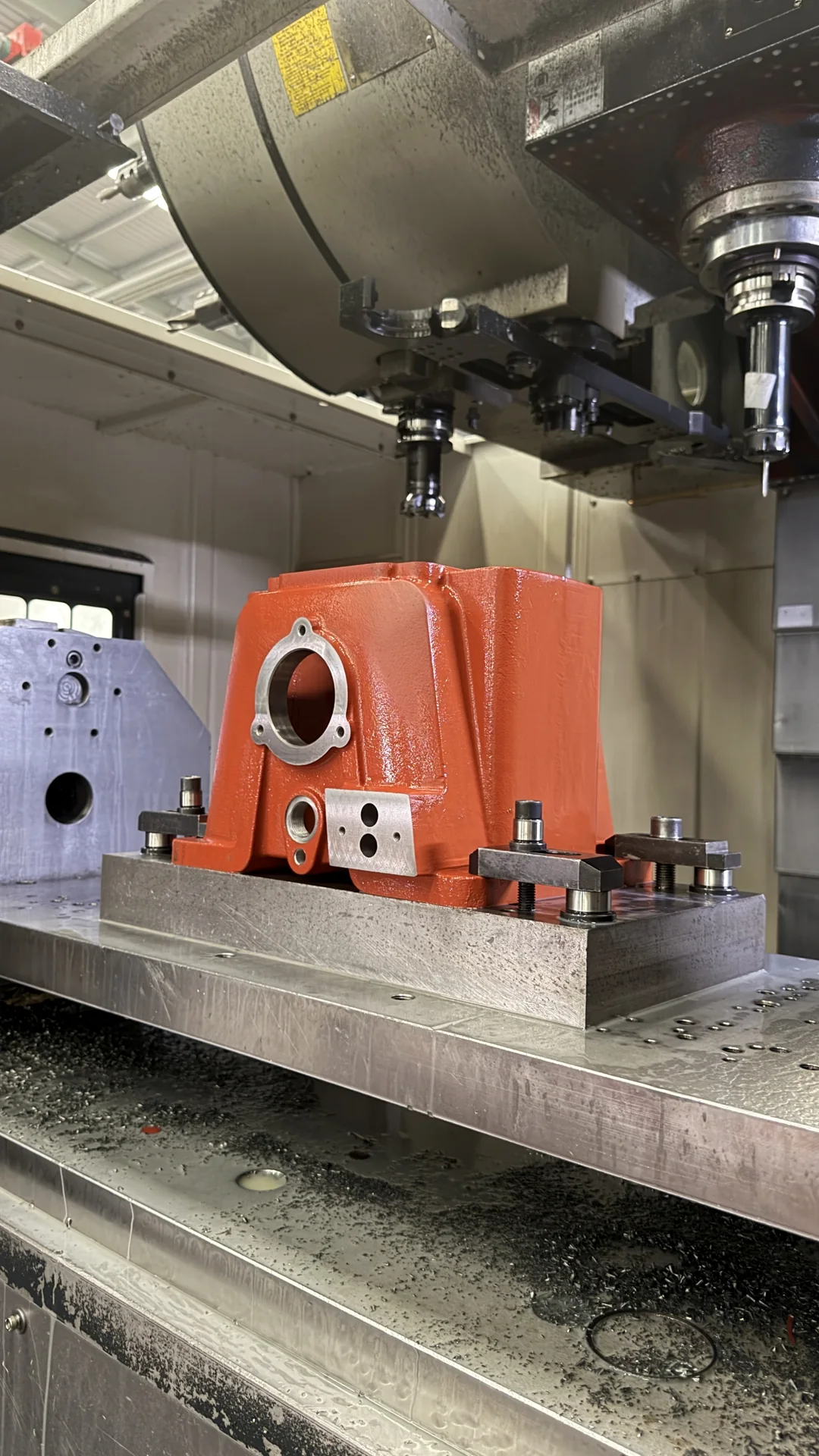

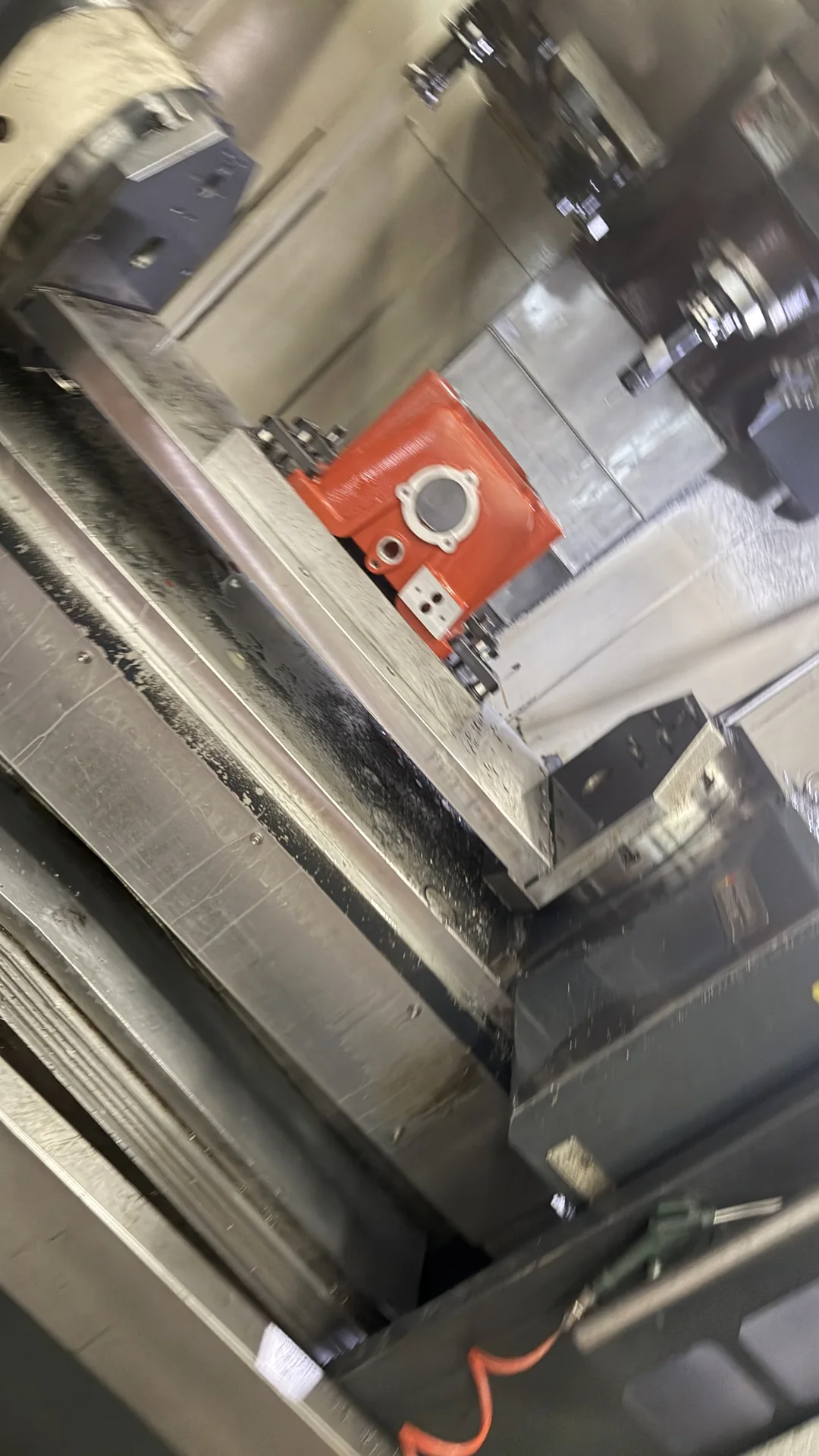

These photographs show HT250 compressor crankcases in batch production, coated surfaces, internal cavities, flange faces and bores, together with CNC setup and machining. Model, dimensions, tolerances, surface treatment and inspection scope are defined through drawing review.
Define the part.
Agree the details.

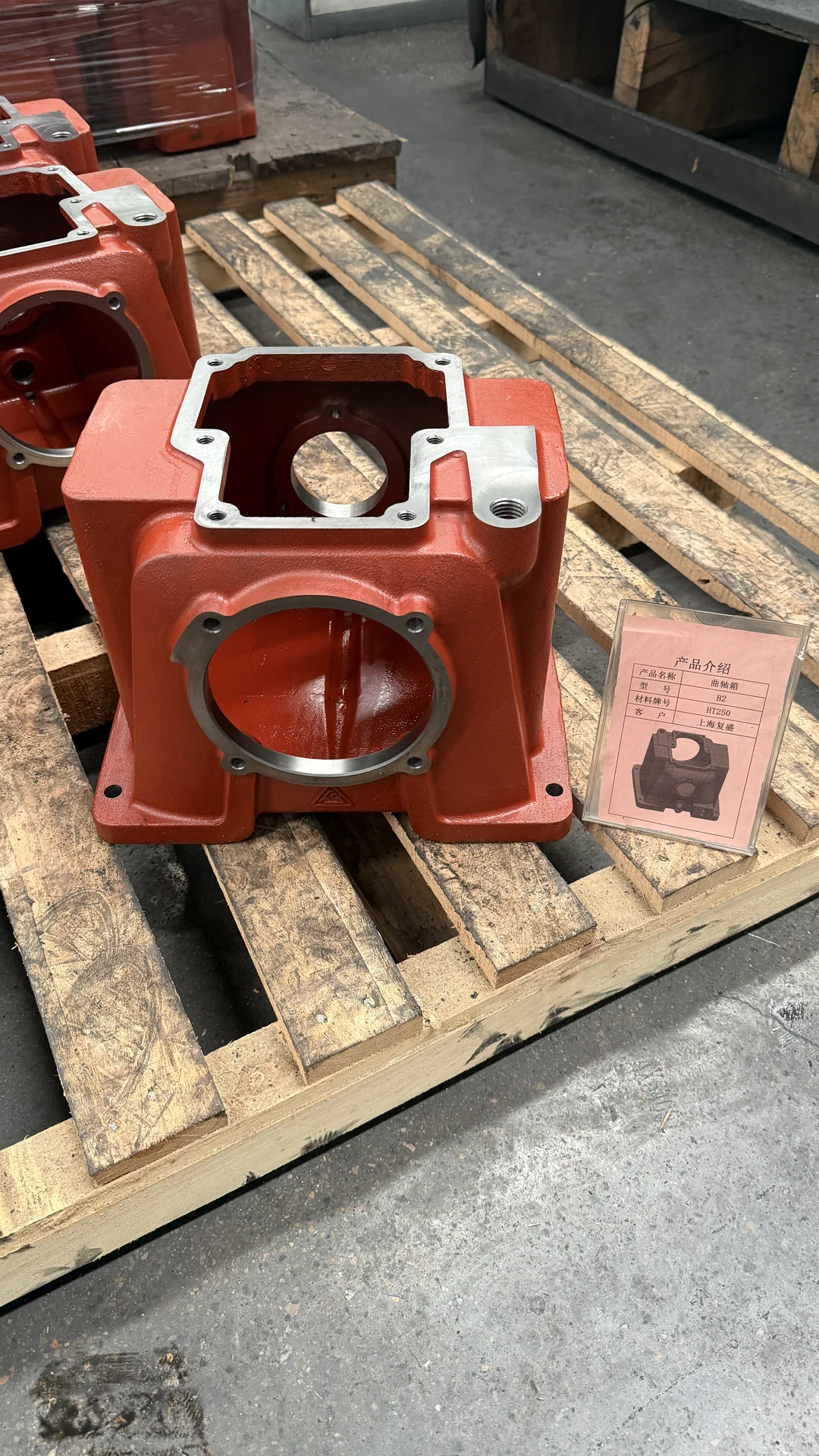

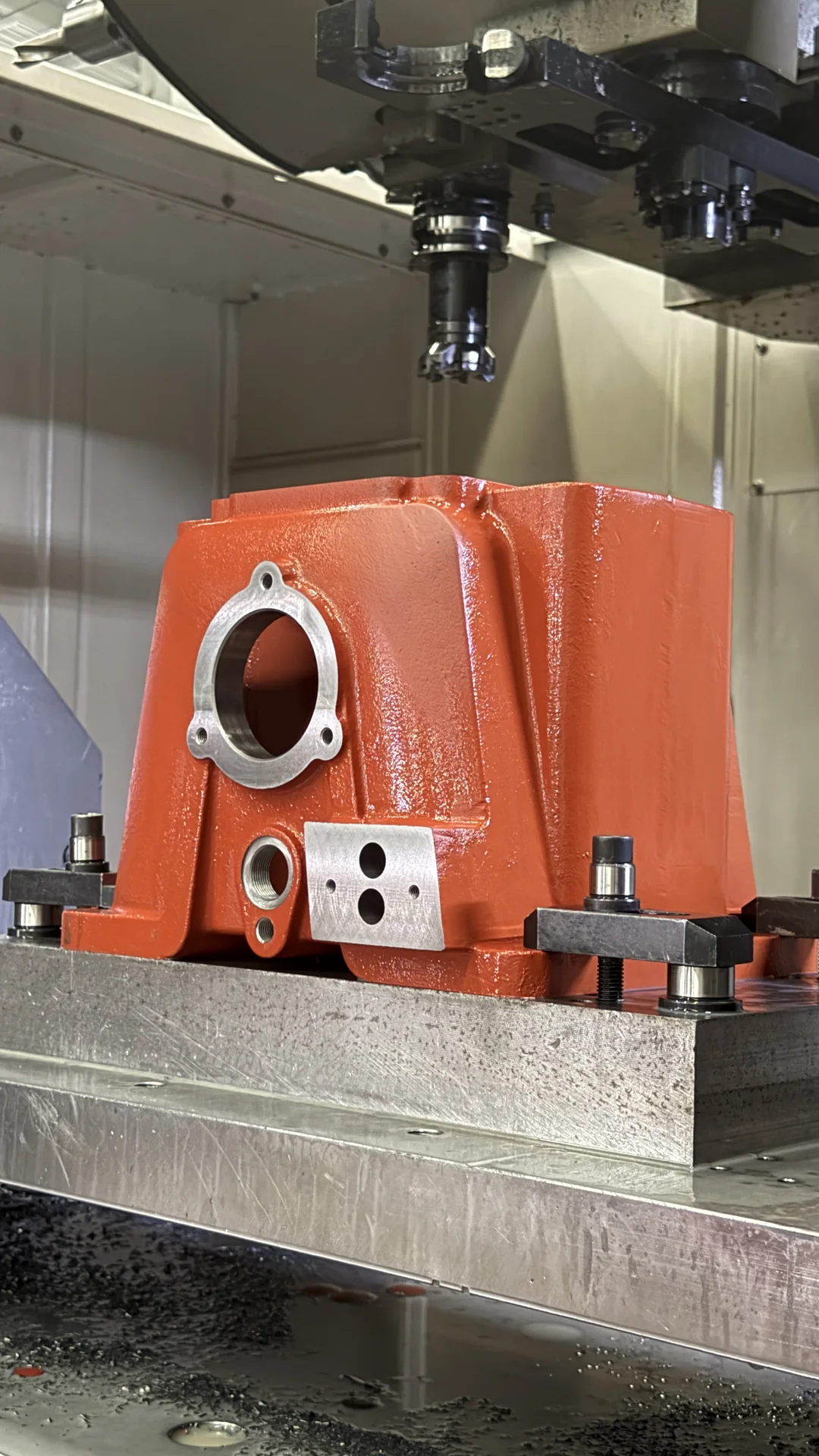

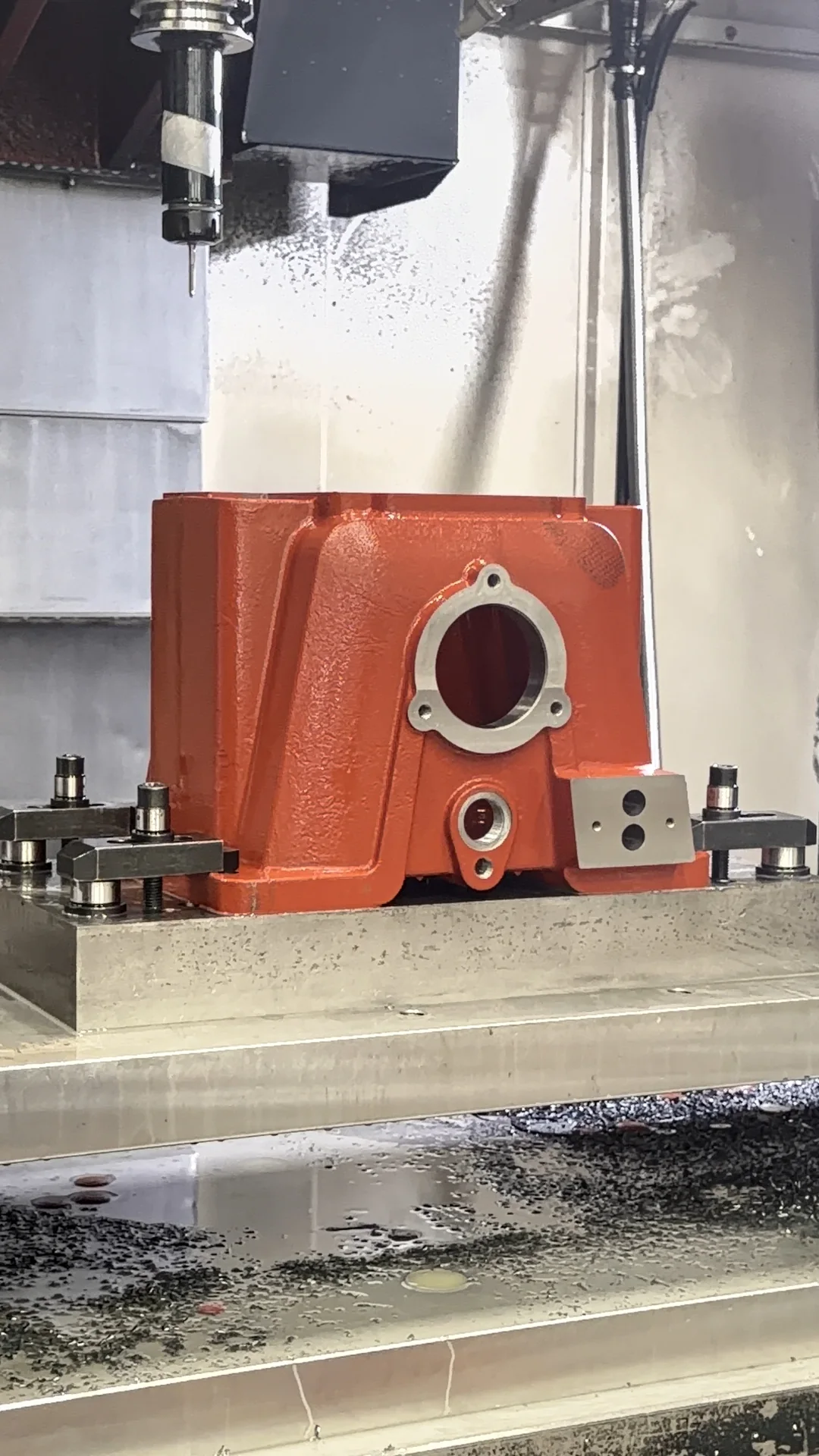

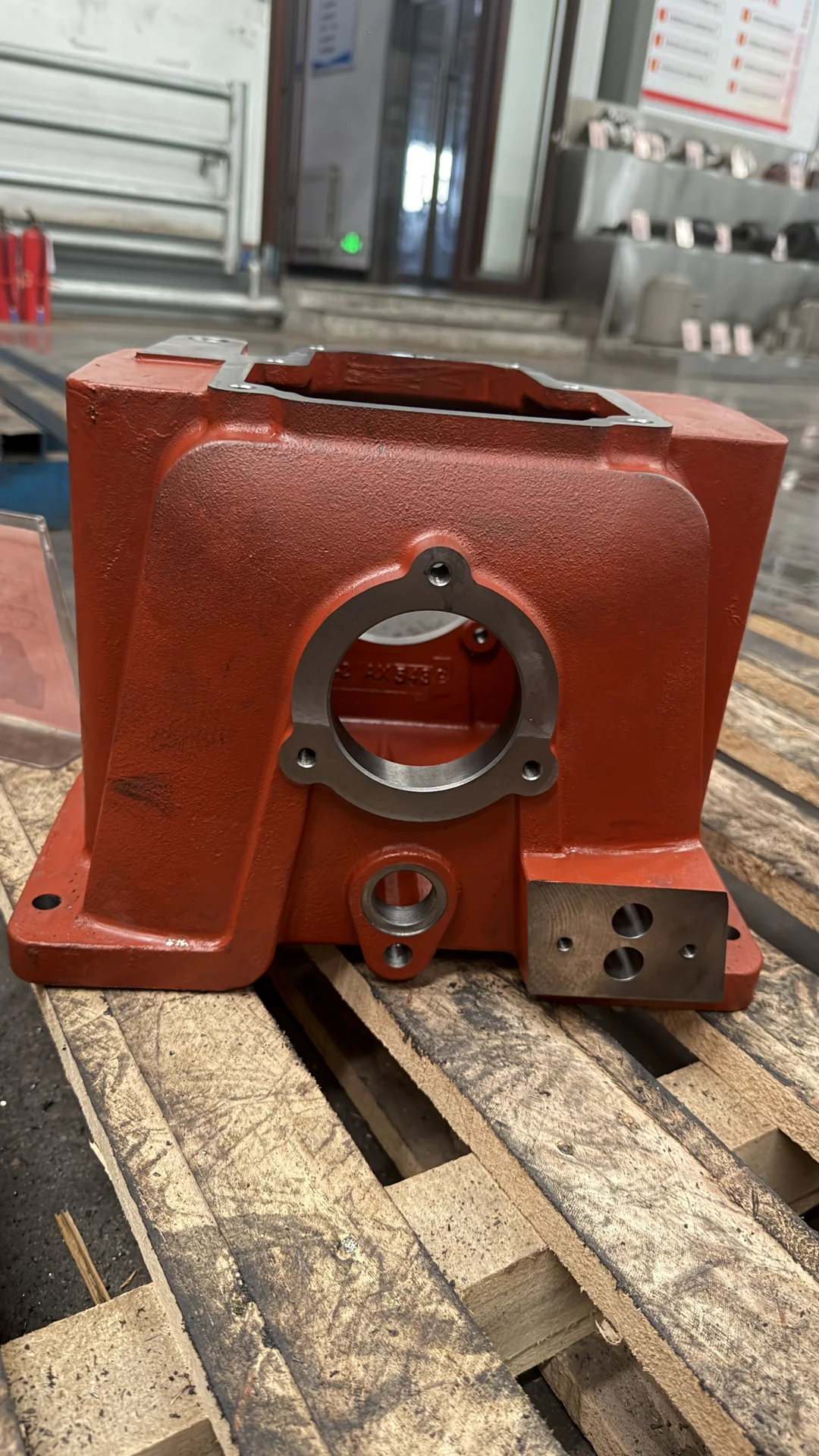

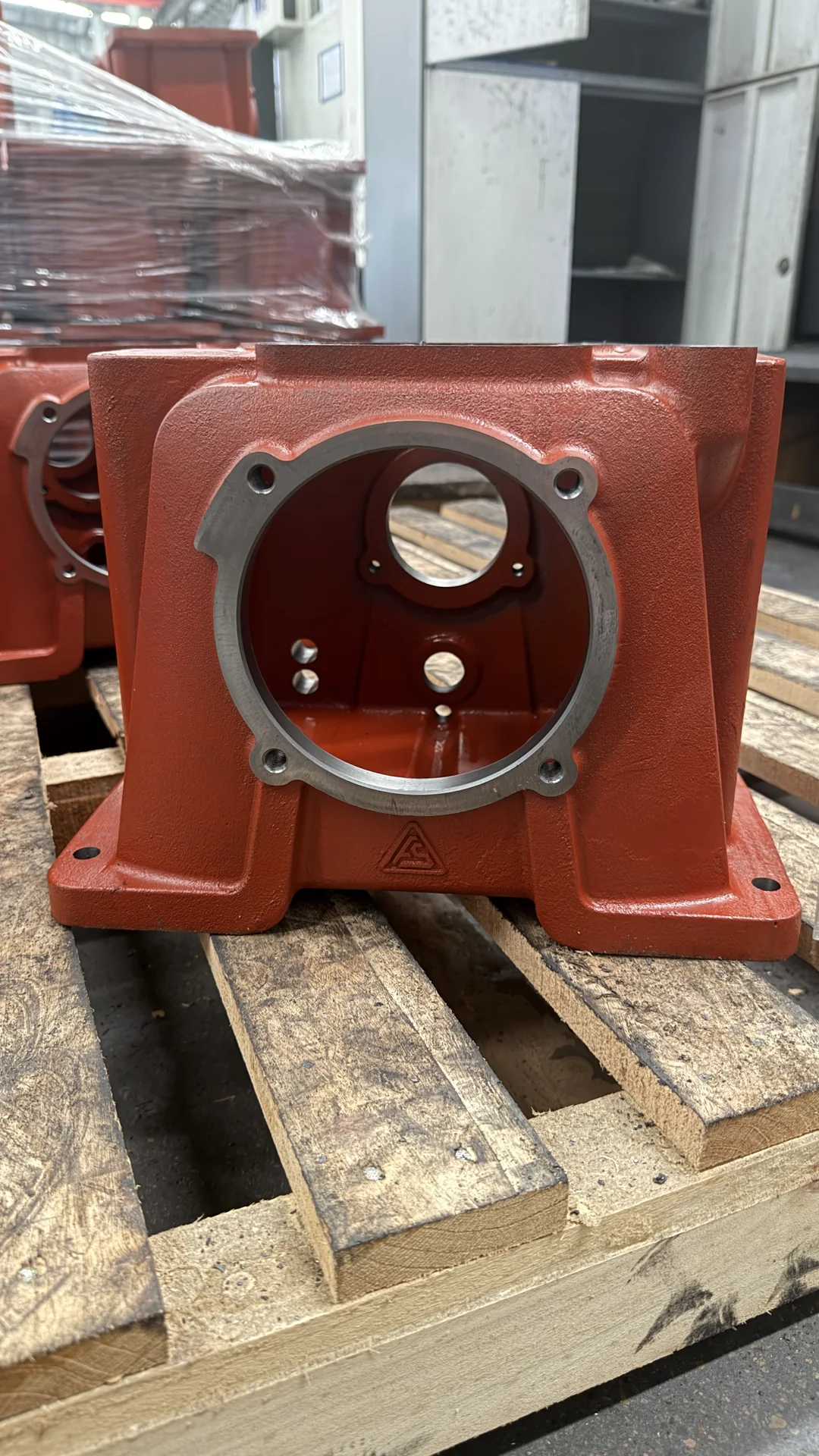

These production photographs document a representative HT250 gray iron compressor crankcase through batch staging and CNC machining. Visible features include the coated exterior, internal cavity, mounting feet, flange faces, bores and machined connection interfaces.
For a new project, Anxin reviews the customer drawing, material standard, machining datums, critical fits, geometric tolerances, surface treatment, inspection plan and annual demand.
Supply condition may be agreed as an as-cast, rough-machined or finish-machined component after technical review. The photographs document a representative component and do not indicate stock availability or interchangeability with another manufacturer's parts.
Prepare your casting RFQ ↗
