HT250 Bearing Housing Casting

Actual before-and-after production photographs of an HT250 gray iron bearing housing, showing the as-cast blank, batch production and finished machined faces, bores and multi-cavity geometry.

Reference component details
Material	HT250
Process	Casting and machining scope to customer drawing
Specification	Customer drawing and agreed revision
Delivery condition	Casting / machining scope subject to review

Enquire about this component ↗

Have a similar part? Share your drawing for assessment.

MACHINED HT250 BEARING HOUSING PHOTOS

From the finished batch to critical bores and mating surfaces.

These photographs show finished HT250 bearing housings in batch production, including machined faces, multi-cavity geometry, internal bores, mounting holes and side interfaces. Dimensions, tolerances, surface finish, geometric requirements and inspection scope are defined through drawing review.

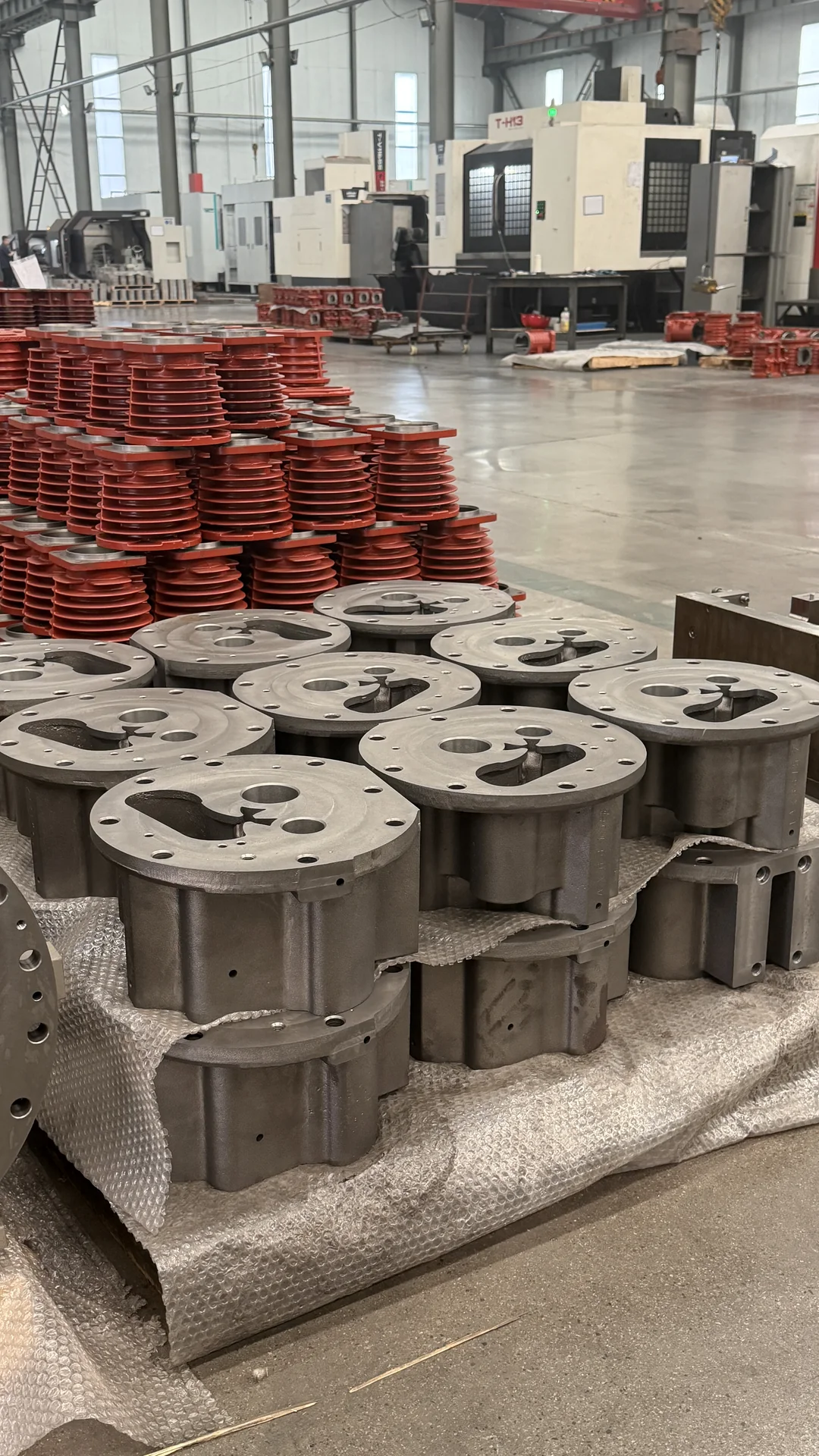

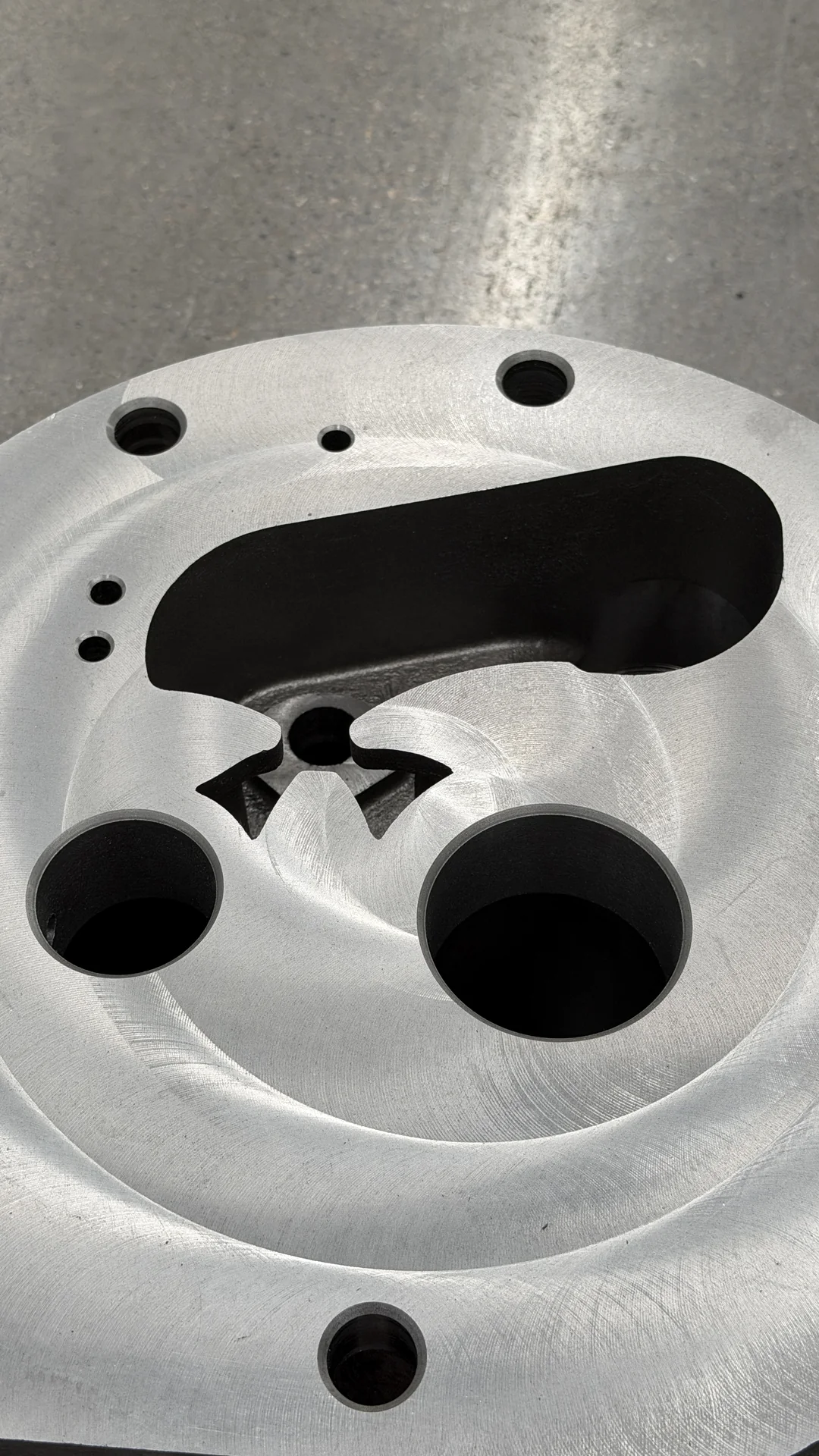

HT250 Bearing Housing Casting — machined HT250 bearing housing detail 1

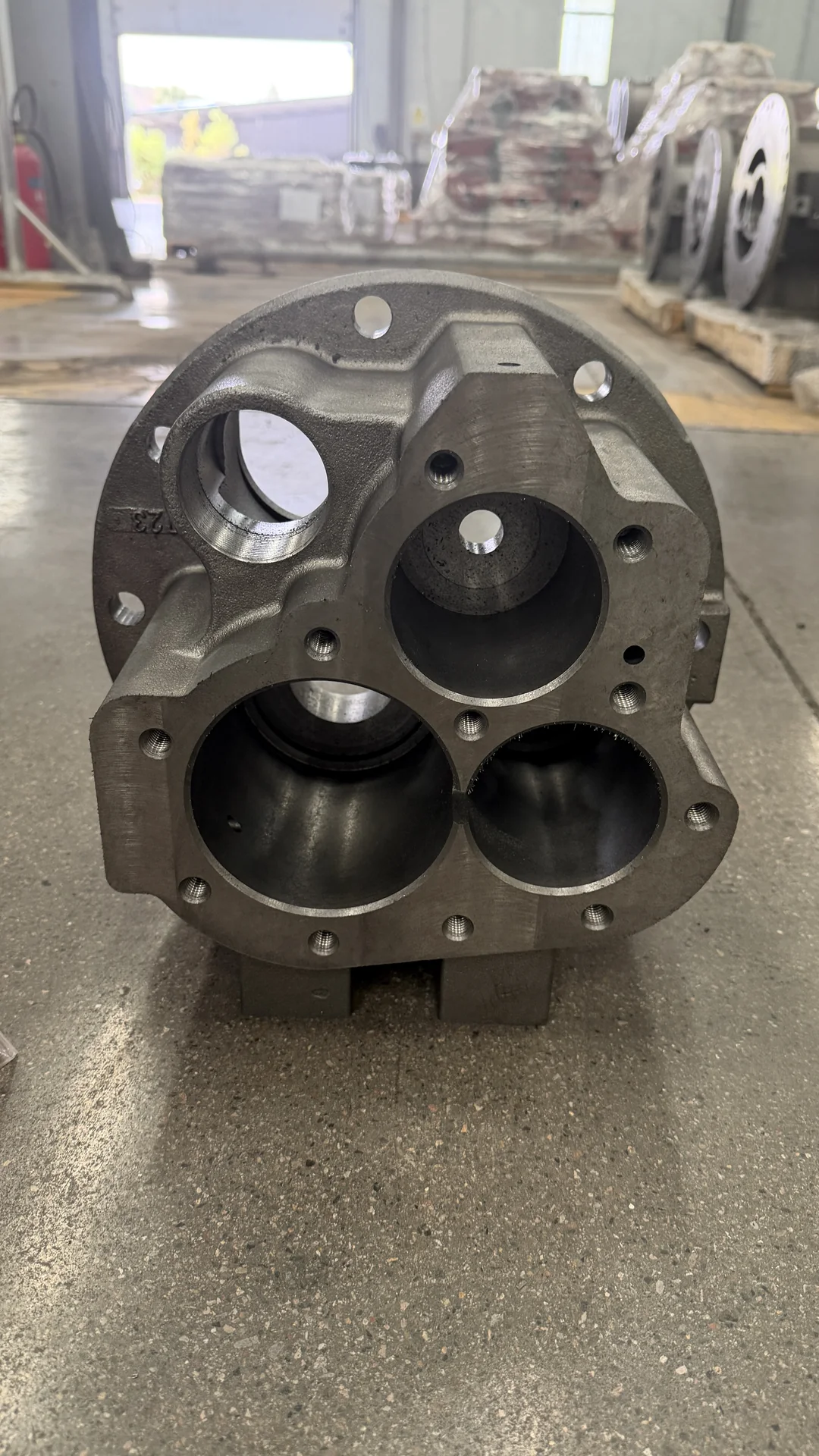

HT250 Bearing Housing Casting — machined HT250 bearing housing detail 2

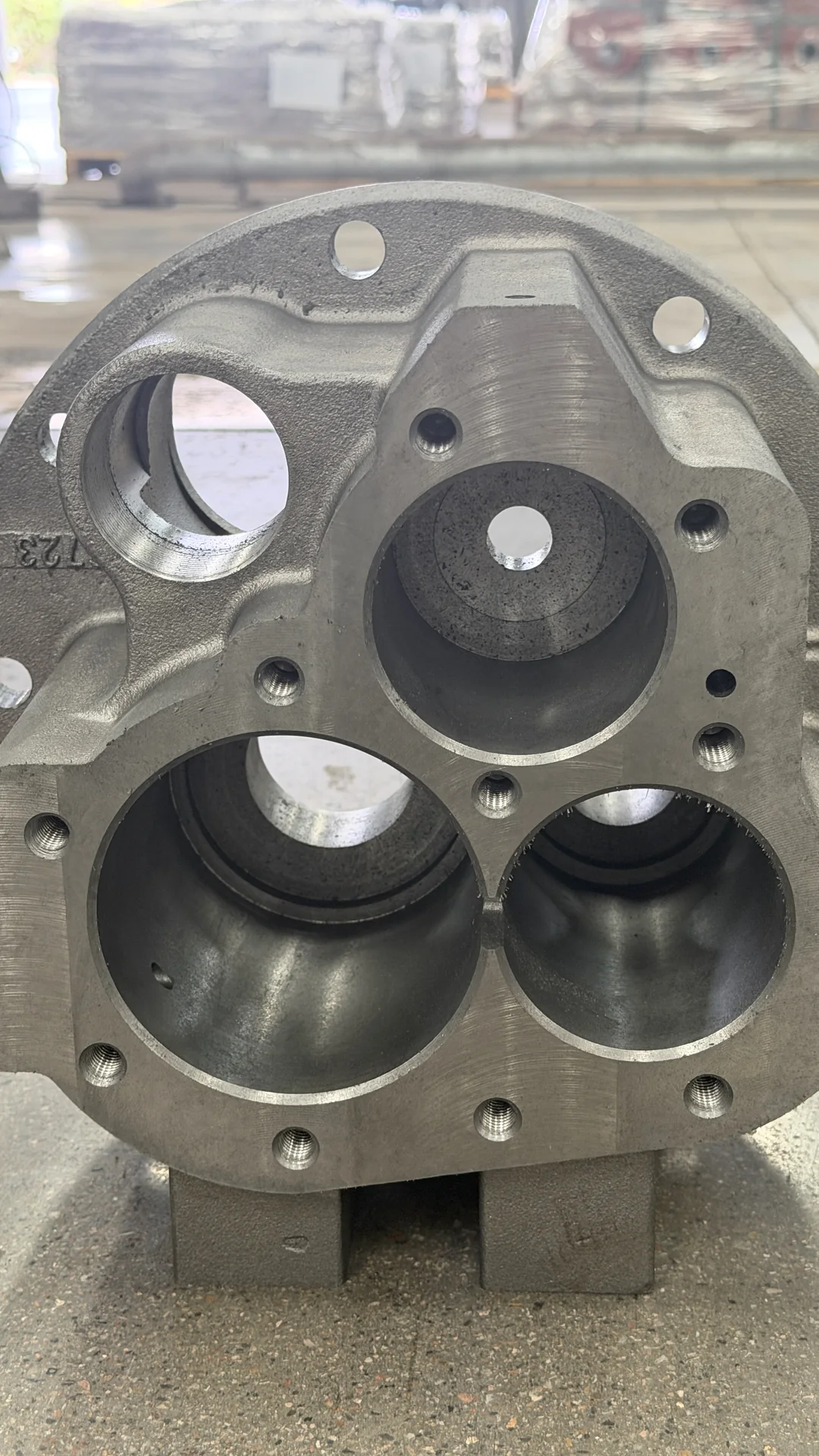

HT250 Bearing Housing Casting — machined HT250 bearing housing detail 3

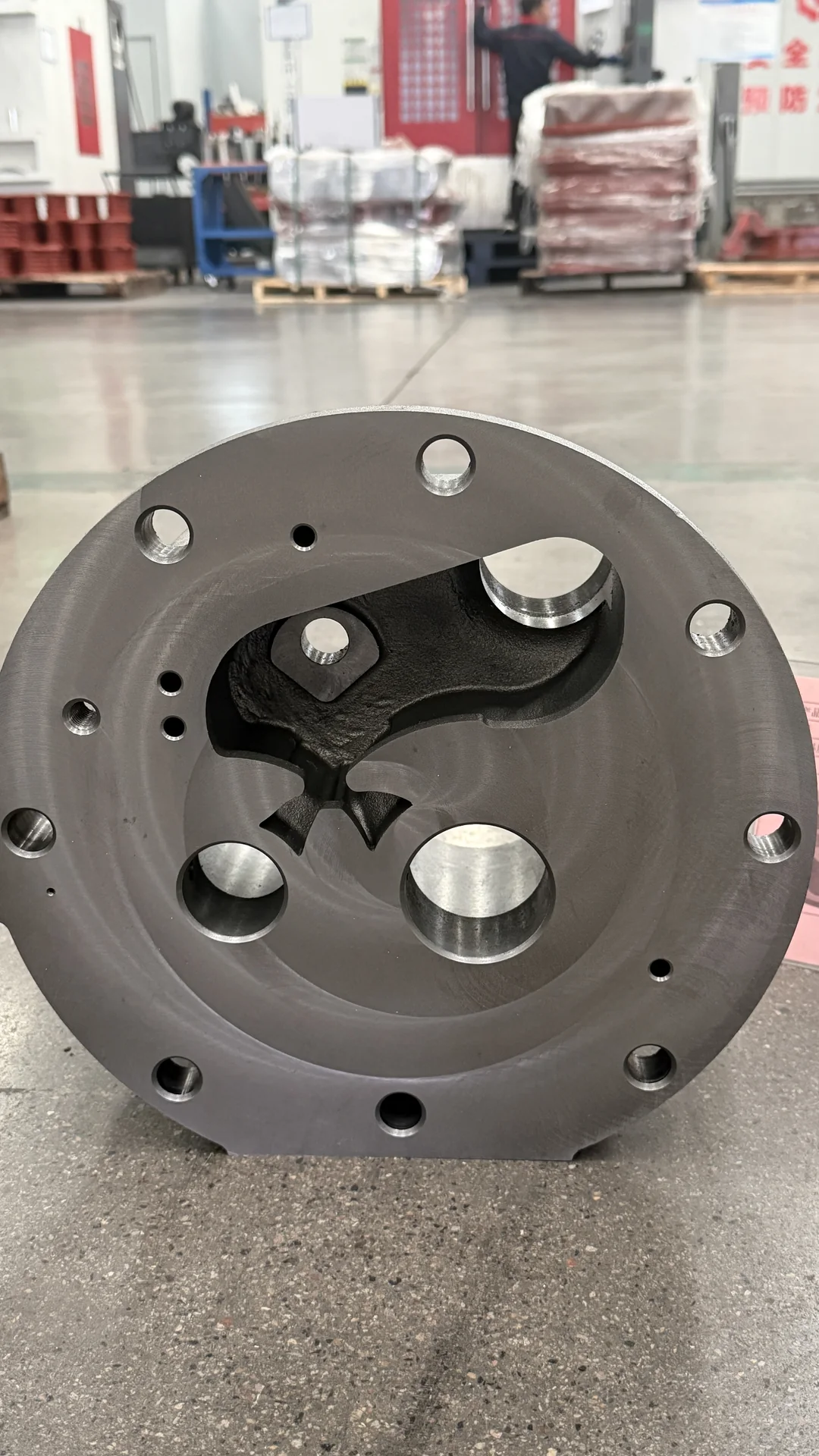

HT250 Bearing Housing Casting — machined HT250 bearing housing detail 4

HT250 Bearing Housing Casting — machined HT250 bearing housing detail 5

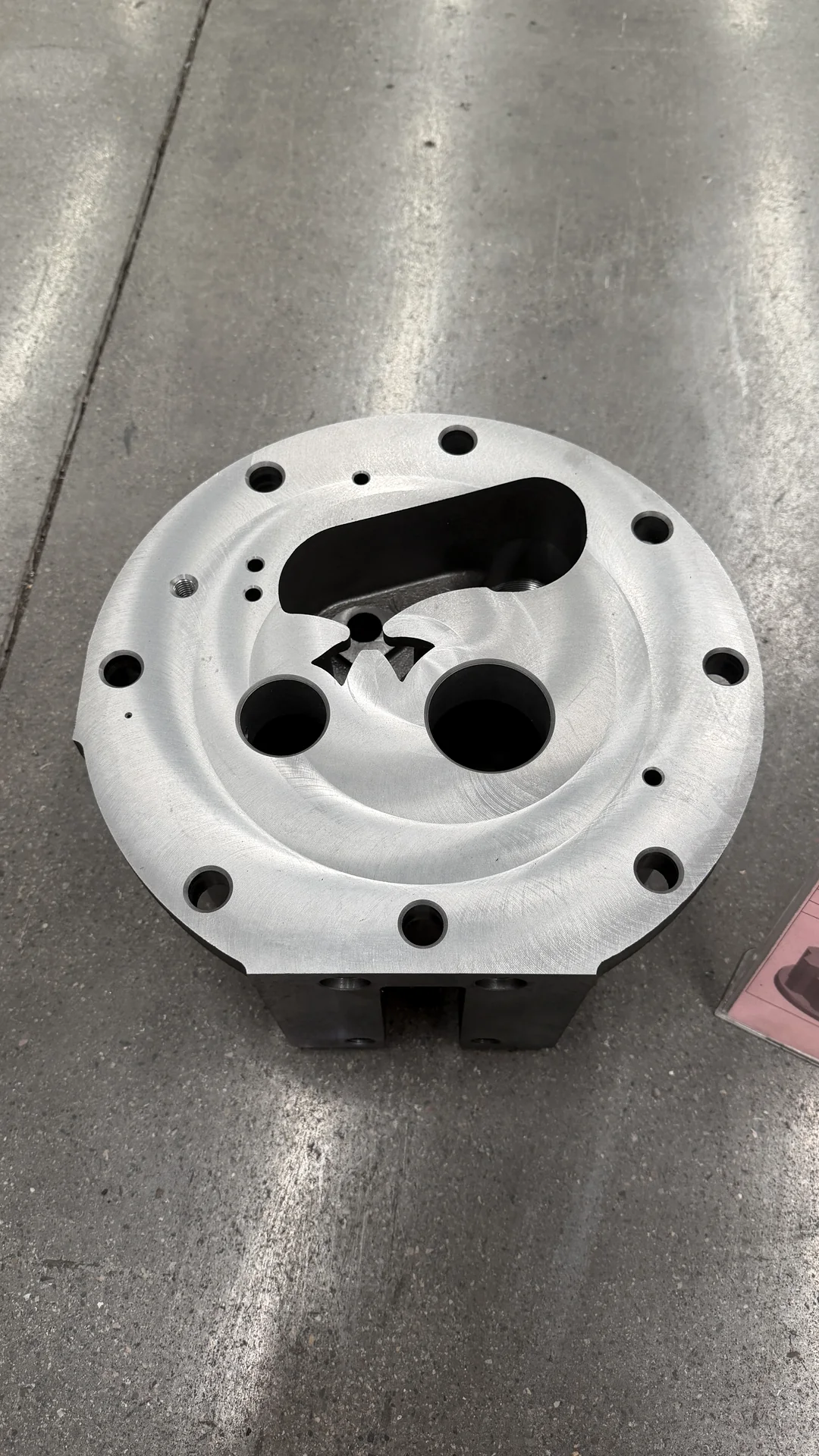

HT250 Bearing Housing Casting — machined HT250 bearing housing detail 6

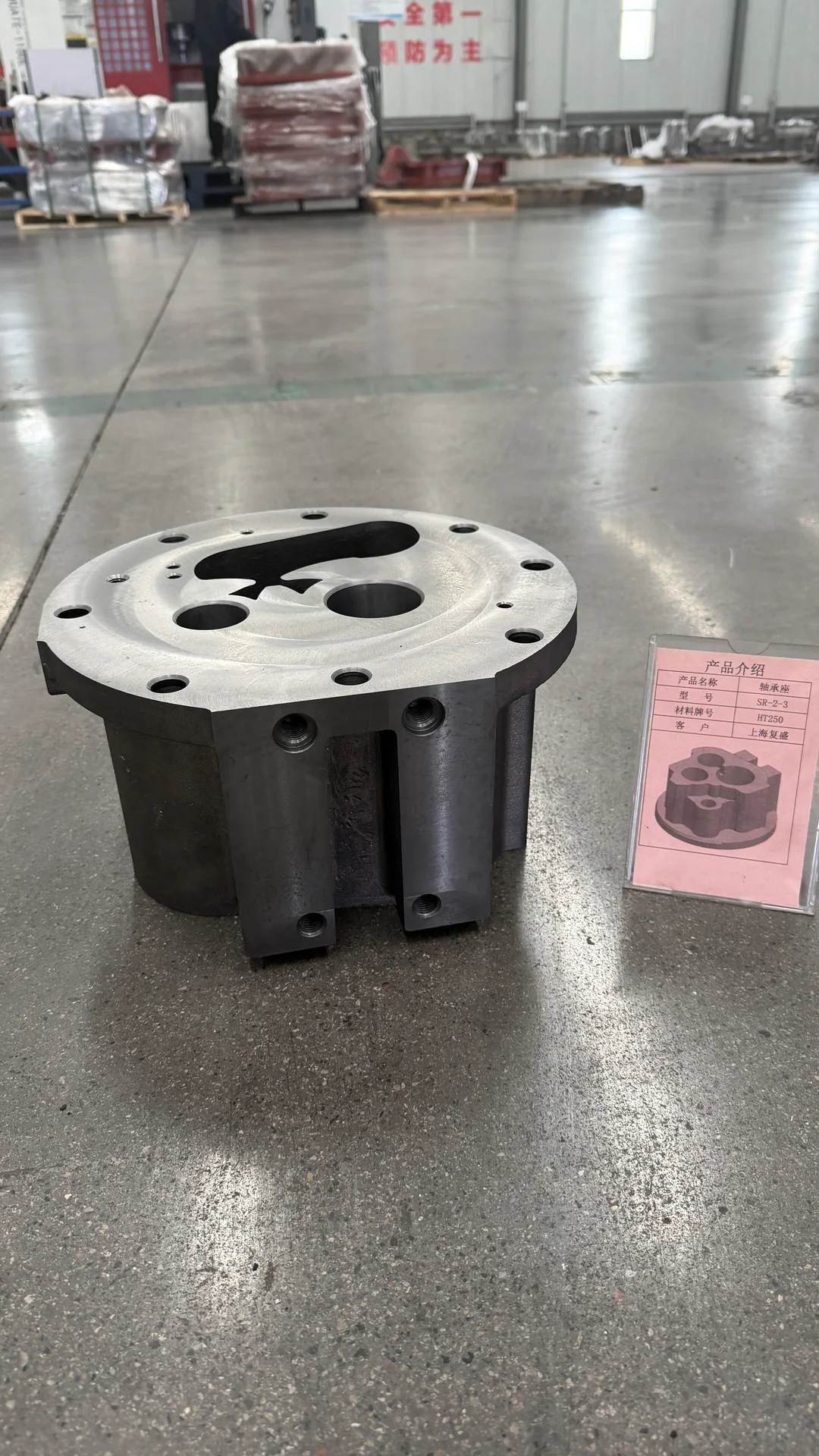

HT250 Bearing Housing Casting — machined HT250 bearing housing detail 7

HT250 Bearing Housing Casting — machined HT250 bearing housing detail 8

HT250 Bearing Housing Casting — machined HT250 bearing housing detail 9

HT250 BEARING HOUSING BEFORE MACHINING

See the same component in its actual pre-machining condition.

These photographs show the same HT250 bearing housing as an as-cast blank before machining, including cast surfaces, cavity outlines and batch production condition, providing a process comparison with the finished parts above. Final machining and inspection requirements are defined through drawing review.

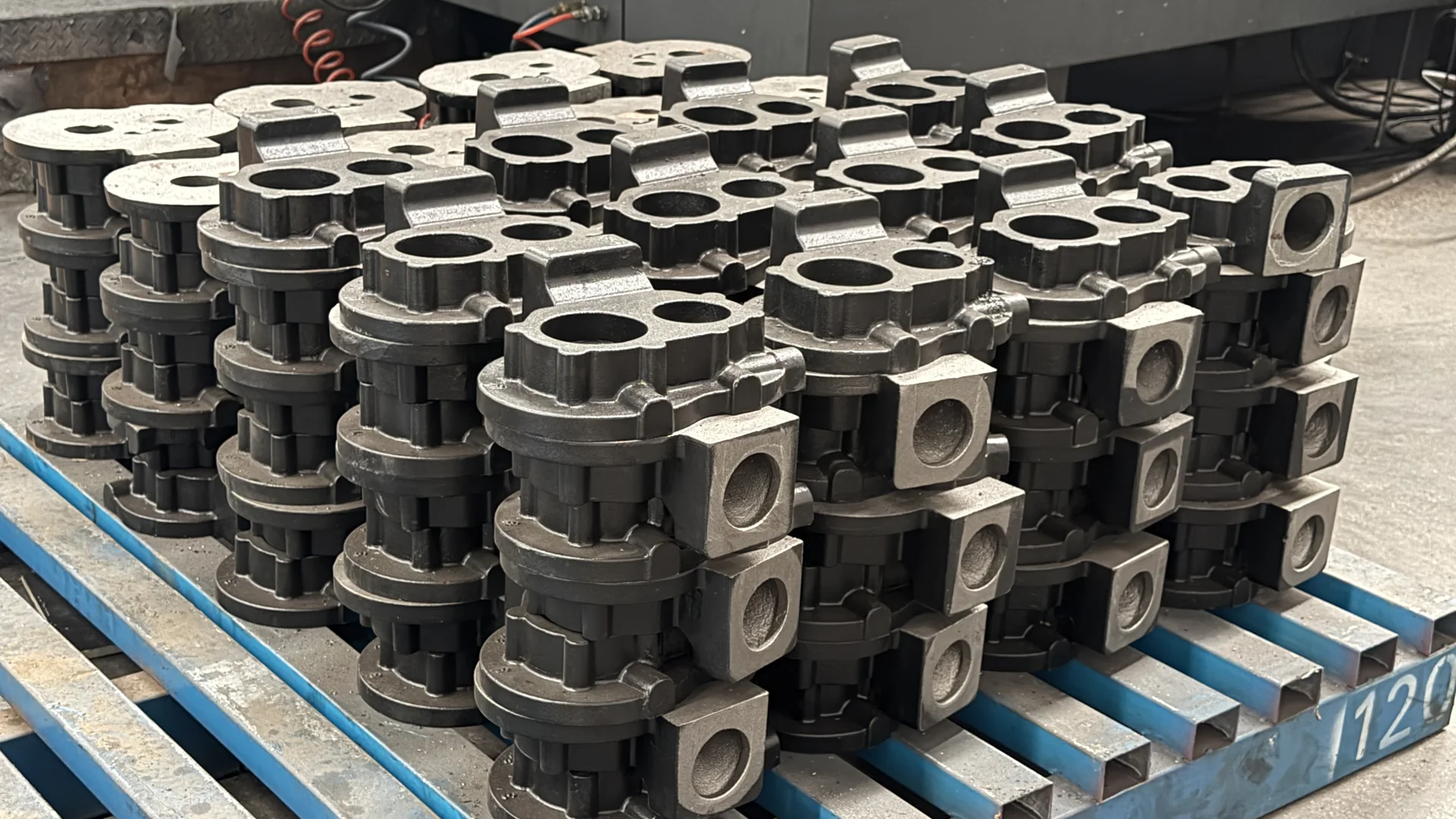

HT250 Bearing Housing Casting — HT250 bearing housing as-cast before machining 1

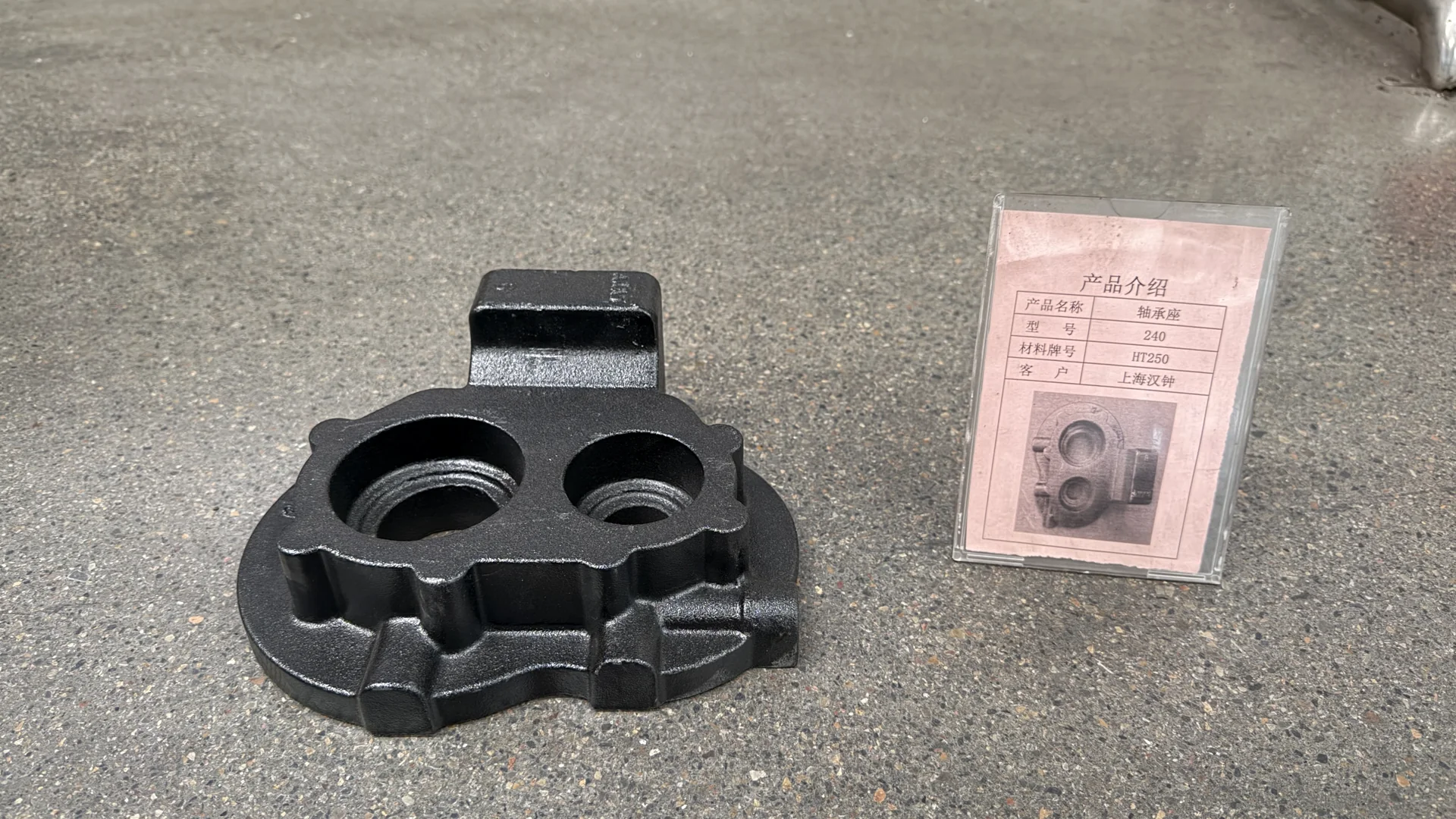

HT250 Bearing Housing Casting — HT250 bearing housing as-cast before machining 2

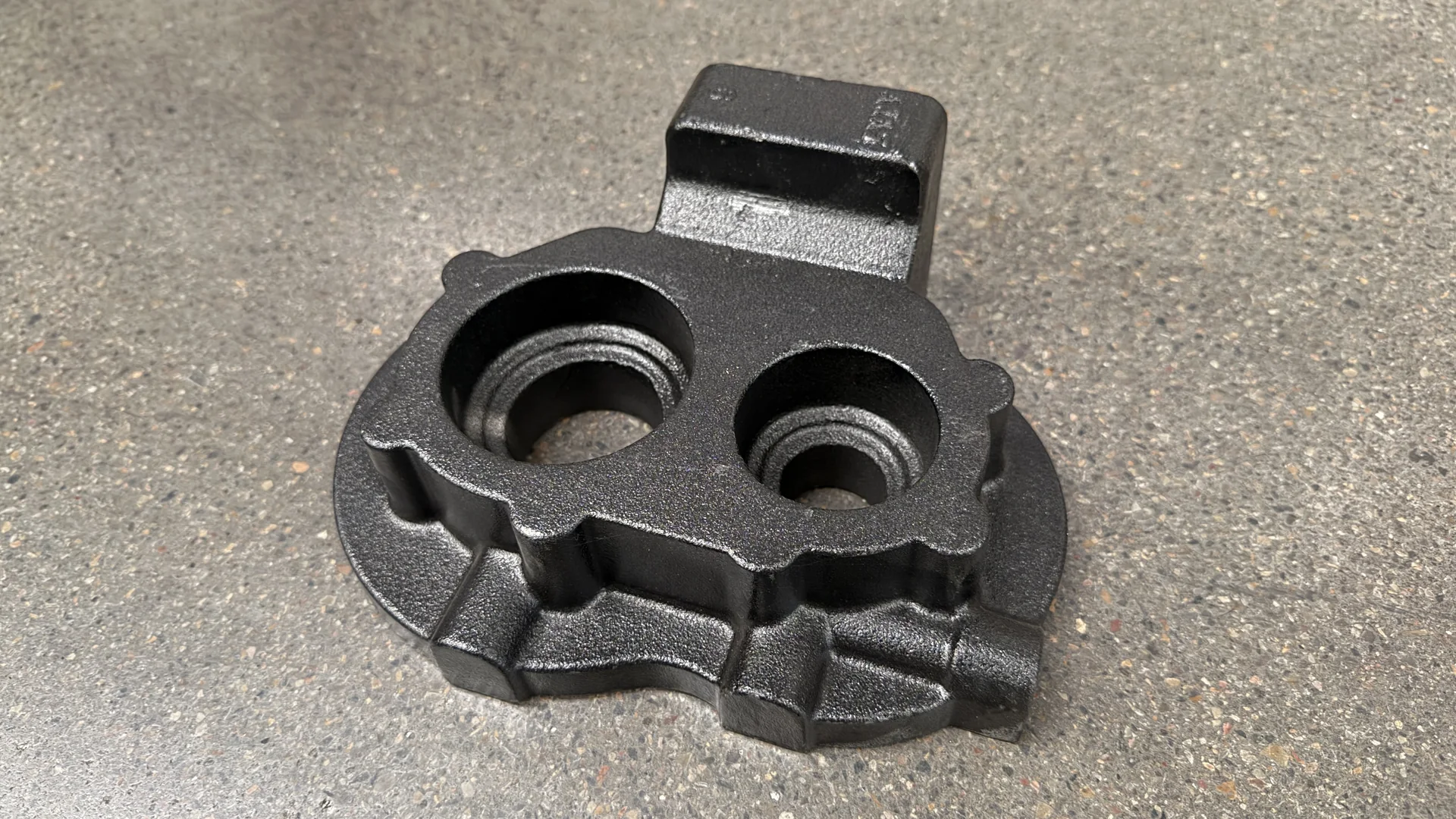

HT250 Bearing Housing Casting — HT250 bearing housing as-cast before machining 3

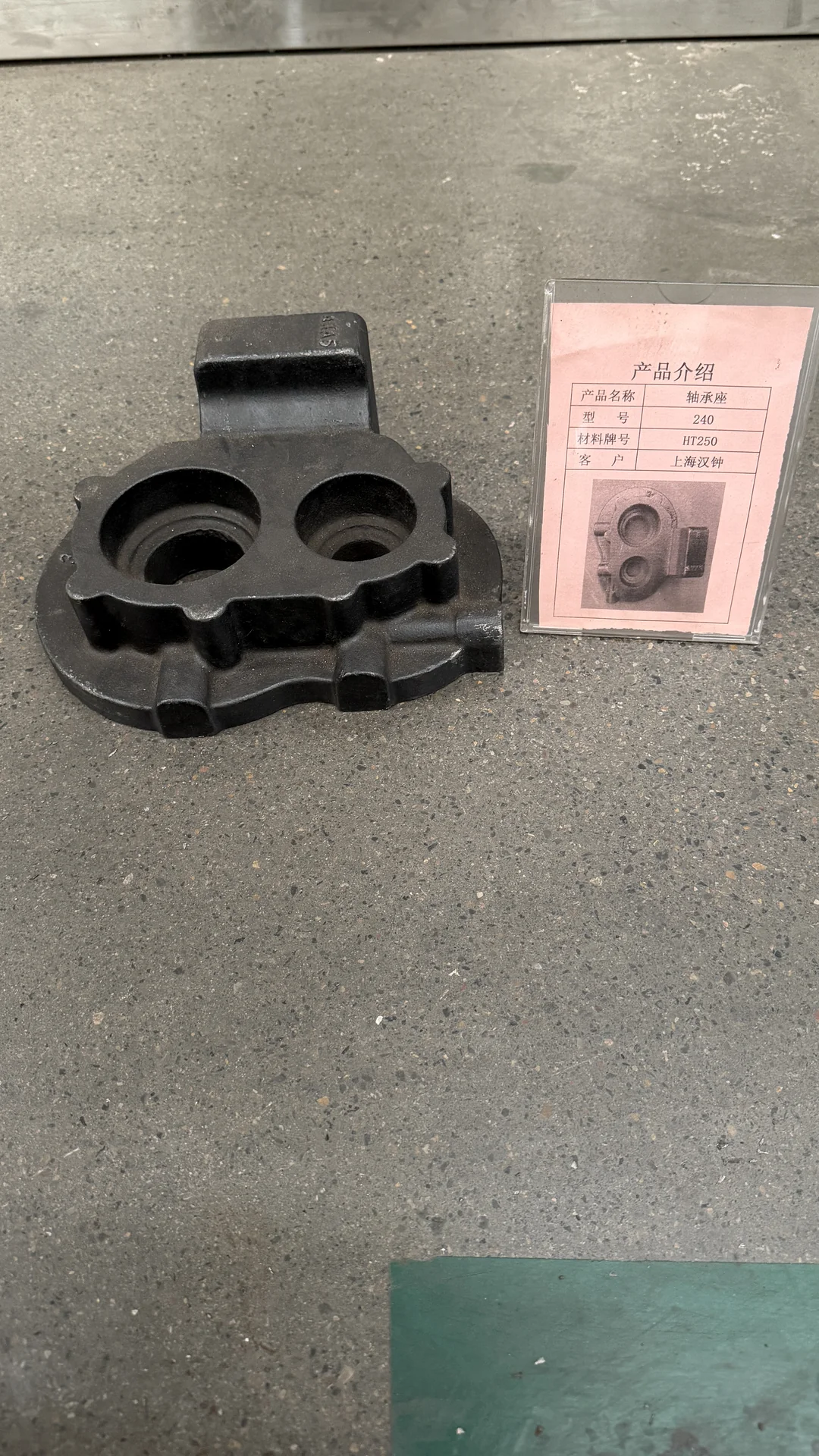

HT250 Bearing Housing Casting — HT250 bearing housing as-cast before machining 4

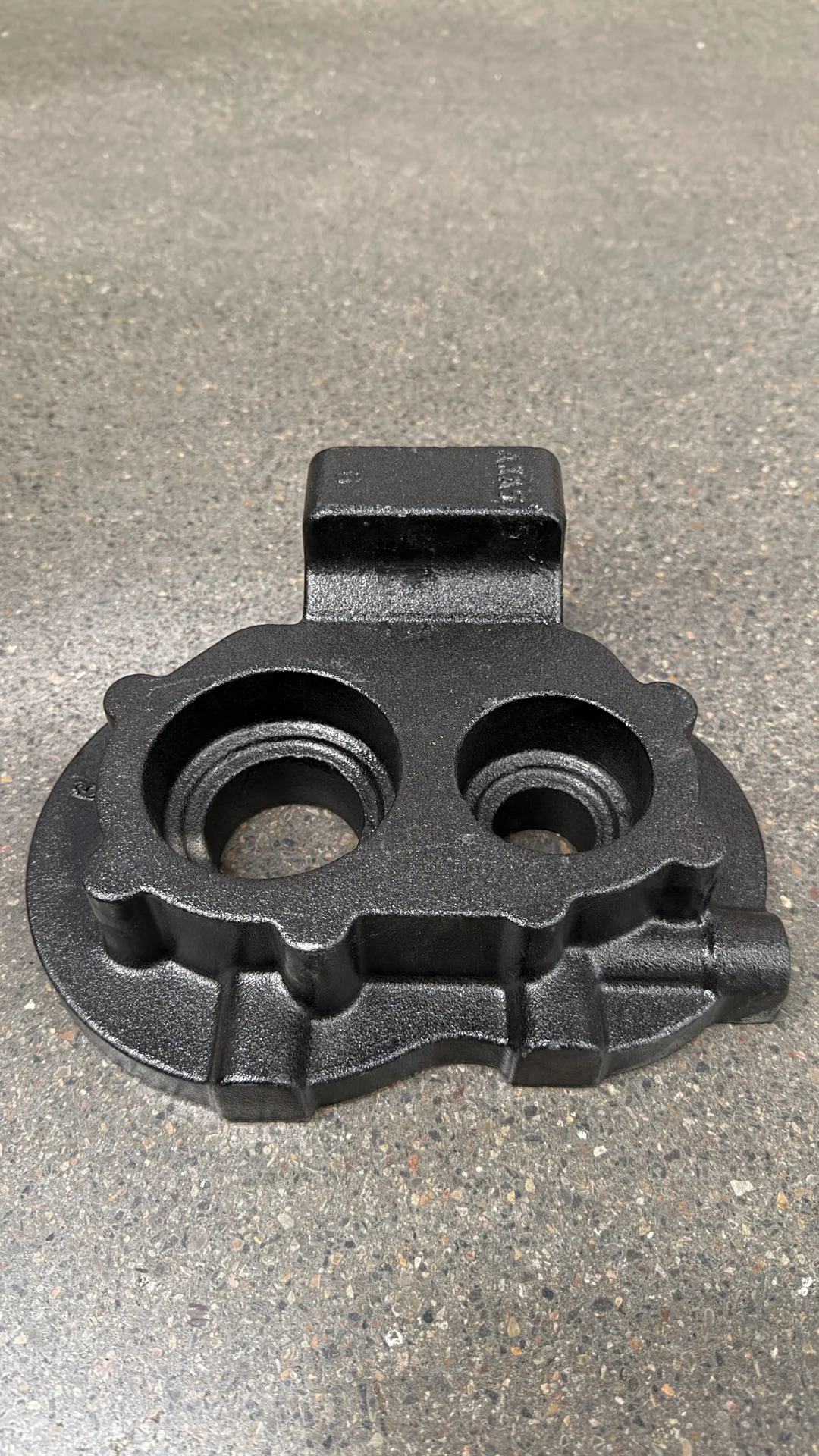

HT250 Bearing Housing Casting — HT250 bearing housing as-cast before machining 5

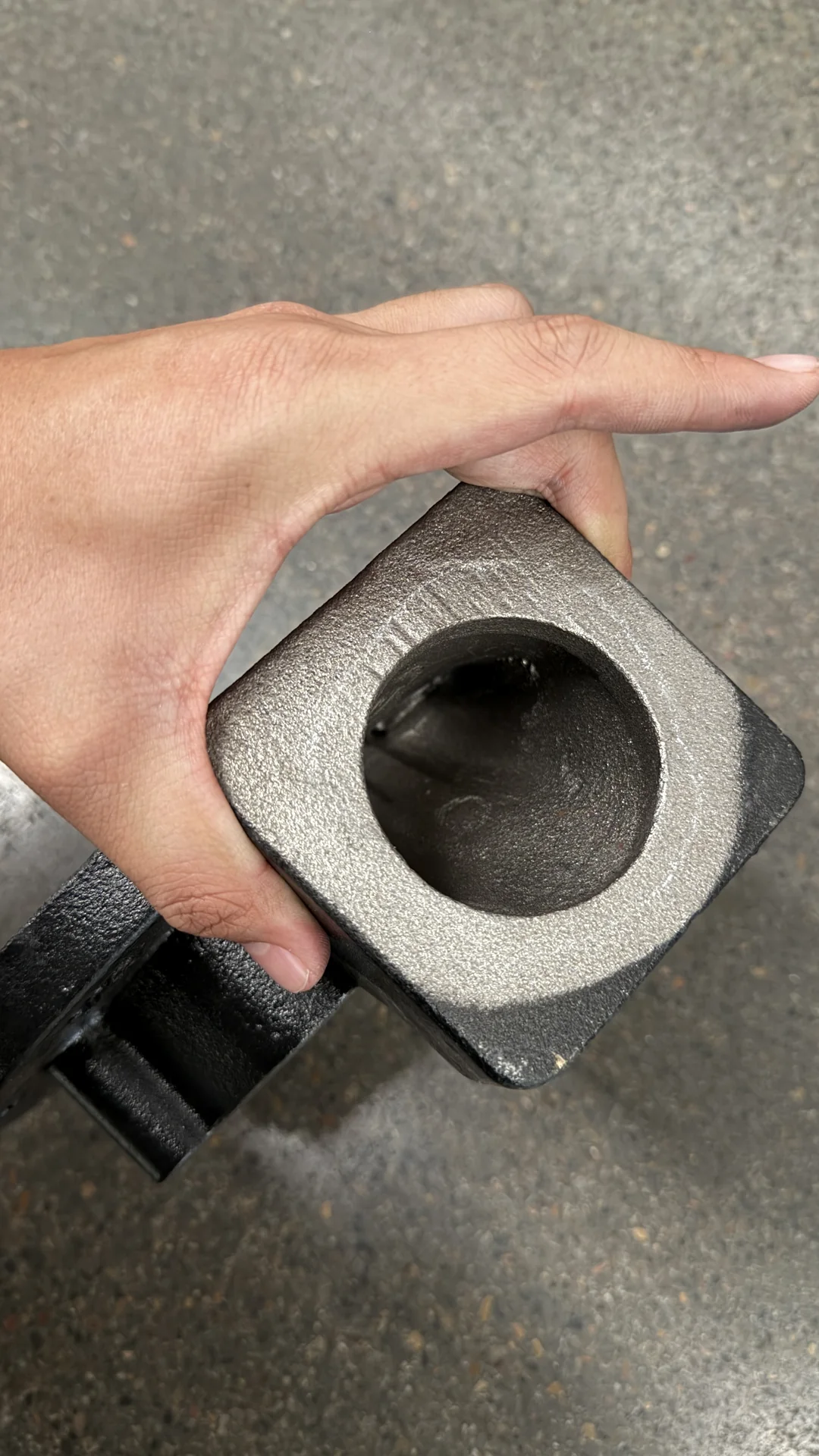

HT250 Bearing Housing Casting — HT250 bearing housing as-cast before machining 6

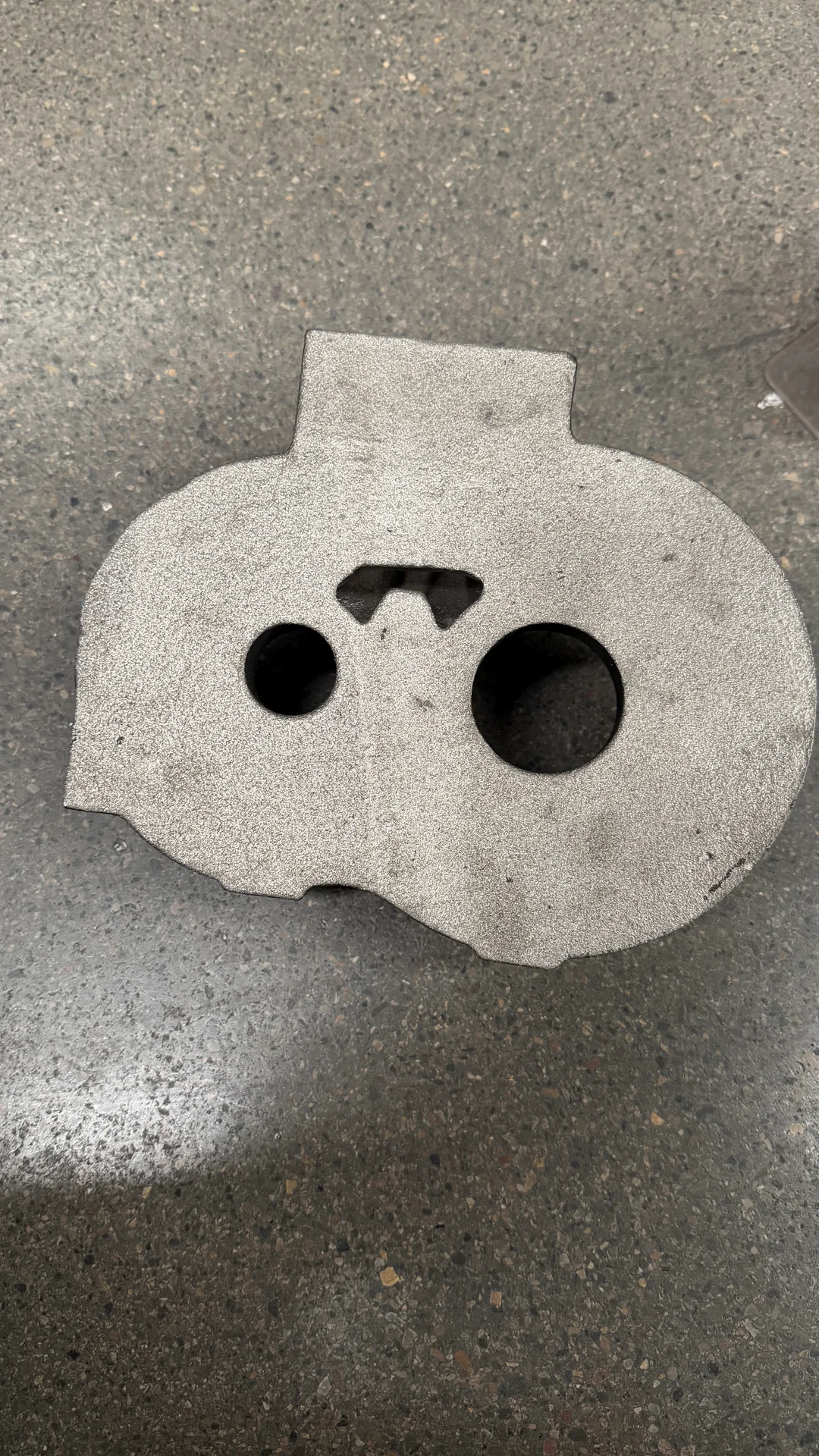

HT250 Bearing Housing Casting — HT250 bearing housing as-cast before machining 7

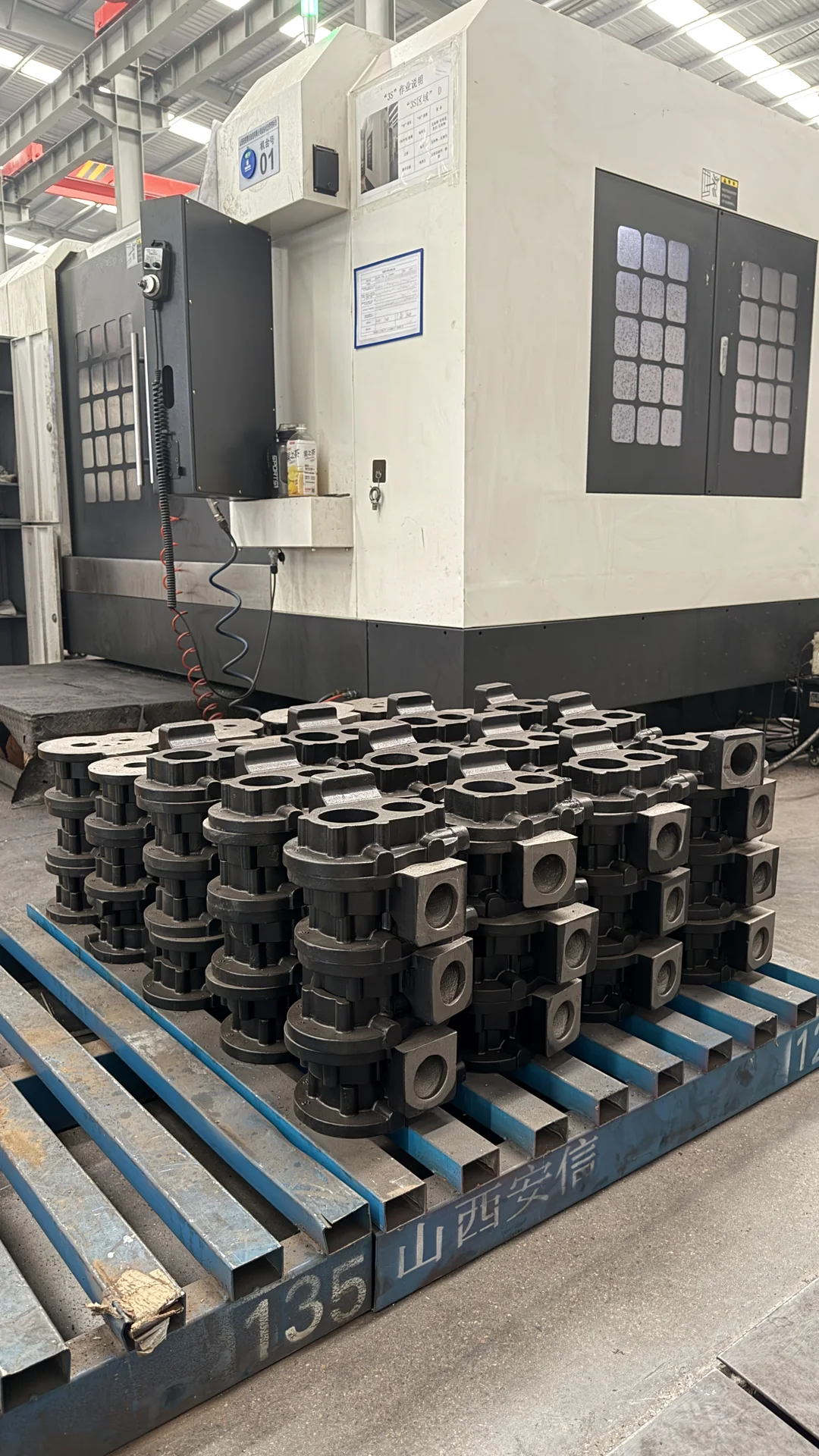

HT250 Bearing Housing Casting — HT250 bearing housing as-cast before machining 8

PROJECT REQUIREMENTS

Define the part.
Agree the details.

This page documents a representative HT250 gray iron bearing housing before and after machining. The photo series connects the as-cast blank and batch condition with the finished faces, internal bores, mounting holes, side interfaces and multi-cavity geometry.

For a new project, Anxin reviews the customer drawing, material standard, machining datums, bearing fits, geometric tolerances, surface finish, inspection plan and annual demand.

Supply condition may be agreed as an as-cast, rough-machined or finish-machined component after technical review. The photographs document representative parts and do not indicate stock availability or interchangeability with another manufacturer's components.

Prepare your casting RFQ ↗
