HT250 Four-Cylinder Refrigeration Compressor Body
Actual HT250 gray iron four-cylinder refrigeration compressor body casting with multiple openings, cooling ribs, mounting features and an internally visible ribbed cavity, manufactured to customer drawings.
| Material | HT250 |
|---|---|
| Process | Drawing-defined casting and machining scope |
| Specification | Customer drawing and agreed revision |
| Delivery condition | Casting / machining scope subject to review |
Have a similar part? Share your drawing for assessment.
From the as-cast exterior to the internal cavity and rib structure.

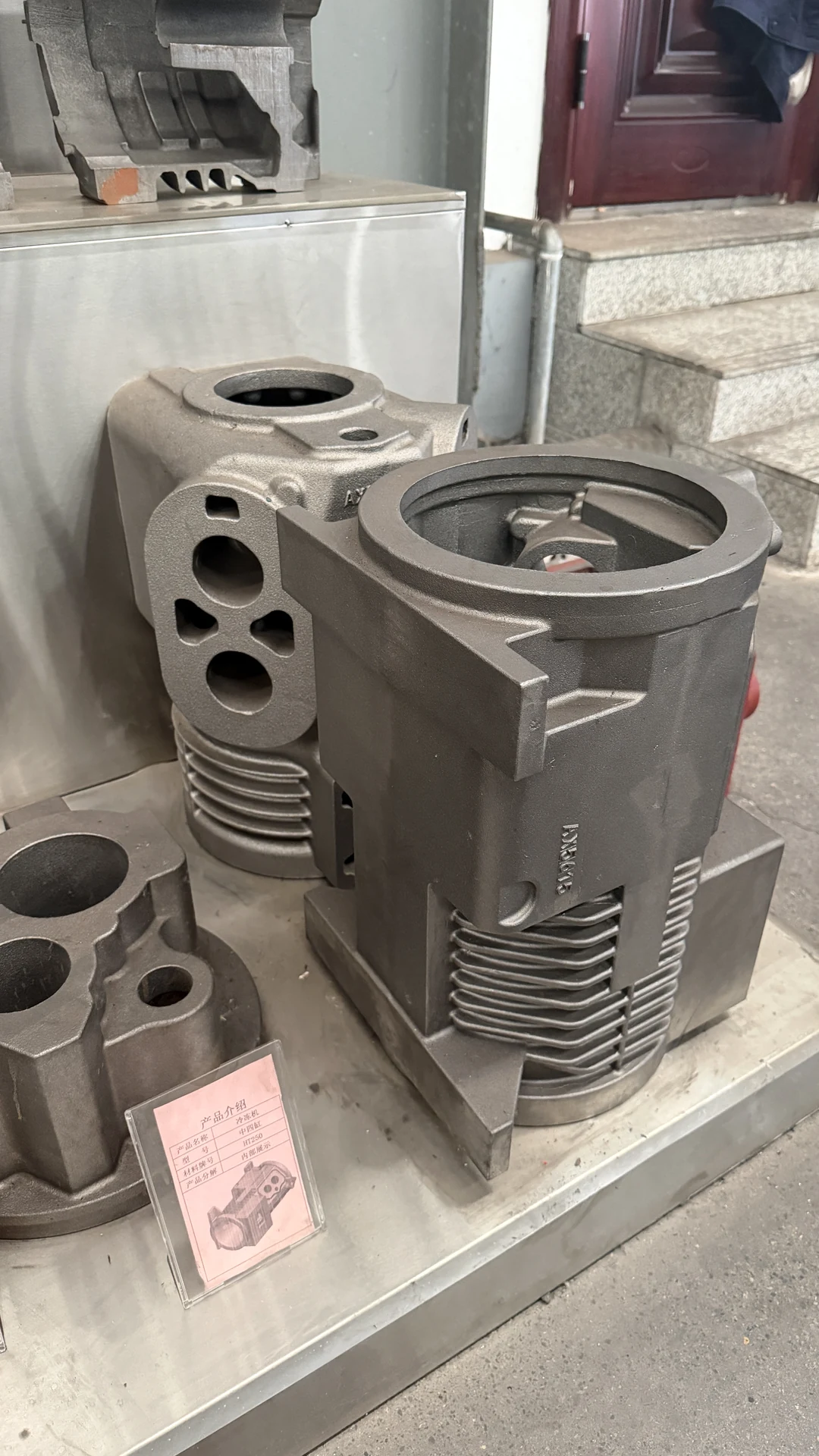

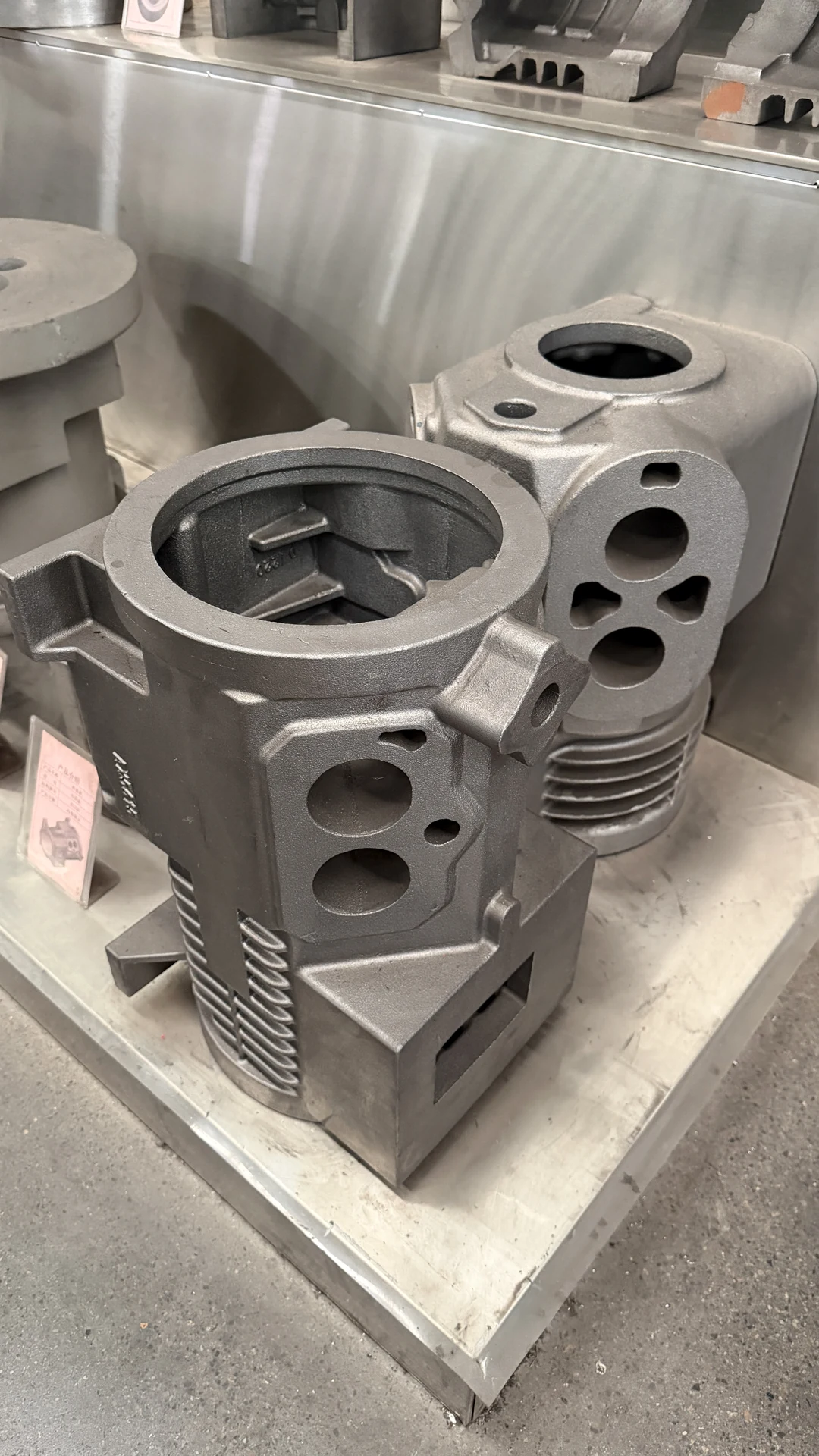

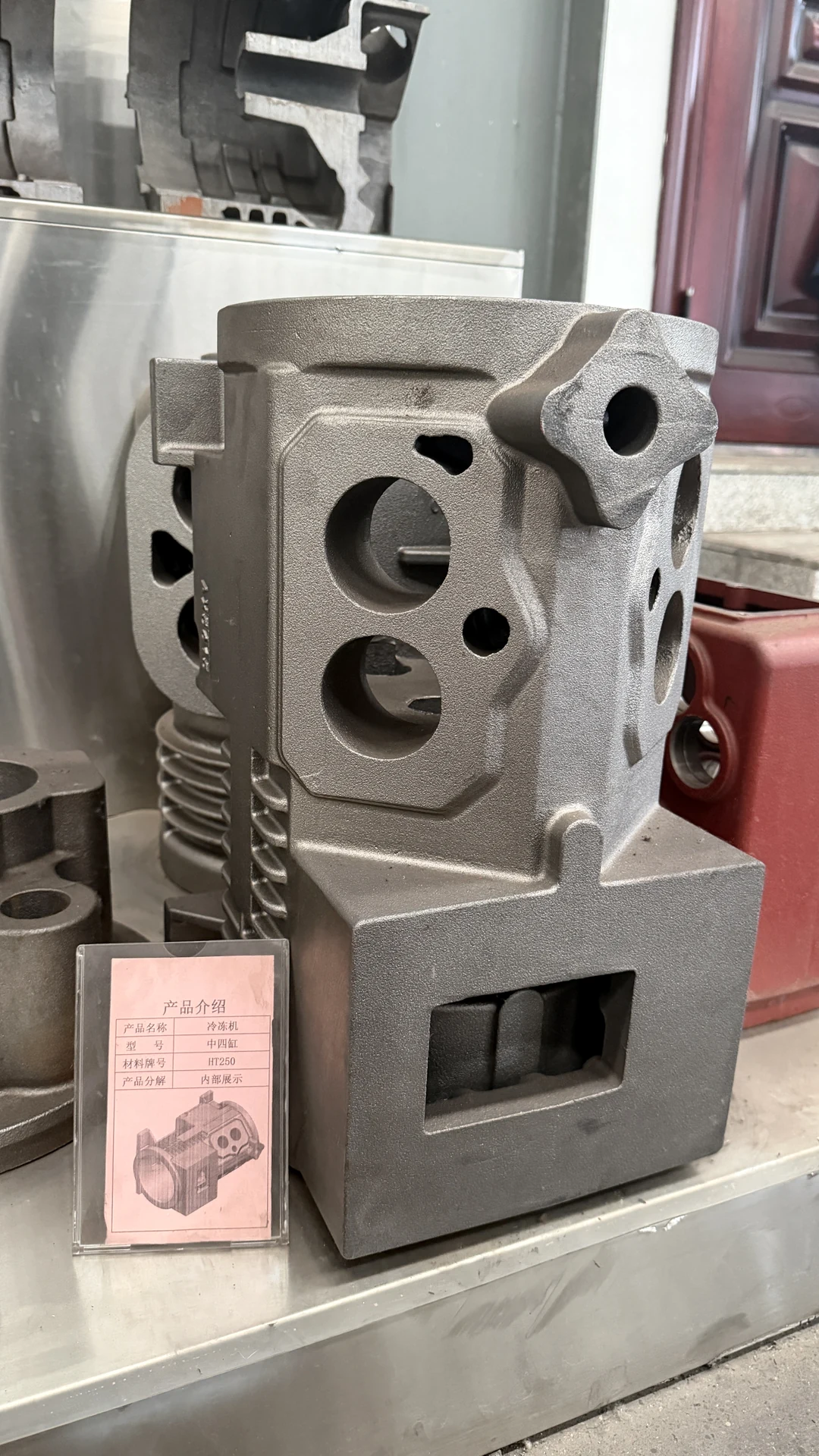

These photographs show an HT250-labelled four-cylinder refrigeration compressor body casting, including the overall form, multiple openings, cooling ribs, mounting features and internal cavity details. Model, dimensions, machining, cleanliness and inspection scope are defined from the customer drawing and technical review.
Define the part.
Agree the details.

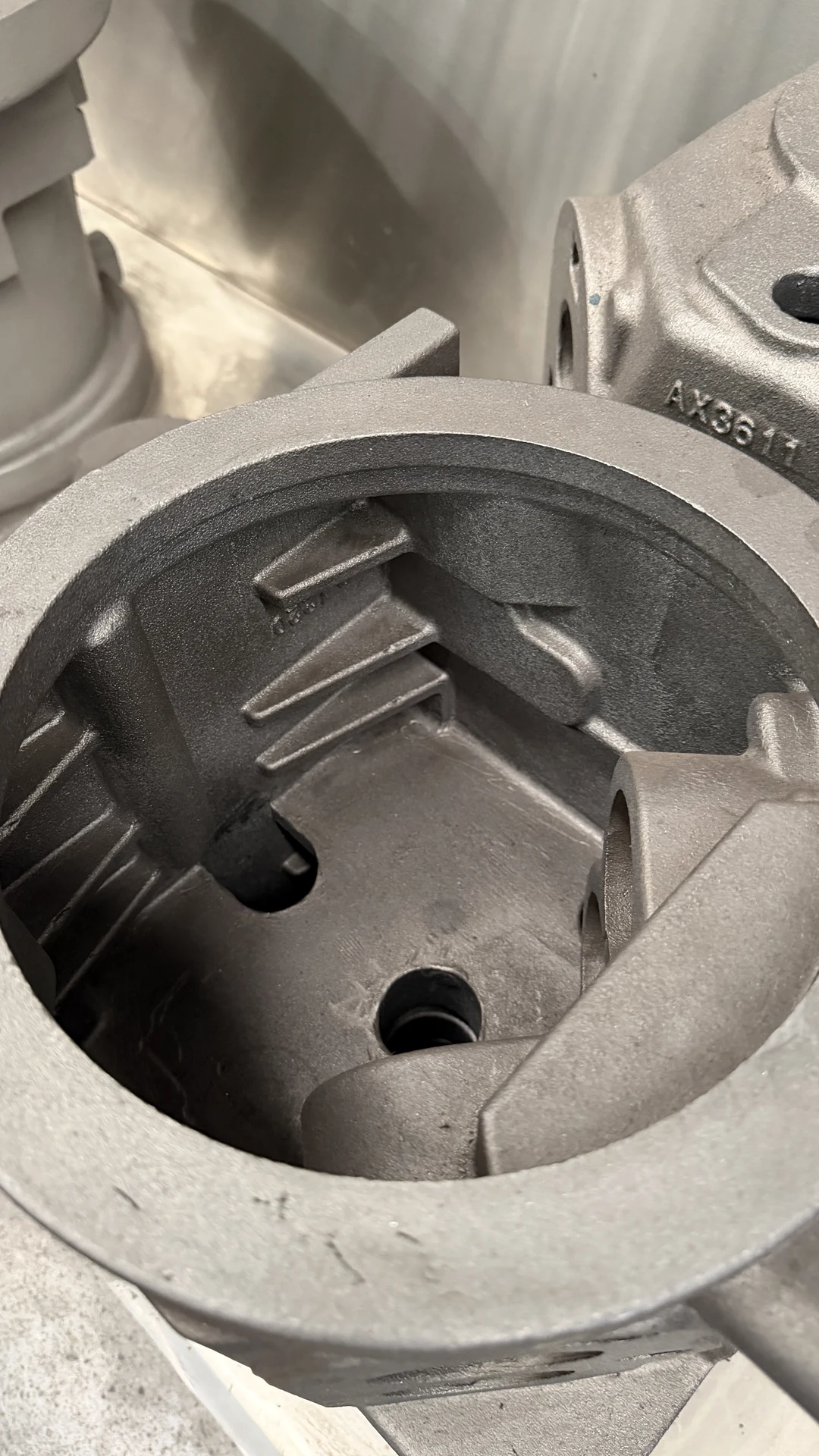

These actual photographs show a four-cylinder refrigeration compressor body casting identified as HT250, including the as-cast exterior, multiple openings, cooling ribs, mounting features and internal rib structure.
New projects are reviewed against the customer drawing. Please define the applicable material standard, machined interfaces, critical dimensions, cleanliness requirements, inspection scope and annual demand.
Supply condition may be discussed as-cast, rough-machined or finish-machined after technical review. The photographs document a representative component and do not indicate stock availability or interchangeability with another manufacturer’s part.
Prepare your casting RFQ ↗
